1. Material : Nickel-plated brass
**Dimensions and specifications are subject to change without notice.

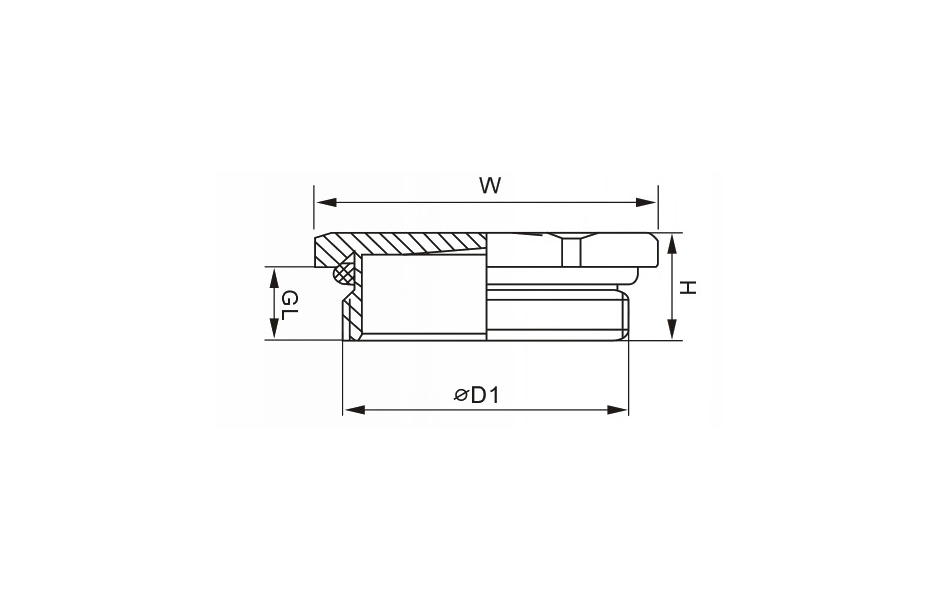

Model and Size
| Model |
Dimension |
File |
| Model |
Thread |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-DPM-P7 |
PG7 |
9 |
6 |
15 |
12.5 |
|
|
|
| BC-DPM-P9 |
PG9 |
10 |
7 |
18 |
15.2 |
|
|
|
| BC-DPM-P11 |
PG11 |
10.5 |
7 |
21 |
18.6 |
|
|
|
| BC-DPM-P13.5 |
PG13.5 |
10.5 |
7 |
23 |
20.4 |
|
|
|
| BC-DPM-P16 |
PG16 |
10.5 |
7 |
26 |
22.5 |
|
|
|
| BC-DPM-P21 |
PG21 |
11 |
7 |
32 |
28.3 |
|
|
|
| BC-DPM-P29 |
PG29 |
12 |
8 |
40 |
37 |
|
|
|
| BC-DPM-P36 |
PG36 |
14 |
9 |
50 |
47 |
|
|
|
| BC-DPM-P42 |
PG42 |
14 |
9 |
58 |
54 |
|
|
|
| BC-DPM-P48 |
PG48 |
16 |
10 |
65 |
59.3 |
|
|
|
