1. Material : Nickel-plated brass
2. Nut is optional.
**Dimensions and specifications are subject to change without notice.

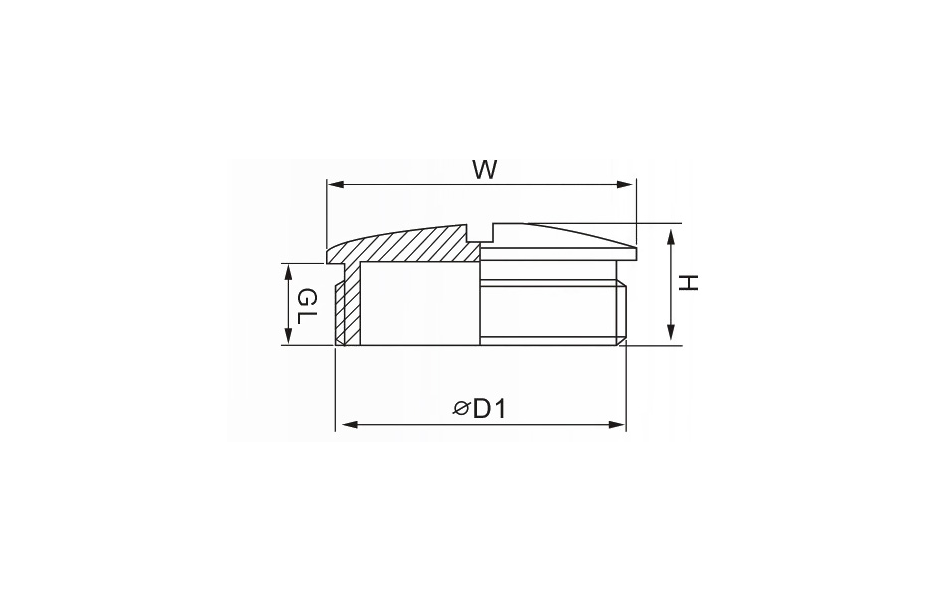

Model and Size
| Model |
Dimension |
File |
| Model |
Thread |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-MSP-PG7 |
PG7 |
9.7 |
7 |
14 |
12.2 |
|
|
|
| BC-MSP-PG9 |
PG9 |
9.7 |
7 |
18 |
14.8 |
|
|
|
| BC-MSP-PG11 |
PG11 |
10 |
7 |
20 |
18.2 |
|
|
|
| BC-MSP-PG13.5 |
PG13.5 |
10.5 |
7 |
22 |
20 |
|
|
|
| BC-MSP-PG16 |
PG16 |
10.5 |
7 |
24 |
22.2 |
|
|
|
| BC-MSP-PG19 |
PG19 |
11.5 |
7.5 |
26 |
23.7 |
|
|
|
| BC-MSP-PG21 |
PG21 |
11 |
7.8 |
30 |
27.9 |
|
|
|
| BC-MSP-PG25 |
PG25 |
11 |
8 |
32 |
29.6 |
|
|
|
| BC-MSP-PG29 |
PG29 |
13 |
9.5 |
40 |
36.5 |
|
|
|
| BC-MSP-PG36 |
PG36 |
14 |
9.5 |
50 |
46.6 |
|
|
|
| BC-MSP-PG42 |
PG42 |
15 |
9.5 |
57 |
53.5 |
|
|
|
| BC-MSP-PG48 |
PG48 |
15 |
10 |
64 |
59.1 |
|
|
|
