1. Material : Polyamide(PA)
2. Temperature range : -40℃ to 100℃
3. Color : Grey
4. Nut is optional.
**Dimensions and specifications are subject to change without notice.

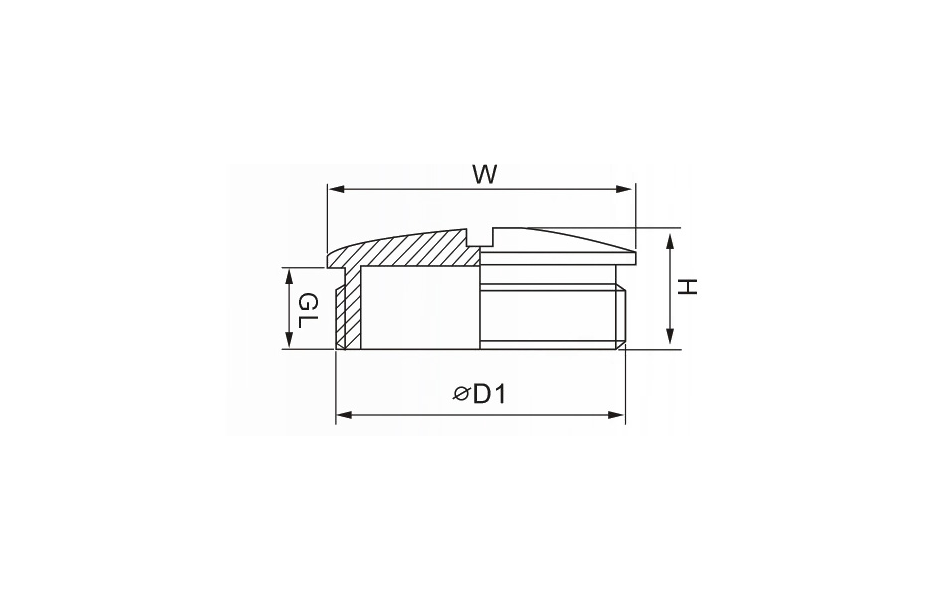

Model and Size
| Model |
Dimension |
File |
| Model |
Thread |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-SP-PG7 |
PG7 |
12.5 |
8.5 |
15 |
11.7 |
|
|
|
| BC-SP-PG9 |
PG9 |
13 |
8.5 |
19 |
15 |
|
|
|
| BC-SP-PG11 |
PG11 |
13 |
9 |
22 |
18.2 |
|
|
|
| BC-SP-PG13.5 |
PG13.5 |
14.5 |
11 |
25 |
20.4 |
|
|
|
| BC-SP-PG16 |
PG16 |
15 |
10.5 |
27 |
22.2 |
|
|
|
| BC-SP-PG21 |
PG21 |
14.5 |
11 |
33 |
28.3 |
|
|
|
| BC-SP-PG29 |
PG29 |
16 |
11.5 |
44 |
37 |
|
|
|
| BC-SP-PG36 |
PG36 |
18 |
13.5 |
55 |
46.7 |
|
|
|
| BC-SP-PG42 |
PG42 |
18.5 |
13.5 |
62 |
53.7 |
|
|
|
| BC-SP-PG48 |
PG48 |
19.5 |
14.5 |
68 |
59 |
|
|
|
