H Series

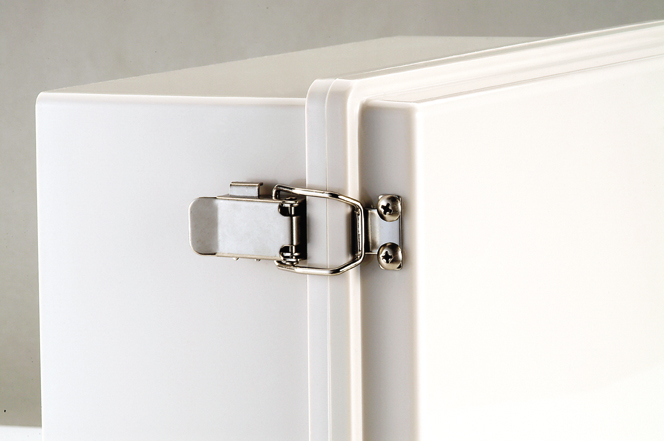

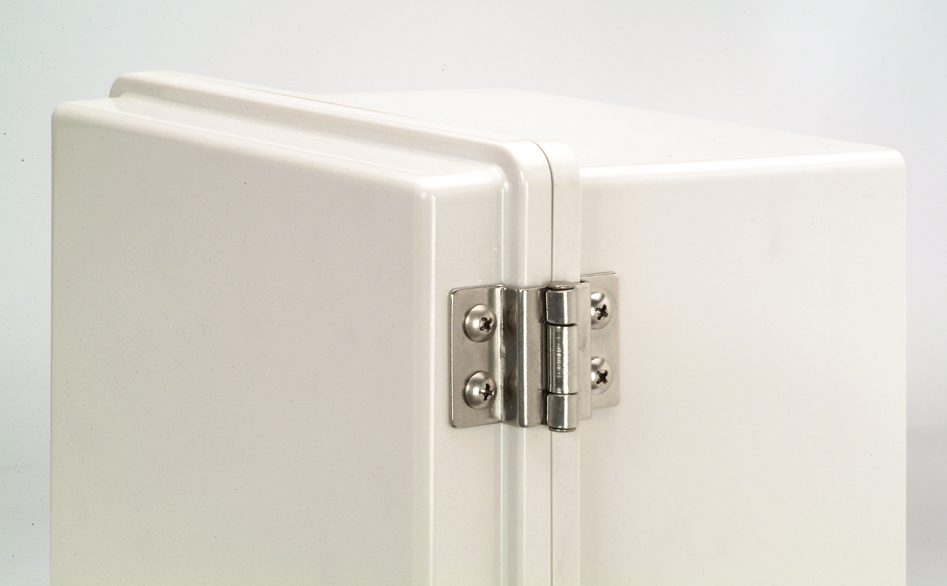

1. BOXCO's non-metallic waterproof enclosures are not easy to break even high frequency of opening and closing because of stainless steel hinge and draw latch.
2. It is wall mounting enclosure and makes perfect airtightness, preventing sink down when opening or closing by using suitable size of hinge and draw latch in accordance with increasing of enclosure size.
3. Our control boxes can be used in inferior or dangerous industrial field by using strong material and structure.




**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃ | Polycarbonate(PC) : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB

Model and Size

Size(included cover) Model Mounting Plate Dimension File
W×L×H
(mm)
W×L×H
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Steel
1.6mm
Plastic
3~4.5mm
W1 W2 W3 W4 L1 L2 L3 L4 H1 H2 H3 H4 M1
Plate
M2
Plate
DWG 3D PDF
200×300×150 7.87×11.81×5.91 BC-AGH-203015 BC-ATH-203015 BC-CGH-203015 BC-CTH-203015 2030 S 2030 P 200 174 154 128.5 300 274 252 226 150 136.2 30 120 166 266 Down
200×300×180 7.87×11.81×7.09 BC-AGH-203018 BC-ATH-203018 BC-CGH-203018 BC-CTH-203018 2030 S 2030 P 200 174 154 128.5 300 274 252 226 180 163.6 30 150 166 266 Down
225×275×120 8.86×10.83×4.72 BC-AGH-222712 BC-ATH-222712 BC-CGH-222712 BC-CTH-222712 2227 S 2227 P 225 201 183 160 276 252 234 210 120 103.6 30 90 190 242 Down
250×350×150 9.84×13.78×5.91 BC-AGH-253515 BC-ATH-253515 BC-CGH-253515 BC-CTH-253515 2535 S 2535 P 250 223 206 180 350 324 306 270 150 133.6 30 120 216 316 Down
275×225×120 10.83×8.86×4.72 BC-AGH-272212 BC-ATH-272212 BC-CGH-272212 BC-CTH-272212 2227 S 2227 P 276 252 234 210 225 201 183 160 120 103.6 30 90 190 242 Down
300×200×150 11.81×7.87×5.91 BC-AGH-302015 BC-ATH-302015 BC-CGH-302015 BC-CTH-302015 2030 S 2030 P 300 274 252 226 200 174 154 128.5 150 136.2 30 120 166 266 Down
300×200×180 11.81×7.87×7.09 BC-AGH-302018 BC-ATH-302018 BC-CGH-302018 BC-CTH-302018 2030 S 2030 P 300 275 252 226 200 175 152 129 180 163.6 30 150 166 266 Down
300×400×150 11.81×15.75×5.91 BC-AGH-304015 BC-ATH-304015 BC-CGH-304015 BC-CTH-304015 3040 S 3040 P 300 274 254 228.5 400 374 352 326 150 136.2 30 120 265 365 Down
300×400×180 11.81×15.75×7.09 BC-AGH-304018 BC-ATH-304018 BC-CGH-304018 BC-CTH-304018 3040 S 3040 P 300 274 252 228 400 375 352 324 180 163.5 30 150 265 365 Down
350×250×150 13.78×9.84×5.91 BC-AGH-352515 BC-ATH-352515 BC-CGH-352515 BC-CTH-352515 2535 S 2535 P 350 324 306 270 250 223 206 180 150 133.6 30 120 216 316 Down
350×450×160 13.78×17.72×6.30 BC-AGH-354516 BC-ATH-354516 BC-CGH-354516 BC-CTH-354516 3545 S 3545 P 350 311 300 274 450 417 400 364 160 143.1 30 130 306 407 Down
350×450×200 13.78×17.72×7.87 BC-AGH-354520 BC-ATH-354520 BC-CGH-354520 BC-CTH-354520 3545 S 3545 P 350 311 300 274 450 417 400 364 200 182.8 30 170 306 407 Down
400×300×150 15.75×11.81×5.91 BC-AGH-403015 BC-ATH-403015 BC-CGH-403015 BC-CTH-403015 3040 S 3040 P 400 374 352 326 300 274 254 228.5 150 136.2 30 120 265 365 Down
400×300×180 15.75×11.81×7.09 BC-AGH-403018 BC-ATH-403018 BC-CGH-403018 BC-CTH-403018 3040 S 3040 P 400 374 352 326 300 274 254 228.5 180 163.5 30 150 265 365 Down
400×500×200 15.75×19.69×7.87 BC-AGH-405020 BC-ATH-405020 BC-CGH-405020 BC-CTH-405020 4050 S 4050 P 400 362.5 352 328 500 468.5 452 428 203 186.4 33 170 358 458 Down
400×600×230 15.75×23.62×9.06 BC-AGH-406023 BC-ATH-406023 BC-CGH-406023 BC-CTH-406023 4060 S 4060 P 400 375 352 328 600 575 552 525 235 215.5 35 200 358 558 Down
450×350×160 17.72×13.78×6.30 BC-AGH-453516 BC-ATH-453516 BC-CGH-453516 BC-CTH-453516 3545 S 3545 P 450 417 400 364 350 311 300 274 160 143.1 30 130 306 407 Down
450×350×200 17.72×13.78×7.87 BC-AGH-453520 BC-ATH-453520 BC-CGH-453520 BC-CTH-453520 3545 S 3545 P 450 417 400 364 350 317 300 274 200 192.8 30 170 306 407 Down
500×400×200 19.69×15.75×7.87 BC-AGH-504020 BC-ATH-504020 BC-CGH-504020 BC-CTH-504020 4050 S 4050 P 500 468.5 452 428 400 362.5 352 328 203 186.4 33 170 358 458 Down
600×400×230 23.62×15.75×9.06 BC-AGH-604023 BC-ATH-604023 BC-CGH-604023 BC-CTH-604023 4060 S 4060 P 600 575 552 525 400 375 352 328 235 215.5 35 200 358 558 Down
