H Series

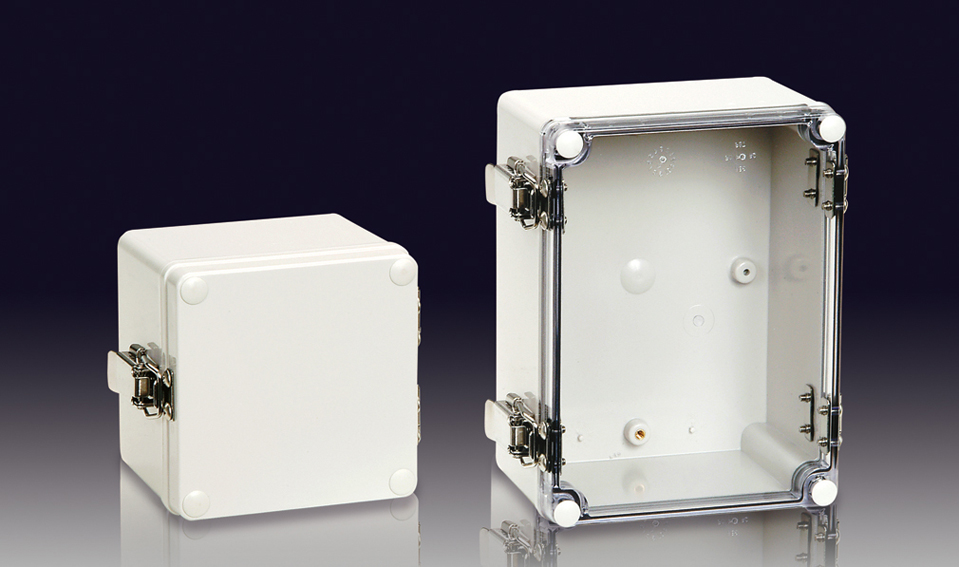

1. BOXCO's non-metallic enclosures are not easy to break even high frequency of opening and closing because of stainless steel hinge and
draw latch.
2. It is wall mounting enclosure and makes perfect airtightness, preventing sink down when opening or closing by using suitable size of hinge
and draw latch in accordance with increasing of enclosure size.

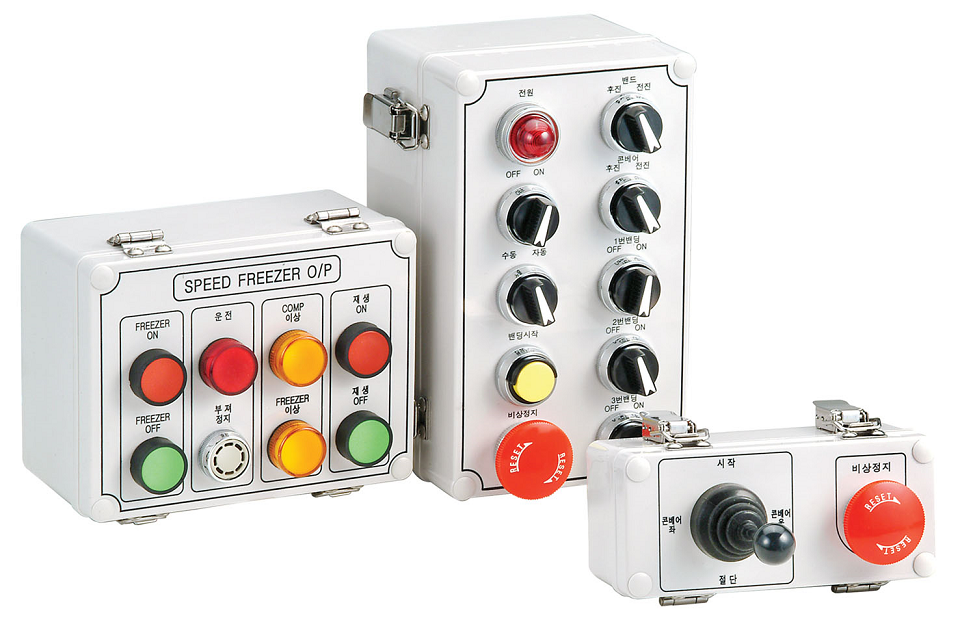

3. Our H series switch boxes have designed to easily and simply assemble hinge and latch by customers.



**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃ | Polycarbonate(PC) : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB

Model and Size

Size(included cover) Model Mounting Plate Dimension File
W×L×H
(mm)
W×L×H
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Steel
1.6mm
Plastic
3~4.5mm
W1 W2 W3 W4 L1 L2 L3 L4 H1 H2 H3 H4 M1
Plate
M2
Plate
DWG 3D PDF
80×110×70 3.15×4.33×2.76 BC-AGH-081107 BC-ATH-081107 BC-CGH-081107 BC-CTH-081107 0811 S 0811 P 80 70 62 40 110 100 92 80 70 57 20 50 64 94 Down
80×110×85 3.15×4.33×3.35 BC-AGH-081108 BC-ATH-081108 BC-CGH-081108 BC-CTH-081108 0811 S 0811 P 80 70 62 40 110 100 92 80 85 72 20 65 64 94 Down
80×110×100 3.15×4.33×3.94 BC-AGH-081110 BC-ATH-081110 BC-CGH-081110 BC-CTH-081110 0811 S 0811 P 80 70 62 40 110 100 92 80 100 87 35 65 64 94 Down
80×130×70 3.15×5.12×2.76 BC-AGH-081307 BC-ATH-081307 BC-CGH-081307 BC-CTH-081307 0813 S 0813 P 80 70 62 40 130 120 112 100 70 57 20 50 65 115 Down
80×130×85 3.15×5.12×3.35 BC-AGH-081308 BC-ATH-081308 BC-CGH-081308 BC-CTH-081308 0813 S 0813 P 80 70 62 40 130 120 112 100 85 72 35 50 65 115 Down
80×180×70 3.15×7.09×2.76 BC-AGH-081807 BC-ATH-081807 BC-CGH-081807 BC-CTH-081807 0818 S 0818 P 80 70 62 40 180 170 162 150 70 57 20 50 65 165 Down
80×180×85 3.15×7.09×3.35 BC-AGH-081808 BC-ATH-081808 BC-CGH-081808 BC-CTH-081808 0818 S 0818 P 80 70 62 40 180 170 162 150 85 72 35 50 65 165 Down
80×250×70 3.15×9.84×2.76 BC-AGH-082507 BC-ATH-082507 BC-CGH-082507 BC-CTH-082507 0825 S 0825 P 80 67 62 40 250 235 232 220 70 57 20 50 65 235 Down
80×250×85 3.15×9.84×3.35 BC-AGH-082508 BC-ATH-082508 BC-CGH-082508 BC-CTH-082508 0825 S 0825 P 80 67 62 40 250 235 232 220 85 72 35 50 65 235 Down
100×100×75 3.94×3.94×2.95 BC-AGH-101007 BC-ATH-101007 BC-CGH-101007 BC-CTH-101007 1010 S 1010 P 100 88 82 70 100 88 82 60 75 62 20 55 82 82 Down
100×100×100 3.94×3.94×3.94 BC-AGH-101010 BC-ATH-101010 BC-CGH-101010 BC-CTH-101010 1010 S 1010 P 100 88 82 70 100 88 82 60 100 87 20 80 82 82 Down
110×80×70 4.33×3.15×2.76 BC-AGH-110807 BC-ATH-110807 BC-CGH-110807 BC-CTH-110807 0811 S 0811 P 110 100 92 80 80 70 62 40 70 57 20 50 64 94 Down
110×80×85 4.33×3.15×3.35 BC-AGH-110808 BC-ATH-110808 BC-CGH-110808 BC-CTH-110808 0811 S 0811 P 110 100 92 80 80 70 62 40 85 72 20 65 64 94 Down
110×80×100 4.33×3.15×3.94 BC-AGH-110810 BC-ATH-110810 BC-CGH-110810 BC-CTH-110810 0811 S 0811 P 110 100 92 80 80 70 62 40 100 87 35 65 64 94 Down
125×125×75 4.92×4.92×2.95 BC-AGH-121207 BC-ATH-121207 BC-CGH-121207 BC-CTH-121207 1212 S 1212 P 125 113 105 70 125 113 105 90 75 60.8 20 55 107 107 Down
125×125×100 4.92×4.92×3.94 BC-AGH-121210 BC-ATH-121210 BC-CGH-121210 BC-CTH-121210 1212 S 1212 P 125 113 105 70 125 113 105 90 100 85.8 20 80 107 107 Down
125×175×75 4.92×6.89×2.95 BC-AGH-121707 BC-ATH-121707 BC-CGH-121707 BC-CTH-121707 1217 S 1217 P 127 117 109 90 175 165 157 140 75 61 25 50 113 161 Down
125×175×100 4.92×6.89×3.94 BC-AGH-121710 BC-ATH-121710 BC-CGH-121710 BC-CTH-121710 1217 S 1217 P 127 117 109 90 175 165 157 140 100 86 50 50 113 161 Down
130×80×70 5.12×3.15×2.76 BC-AGH-130807 BC-ATH-130807 BC-CGH-130807 BC-CTH-130807 0813 S 0813 P 130 120 112 100 80 70 62 40 70 57 20 50 65 115 Down
130×80×85 5.12×3.15×3.35 BC-AGH-130808 BC-ATH-130808 BC-CGH-130808 BC-CTH-130808 0813 S 0813 P 130 120 112 100 80 70 62 40 85 72 35 50 65 115 Down
140×230×95 5.51×9.06×3.74 BC-AGH-142309 BC-ATH-142309 BC-CGH-142309 BC-CTH-142309 1423 S 1423 P 140 128 122 100 230 218 212 190 95 81.8 20 75 122 212 Down
140×170×95 5.51×6.69×3.74 BC-AGH-141709 BC-ATH-141709 BC-CGH-141709 BC-CTH-141709 1417 S 1417 P 140 130 122 102.5 170 159 152 130 95 81.6 20 75 126 155 Down
150×150×75 5.91×5.91×2.95 BC-AGH-151507 BC-ATH-151507 BC-CGH-151507 BC-CTH-151507 1515 S 1515 P 150 138 132 110 150 138 132 110 75 62 20 55 123 123 Down
150×150×100 5.91×5.91×3.94 BC-AGH-151510 BC-ATH-151510 BC-CGH-151510 BC-CTH-151510 1515 S 1515 P 150 138 132 110 150 138 132 110 100 87 20 80 123 123
150×200×75 5.91×7.87×2.95 BC-AGH-152007 BC-ATH-152007 BC-CGH-152007 BC-CTH-152007 1520 S 1520 P 150 138 132 110 200 188 182 160 75 61.6 20 55 129 179 Down
150×200×100 5.91×7.87×3.94 BC-AGH-152010 BC-ATH-152010 BC-CGH-152010 BC-CTH-152010 1520 S 1520 P 150 138 132 110 200 188 182 160 100 86 20 80 129 179 Down
150×200×130 5.91×7.87×5.12 BC-AGH-152013 BC-ATH-152013 BC-CGH-152013 BC-CTH-152013 1520 S 1520 P 150 138 132 110 200 188 182 160 130 117 20 110 129 179 Down
150×200×160 5.91×7.87×6.30 BC-AGH-152016 BC-ATH-152016 BC-CGH-152016 BC-CTH-152016 1520 S 1520 P 150 138 132 110 200 188 182 160 160 146 50 110 129 179 Down
150×250×100 5.91×9.84×3.94 BC-AGH-152510 BC-ATH-152510 BC-CGH-152510 BC-CTH-152510 1525 S 1525 P 150 140 132 110 250 240 232 210 100 87 20 80 129 224 Down
150×250×130 5.91×9.84×5.12 BC-AGH-152513 BC-ATH-152513 BC-CGH-152513 BC-CTH-152513 1525 S 1525 P 150 140 132 110 250 240 232 210 130 117 50 80 129 224 Down
170×140×95 6.69×5.51×3.74 BC-AGH-171409 BC-ATH-171409 BC-CGH-171409 BC-CTH-171409 1417 S 1417 P 170 159 152 130 140 130 122 102.5 95 81.6 20 75 126 155 Down
175×125×75 6.89×4.92×2.95 BC-AGH-171207 BC-ATH-171207 BC-CGH-171207 BC-CTH-171207 1217 S 1217 P 175 165 157 140 125 118 109 90 75 61 25 50 113 161 Down
175×125×100 6.89×4.92×3.94 BC-AGH-171210 BC-ATH-171210 BC-CGH-171210 BC-CTH-171210 1217 S 1217 P 175 165 157 140 125 118 109 90 100 86 50 50 113 161 Down
180×80×70 7.09×3.15×2.76 BC-AGH-180807 BC-ATH-180807 BC-CGH-180807 BC-CTH-180807 0818 S 0818 P 180 170 162 150 80 70 62 40 70 57 20 50 65 165 Down
180×80×85 7.09×3.15×3.35 BC-AGH-081808 BC-ATH-081808 BC-CGH-081808 BC-CTH-081808 0818 S 0818 P 180 170 162 150 80 70 62 40 85 72 35 50 65 165 Down
200×150×75 7.87×5.91×2.95 BC-AGH-201507 BC-ATH-201507 BC-CGH-201507 BC-CTH-201507 1520 S 1520 P 200 188 182 160 150 138 132 110 75 61.6 20 55 129 179 Down
200×150×100 7.87×5.91×3.94 BC-AGH-201510 BC-ATH-201510 BC-CGH-201510 BC-CTH-201510 1520 S 1520 P 200 188 182 160 150 138 132 110 100 87 20 80 129 179 Down
200×150×130 7.87×5.91×5.12 BC-AGH-201513 BC-ATH-201513 BC-CGH-201513 BC-CTH-201513 1520 S 1520 P 200 188 182 160 150 138 132 110 130 117 20 110 129 179 Down
200×150×160 7.87×5.91×6.30 BC-AGH-201516 BC-ATH-201516 BC-CGH-201516 BC-CTH-201516 1520 S 1520 P 200 188 182 160 150 138 132 110 160 146 50 110 129 179 Down
200×200×100 7.87×7.87×3.94 BC-AGH-202010 BC-ATH-202010 BC-CGH-202010 BC-CTH-202010 2020 S 2020 P 200 188 182 160 200 188 182 120 100 86.8 20 80 179 179 Down
200×200×130 7.87×7.87×5.12 BC-AGH-202013 BC-ATH-202013 BC-CGH-202013 BC-CTH-202013 2020 S 2020 P 200 188 182 160 200 188 182 120 130 116.8 20 110 179 179 Down
200×200×160 7.87×7.87×6.30 BC-AGH-202016 BC-ATH-202016 BC-CGH-202016 BC-CTH-202016 2020 S 2020 P 200 188 182 160 200 188 182 120 160 147 20 140 179 179 Down
200×200×190 7.87×7.87×7.48 BC-AGH-202019 BC-ATH-202019 BC-CGH-202019 BC-CTH-202019 2020 S 2020 P 200 188 182 160 200 188 182 120 190 171 50 140 179 179 Down
210×230×100 8.27×9.06×3.94 BC-AGH-212310 BC-ATH-212310 BC-CGH-212310 BC-CTH-212310 2123 S 210 197 192 160 230 217 212 180 100 87 20 80 196.5 216 Down
230×140×95 9.06×5.51×3.74 BC-AGH-231409 BC-ATH-231409 BC-CGH-231409 BC-CTH-231409 1423 S 1423 P 230 219 212 190 140 130 122 100 95 81.6 20 75 122 212 Down
230×210×100 9.06×8.27×3.94 BC-AGH-232110 BC-ATH-232110 BC-CGH-232110 BC-CTH-232110 2123 S 230 217 212 180 210 197 192 180 100 87 20 80 196.5 216 Down
250×80×70 9.84×3.15×2.76 BC-AGH-250807 BC-ATH-250807 BC-CGH-250807 BC-CTH-250807 0825 S 0825 P 250 235 232 220 80 67 62 40 70 57 20 50 65 235 Down
250×80×85 9.84×3.15×3.35 BC-AGH-250808 BC-ATH-250808 BC-CGH-250808 BC-CTH-250808 0825 S 0825 P 250 235 232 220 80 67 62 40 85 72 35 50 65 235 Down
250×150×100 9.84×5.91×3.94 BC-AGH-251510 BC-ATH-251510 BC-CGH-251510 BC-CTH-251510 1525 S 1525 P 250 240 232 210 150 140 132 110 100 87 20 80 129 224 Down
250×150×130 9.84×5.91×5.12 BC-AGH-251513 BC-ATH-251513 BC-CGH-251513 BC-CTH-251513 1525 S 1525 P 250 240 232 210 150 140 132 110 130 117 50 80 129 224 Down
