R Series

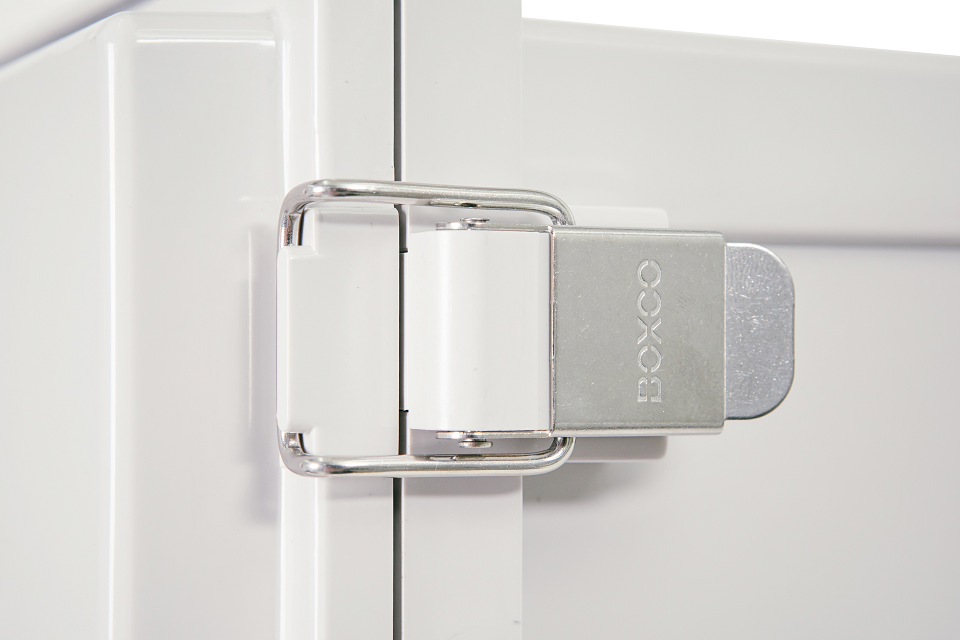

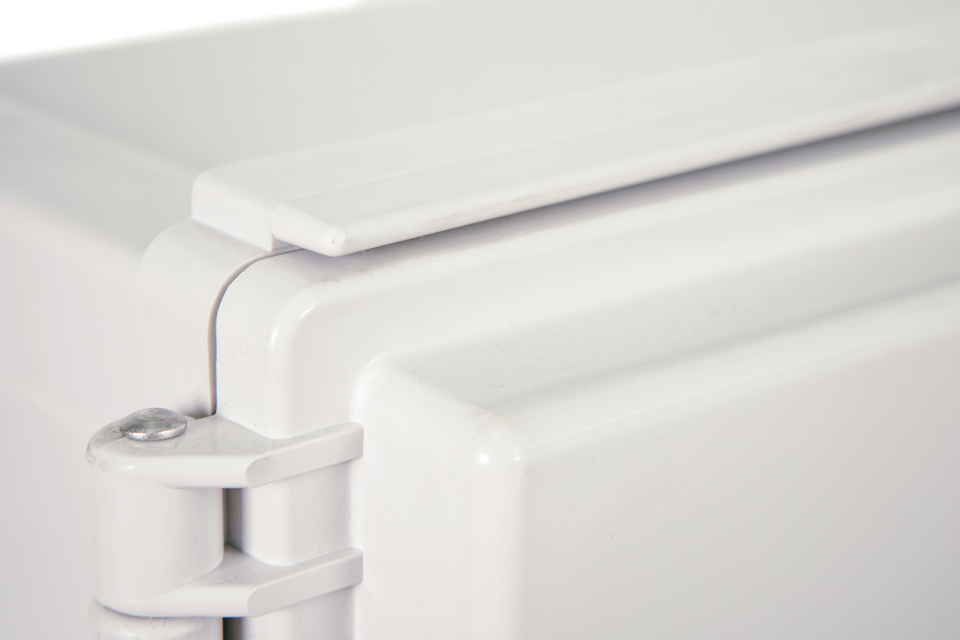

1. SUS hinge pin, SUS latch

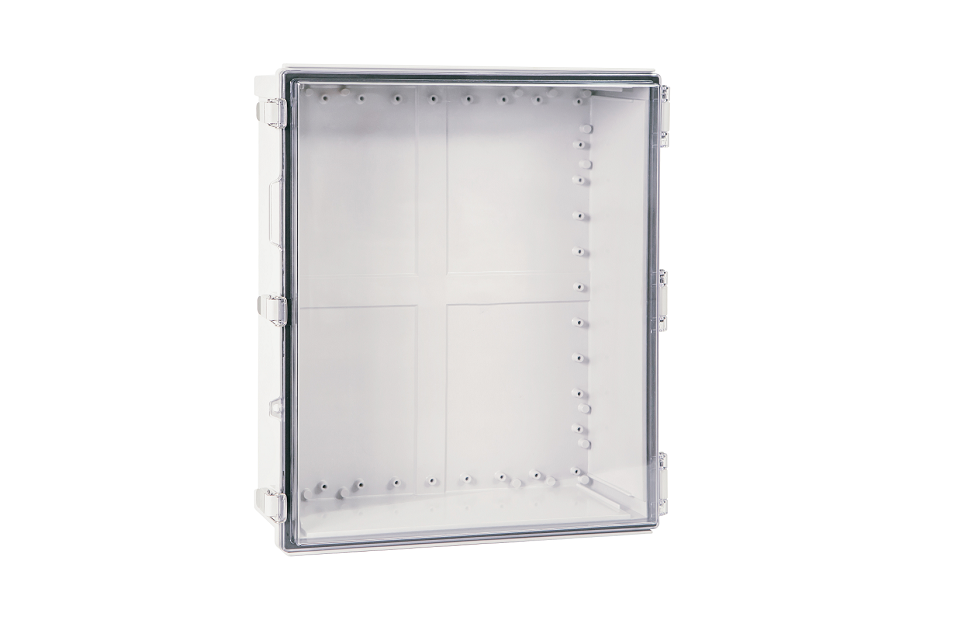

2. BOXCO plastic waterproof enclosure is easy to removable cover and base



**Dimensions and specifications are subject to change without notice.

Specification

Temperature range
ABS : - 40 ~ + 70℃ | PC : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB | PC : 94-V-0, 5VA, HB

Model and Size

Size(included cover) Model Mounting Plate Dimension File
W×L×H
(mm)
W×L×H
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Steel
1.6mm
Plastic
G type
Plastic
C type
W1 W2 W3 W4 L1 L2 L3 L4 H1 H2 H3 H4 M1
Plate
M2
Plate
DWG 3D PDF
150×150×95 5.91×5.91×3.74 BC-AGR-151510 BC-ATR-151510 1515 SQ 1515 G 150 131 114 99 150 131 144 99 95 81.5 25 70
160×210×105 6.30×8.27×4.13 BC-AGR-162111 BC-ATR-162111 1621 SQ 1621 G 160 188 120 110 210 138 170 160 105 91.5 25 80
160×210×135 6.30×8.27×5.31 BC-AGR-162114 BC-ATR-162114 1621 SQ 1621 G 160 188 120 110 210 138 170 160 135 121.5 25 110
160×260×105 6.30×10.24×4.13 BC-AGR-162611 BC-ATR-162611 1626 SQ 1626 G 160 234.5 120 110 260 133.5 220 210 105 92 25 80
160×260×135 6.30×10.24×5.31 BC-AGR-162614 BC-ATR-162614 1626 SQ 1626 G 160 234.5 120 110 260 133.5 220 210 135 122 25 110
210×210×135 8.27×8.27×5.31 BC-AGR-212114 BC-ATR-212114 2121 SQ 2121 G 210 185 170 160 210 185 170 160 135 120 25 110
190×280×100 7.48×11.02×3.94 BC-AGR-192810 BC-ATR-192810 1928 SQ 1928 G 190 252.5 144 130 280 163.5 235 220 100 83 30 70
200×300×130 7.87×11.81×5.12 BC-AGR-203013 BC-ATR-203013 2030 SQ 2030 G 2030 C 200 272.5 155 140 300 173.5 255 240 130 113 30 100
200×300×160 7.87×11.81×6.30 BC-AGR-203016 BC-ATR-203016 2030 SQ 2030 G 2030 C 200 272.5 155 140 300 173.5 255 240 160 143 30 130
200×300×180 7.87×11.81×7.09 BC-AGR-203018 BC-ATR-203018 2030 SQ 2030 G 2030 C 200 272.5 155 140 300 173.5 225 240 180 163 30 150
200×300×210 7.87×11.81×8.27 BC-AGR-203021 BC-ATR-203021 2030 SQ 2030 G 2030 C 200 272.5 155 140 300 173.5 225 240 210 193 30 180
250×350×160 9.84×13.78×6.3 BC-AGR-253516 BC-ATR-253516 2535 SQ 2535 G 2535 C 250 329 206 190 350 229 306 290 160 143 30 130
250×350×180 9.84×13.78×7.09 BC-AGR-253518 BC-ATR-253518 2535 SQ 2535 G 2535 C 250 329 206 190 350 229 306 290 180 163 30 150
300×300×160 11.81×11.81×6.3 BC-AGR-303016 BC-ATR-303016 3030 SQ 3030 G 3030 C 300 275 256 240 300 275 256 240 160 142.5 30 130
300×300×180 11.81×11.81×7.09 BC-AGR-303018 BC-ATR-303018 3030 SQ 3030 G 3030 C 300 275 256 240 300 275 256 240 180 162.5 30 150
300×400×160 11.81×15.75×6.30 BC-AGR-304016 BC-ATR-304016 3040 SQ 3040 G 3040 C 300 380 256 240 400 280 356 340 160 143 30 130
300×400×180 11.81×15.75×7.09 BC-AGR-304018 BC-ATR-304018 3040 SQ 3040 G 3040 C 300 380 256 240 400 280 356 340 180 163 30 150
350×450×170 13.78×17.72×6.69 BC-AGR-354517 BC-ATR-354517 3545 SQ 3545 G 350 317 298 280 450 417 398 380 170 152 40 130
350×450×210 13.78×17.72×8.27 BC-AGR-354521 BC-ATR-354521 3545 SQ 3545 G 350 317 298 280 450 417 398 380 210 192 40 170
400×500×170 15.75×19.69×6.69 BC-AGR-405017 BC-ATR-405017 4050 SQ 4050 G 400 367 348 330 500 467 448 430 170 152 40 130
400×500×210 15.75×19.69×8.27 BC-AGR-405021 BC-ATR-405021 4050 SQ 4050 G 400 367 348 330 500 467 448 430 210 192 40 170
510×610×160 20.08×24.02×6.23 BC-AGR-516116 BC-ATR-516116 5161 SQ 5161 C 510 470 444 424 610 570 544 524 160 142 35 125
510×610×200 20.08×24.02×7.87 BC-AGR-516120 BC-ATR-516120 5161 SQ 5161 C 510 470 444 424 610 570 544 524 200 182 35 165
510×710×200 20.08×27.95×7.87 BC-AGR-517120 BC-ATR-517120 5171 SQ 5171 C 510 470 444 424 710 670 644 624 200 183 35 165
610×710×200 24.02×27.95×7.87 BC-AGR-617120 BC-ATR-617120 6171 SQ 6171 C 610 570 544 524 710 670 644 624 200 181 35 165
610×810×260 24.02×31.89×10.24 BC-AGR-618126 BC-ATR-618126 6181 SQ 6181 C 610 570 544 524 810 770 744 724 260 242 35 225
