1. Material : Nickel-plated brass
2. Seal : NBR
3. O-ring : NBR
4. IP rating : IP66/67
**Dimensions and specifications are subject to change without notice.

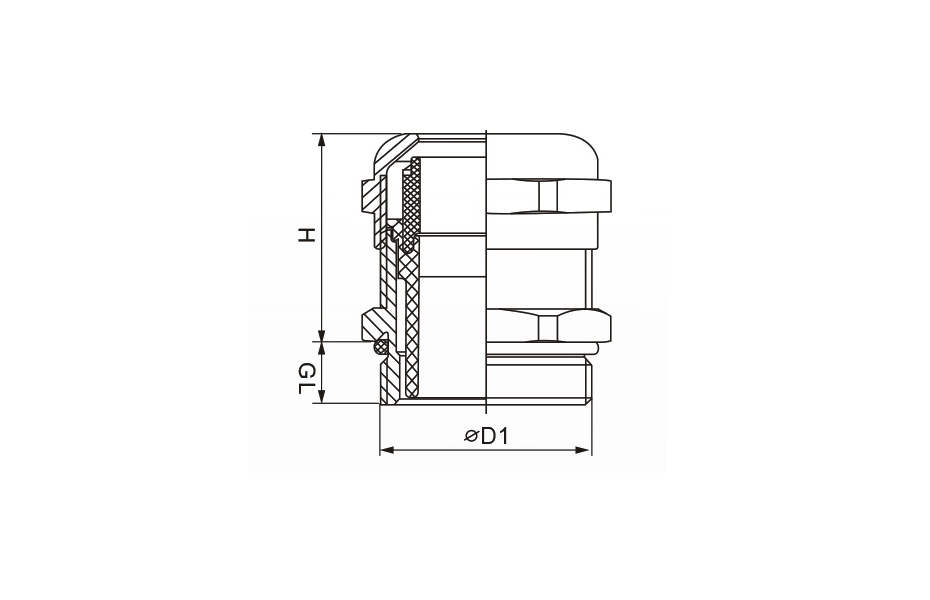

Model and Size
| Model |
Dimension |
File |
| Model |
Thread |
Cable ø(mm) |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-MM12L |
M12x1.5 |
4~7 |
15 |
10 |
14 |
12 |
|
|
|
| BC-MM16L |
M16x1.5 |
5~8 |
19 |
10 |
18 |
16 |
|
|
|
| BC-MM18L |
M18x1.5 |
5~10 |
21 |
10 |
20 |
17.7 |
|
|
|
| BC-MM20L |
M20x1.5 |
6~12 |
22 |
10 |
22 |
20 |
|
|
|
| BC-MM22L |
M22x1.5 |
10~14 |
23 |
10 |
24 |
21.8 |
|
|
|
| BC-MM24L |
M24x1.5 |
12~15 |
23 |
10 |
24 |
23.7 |
|
|
|
| BC-MM25L |
M25x1.5 |
7~14 |
21 |
12 |
27 |
25 |
|
|
|
| BC-MM27L |
M27x1.5 |
13~18 |
26 |
12 |
30 |
26.7 |
|
|
|
| BC-MM30L |
M30x1.5 |
16~22 |
28 |
12 |
33 |
29.6 |
|
|
|
| BC-MM32L |
M32x1.5 |
16~22 |
27 |
14 |
34 |
32 |
|
|
|
| BC-MM36L |
M36x1.5 |
18~25 |
31 |
15 |
40 |
35.8 |
|
|
|
| BC-MM40L |
M40x1.5 |
23~28 |
30 |
15 |
45 |
40 |
|
|
|
| BC-MM50L |
M50x1.5 |
30~38 |
36 |
15 |
58 |
50 |
|
|
|
| BC-MM63L |
M63x1.5 |
37~44 |
38 |
15 |
64 |
62.3 |
|
|
|
