1. Material : Nickel-plated brass
2. Seal : NBR
3. O-ring : NBR
4. IP rating : IP66/67
**Dimensions and specifications are subject to change without notice.
Model and Size
| Model |
Dimension |
File |
| Model |
Thread |
Cable ø(mm) |

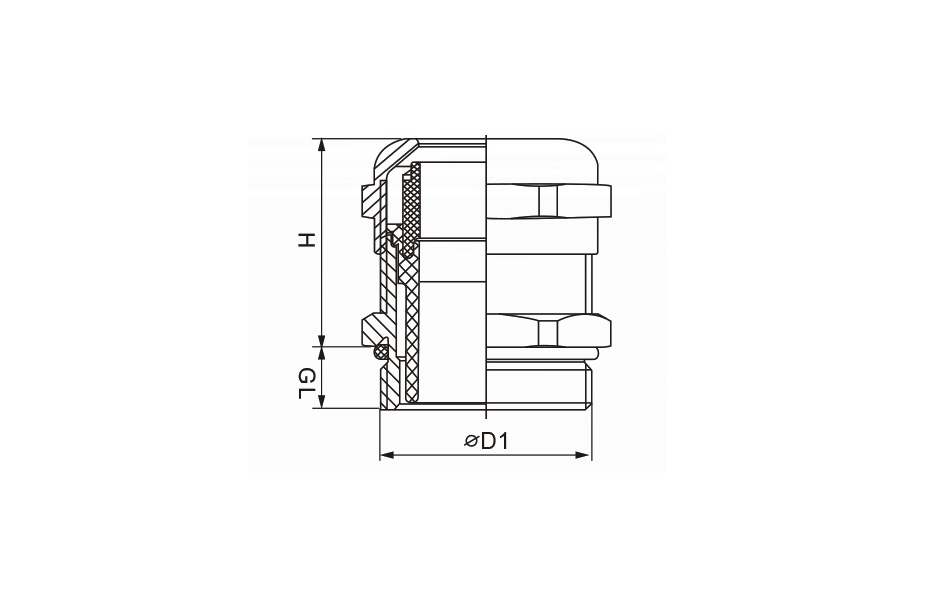

H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-MM12 |
M12x1.5 |
4~7 |
15 |
6 |
14 |
12 |
|
|
|
| BC-MM16 |
M16x1.5 |
5~8 |
19 |
7 |
18 |
16 |
|
|
|
| BC-MM18 |
M18x1.5 |
6~10 |
20 |
8 |
20 |
18 |
|
|
|
| BC-MM20 |
M20x1.5 |
6~12 |
22 |
8 |
22 |
20 |
|
|
|
| BC-MM22 |
M22x1.5 |
7~14 |
21 |
9 |
24 |
22 |
|
|
|
| BC-MM24 |
M24x1.5 |
12~15 |
23 |
7 |
24 |
24 |
|
|
|
| BC-MM25 |
M25x1.5 |
7~14 |
21 |
9 |
27 |
25 |
|
|
|
| BC-MM27 |
M27x1.5 |
13~18 |
24 |
7.5 |
30 |
27 |
|
|
|
| BC-MM30 |
M30x1.5 |
13~18 |
23 |
8 |
32 |
30 |
|
|
|
| BC-MM32 |
M32x1.5 |
16~22 |
31 |
8 |
35 |
31.5 |
|
|
|
| BC-MM36 |
M36x1.5 |
18~25 |
31 |
8 |
36 |
35.8 |
|
|
|
| BC-MM40 |
M40x1.5 |
22~30 |
37 |
9 |
45 |
39.4 |
|
|
|
| BC-MM50 |
M50x1.5 |
32~38 |
37 |
9 |
57 |
49.2 |
|
|
|
| BC-MM63 |
M63x1.5 |
34~44 |
39 |
13 |
63 |
63 |
|
|
|
