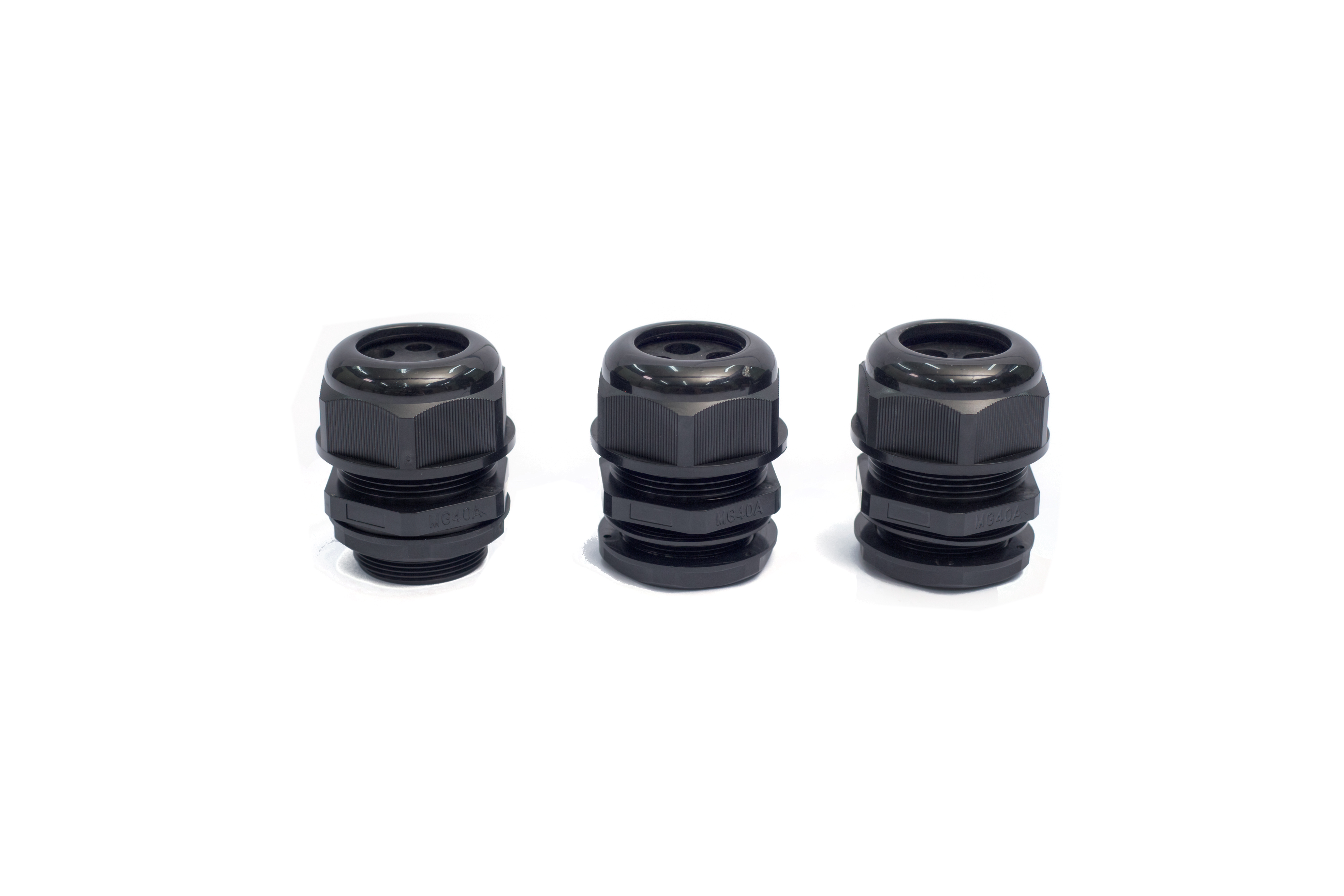

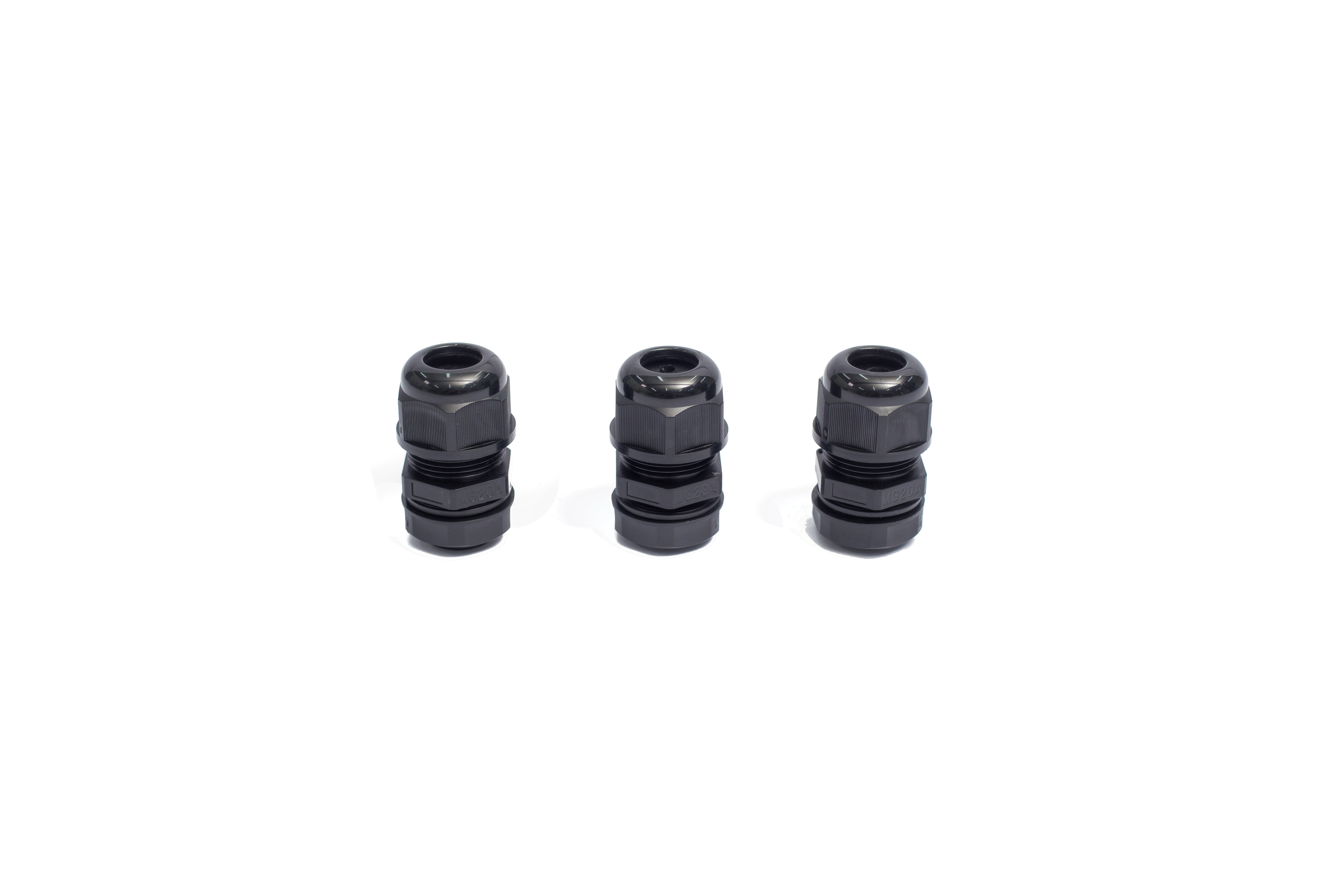

M Type

1. Material : Polyamide(PA)
2. Seal : NBR
3. O-ring : NBR
4. Color : Black

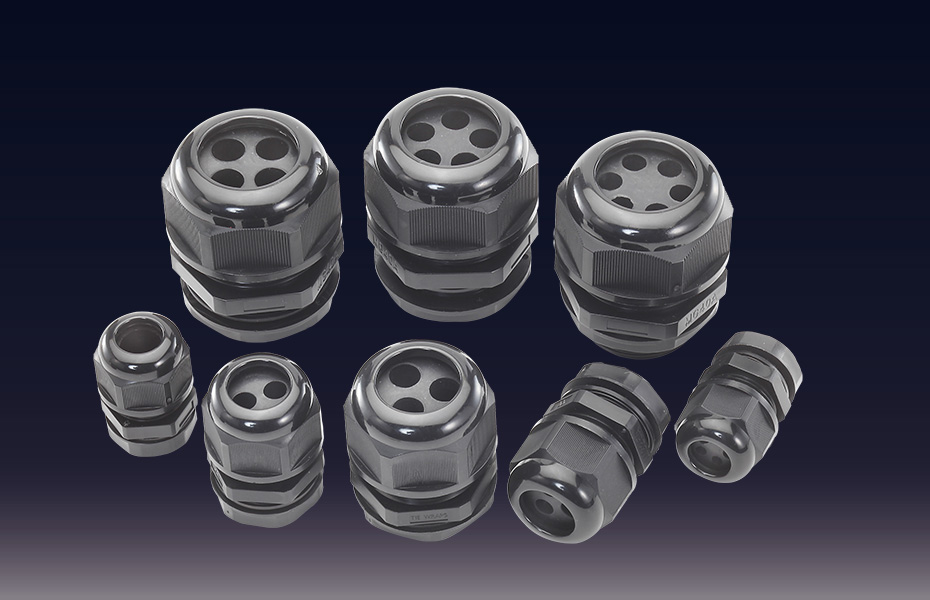

5. No of Hole : 1H(1 hole)~6H(6 hole)

**Dimensions and specifications are subject to change without notice.

Online Inquiry LIST

Model and Size

Model	Dimension						File

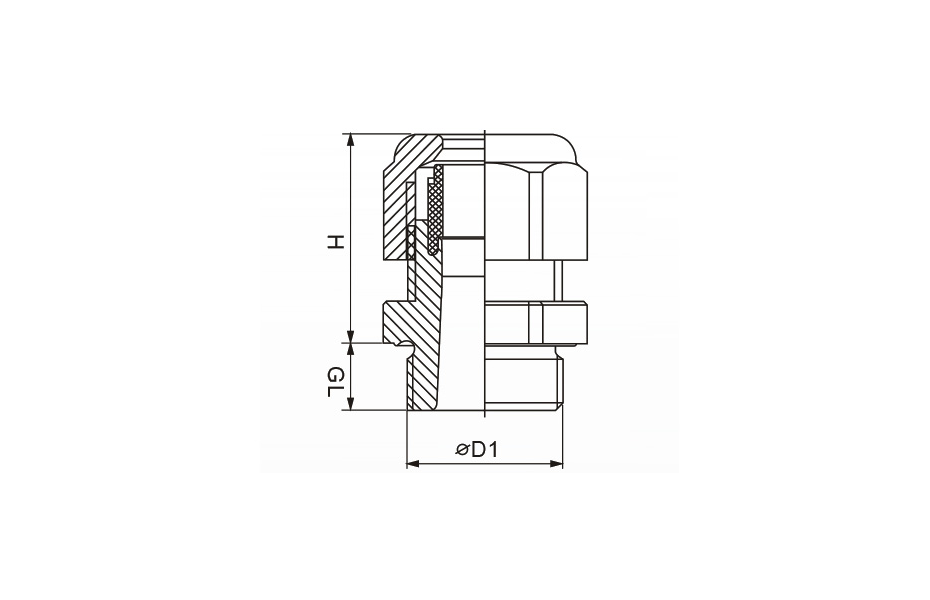

Black	Thread	Cable ø(mm)	H(mm)	GL(mm)	W(mm)	D1(mm)	DWG	3D	PDF
BC-1H-M12-B	M12x1.5	4.5~8	25	9	19	12
BC-1H-M16-B	M16x1.5	6~10	27	15	22	16
BC-1H-M20-B	M20x1.5	9~14	33	15	27	20
BC-1H-M25-B	M25x1.5	13~18	34	15	33	25
BC-1H-M32-B	M32x1.5	18~25	41	15	42	32
BC-1H-M40-B	M40x1.5	24~32	45	20	52	40
BC-1H-M50-B	M50x1.5	31~41	51	22	62	50
BC-1H-M63-B	M63x1.5	44~51	53	25	75	63
BC-1H-M75-B	M75x2	56~66	56	25	92	75
BC-1H-M90-B	M90x2	66~77	57	25	110	90
BC-2H-M12-B	M12x1.5	1.5~3	25	9	19	12
BC-2H-M16-B	M16x1.5	2~4	27	15	22	16
BC-2H-M20-B	M20x1.5	3~6	33	15	27	20
BC-2H-M25-B	M25x1.5	5~8	34	15	33	25
BC-2H-M32-B	M32x1.5	7~11	41	15	42	32
BC-2H-M40-B	M40x1.5	10~13	45	20	52	40
BC-3H-M12-B	M12x1.5	1.5~2.5	25	9	19	12
BC-3H-M16-B	M16x1.5	2~4	27	15	22	16
BC-3H-M20-B	M20x1.5	3~5	33	15	27	20
BC-3H-M25-B	M25x1.5	4.5~7	34	15	33	25
BC-3H-M32-B	M32x1.5	7~10	41	15	42	32
BC-3H-M40-B	M40x1.5	9~12	45	20	52	40
BC-4H-M12-B	M12x1.5	1.5~2.5	25	9	19	12
BC-4H-M16-B	M16x1.5	1.5~3	27	15	22	16
BC-4H-M20-B	M20x1.5	2.5~4.5	33	15	27	20
BC-4H-M25-B	M25x1.5	4~6	34	15	33	25
BC-4H-M32-B	M32x1.5	8~9	41	15	42	32
BC-4H-M40-B	M40x1.5	8~11	45	20	52	40
BC-5H-M16-B	M16x1.5	1~2.5	27	15	22	16
BC-5H-M20-B	M20x1.5	2~4	33	15	27	20
BC-5H-M25-B	M25x1.5	3.5~5.5	34	15	33	25
BC-5H-M32-B	M32x1.5	5.5~8	41	15	42	32
BC-5H-M40-B	M40x1.5	7~9.5	50	20	52	40
BC-6H-M16-B	M16x1.5	1~2	27	15	22	16
BC-6H-M20-B	M20x1.5	1.5~3	33	15	27	20
BC-6H-M25-B	M25x1.5	2.5~4.5	34	15	33	25
BC-6H-M32-B	M32x1.5	5~7	41	15	42	32
BC-6H-M40-B	M40x1.5	6~8	45	20	52	40
