1. Material : Polyamide(PA)
2. Seal : NBR
3. O-ring : EPDM
4. Color : Grey
**Dimensions and specifications are subject to change without notice.

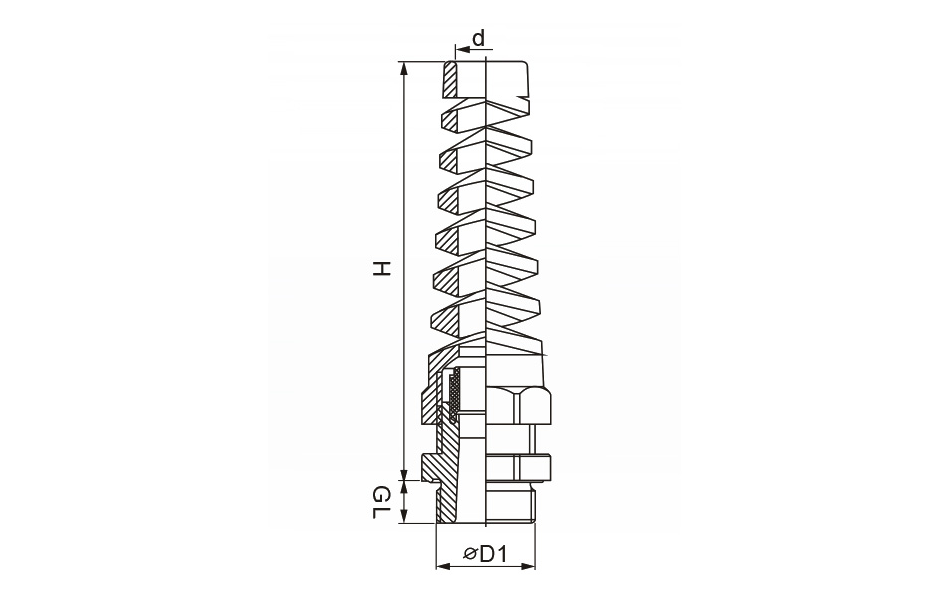

Model and Size
| Model |
Dimension |
File |
| Gray |
Thread |
Cable ø(mm) |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-BP-M12L-G |
M12x1.5 |
4~6.5 |
60 |
15 |
16 |
12 |
|
|
|
| BC-BP-M16L-G |
M16x1.5 |
4.5~8.5 |
68 |
15 |
19 |
16 |
|
|
|
| BC-BP-M18L-G |
M18x1.5 |
5~10 |
73 |
15 |
23 |
18 |
|
|
|
| BC-BP-M20L-G |
M20x1.5 |
6~11 |
82 |
15 |
24 |
20 |
|
|
|
| BC-BP-M22L-G |
M22x1.5 |
8~13 |
82 |
15 |
27 |
22 |
|
|
|
| BC-BP-M25L-G |
M25x1.5 |
13~18 |
105 |
15 |
33 |
25 |
|
|
|
