Q Series

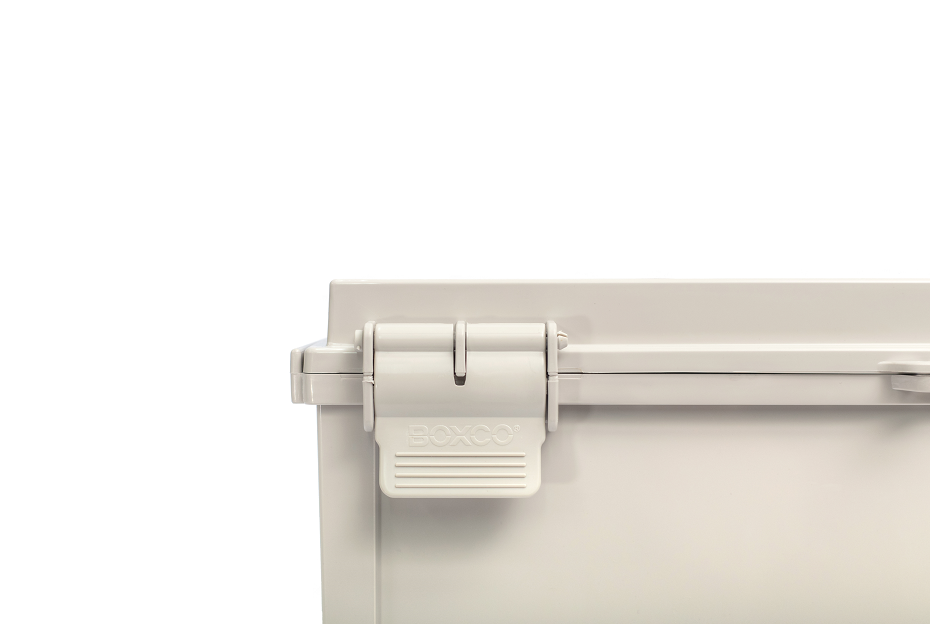

1. Plastic latch, Plastic hinge

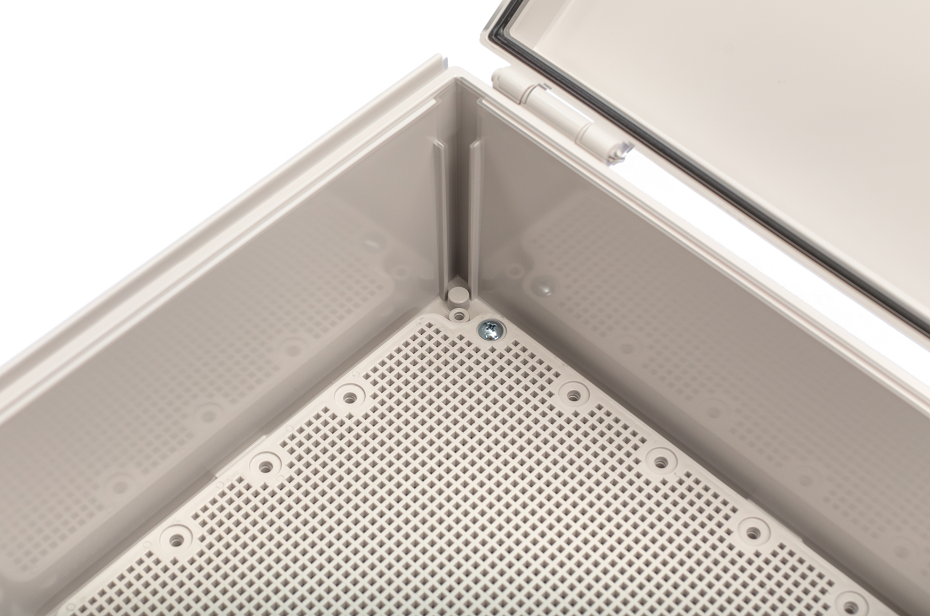

2. BOXCO control box is easy to removable cover and body

**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃ | PC : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB | PC : 94-V-0, 5VA, HB

Model and Size

Size(included cover) Model Mounting Plate Dimension File
W×L×H
(mm)
W×L×H
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Steel
SQ type
Plastic
G type
Plastic
C type
W1 W2 W3 W4 L1 L2 L3 L4 H1 H2 H3 H4 M1
Plate
M2
Plate
DWG 3D PDF
100×150×90 3.94×5.91×3.54 BC-AGQ-101509 BC-ATQ-101509 1015 G 100 76 64 49 158.4 126 114 110 90 77.5 20 70 74 124 Down
150×150×90 5.91×5.91×3.54 BC-AGQ-151509 BC-ATQ-151509 1515 SQ 1515 G 150 129 114 99 158.4 129 114 99 90 77.5 20 70 124 124 Down
150×150×120 5.91×5.91×4.72 BC-AGQ-151512 BC-ATQ-151512 BC-CGQ-151512 1515 SQ 1515 G 150 129 114 99 158.4 129 114 99 120 107.5 20 100 124 124 Down
160×210×100 6.30×8.27×3.94 BC-AGQ-162110 BC-ATQ-162110 BC-CGQ-162110 1621 SQ 1621 G 160 136 120 105 218.4 186 170 160 100 87.5 20 80 130 180 Down
160×210×130 6.30×8.27×5.12 BC-AGQ-162113 BC-ATQ-162113 1621 SQ 1621 G 160 136 120 105 218.4 186 170 160 130 117.5 20 110 130 180 Down
210×210×130 8.27×8.27×5.12 BC-AGQ-212113 BC-ATQ-212113 2121 SQ 2121 G 210 183 170 160 218.4 183 170 160 130 117.5 20 110 180 180 Down
200×300×130 7.87×11.81×5.12 BC-AGQ-203013 BC-ATQ-203013 BC-CGQ-203013 2030 SQ 2030 G 2030 C 200 175 154 136 308.4 275 254 236 130 114 30 100 160 260 Down
200×300×140 7.87×11.81×5.51 BC-AGQ-203014 BC-ATQ-203014 2030 SC 2030 G 2030 C
200×300×150 7.87×11.81×5.91 BC-AGQ-203015 BC-ATQ-203015 BC-CGQ-203015 2030 SQ 2030 G 2030 C 200 175 154 136 308.4 275 254 236 150 134 30 120 160 260 Down
200×300×180 7.87×11.81×7.09 BC-AGQ-203018 BC-ATQ-203018 2030 SQ 2030 G 2030 C 200 175 154 136 308.4 275 254 236 180 164 30 150 160 260 Down
250×350×160 9.84×13.78×6.30 BC-AGQ-253516 BC-ATQ-253516 BC-CGQ-253516 2535 SQ 2535 G 2535 C 250 224.5 206 190 358.4 324.5 306 288 160 144 30 130 210 310 Down
300×300×160 11.81×11.81×6.30 BC-AGQ-303016 BC-ATQ-303016 BC-CGQ-303016 3030 SQ 3030 G 3030 C 300 270 256 240 308.4 270 256 238 160 144 30 130 260 260 Down
300×400×150 11.81×15.75×5.91 BC-AGQ-304015 BC-ATQ-304015 3040 SQ 3040 G 3040 C
300×400×160 11.81×15.75×6.30 BC-AGQ-304016 BC-ATQ-304016 BC-CGQ-304016 3040 SQ 3040 G 3040 C 300 274.5 256 240 408.4 374.5 356 340 160 144 30 130 260 360 Down
300×400×180 11.81×15.75×7.09 BC-AGQ-304018 BC-ATQ-304018 BC-CGQ-304018 3040 SQ 3040 G 3040 C 300 274.5 256 240 408.4 374.5 356 340 180 164 30 150 260 360 Down
350×450×200 13.78×17.72×7.87 BC-AGQ-354520 BC-ATQ-354520 3545 SQ 3545 G 350 317 298 280 460.4 417 398 380 200 183 30 170 300 400 Down
400×500×160 15.75×19.69×6.30 BC-AGQ-405016 BC-ATQ-405016 BC-CGQ-405016 4050 SQ 4050 G 400 368.6 348 326 510.4 468.6 448 426 160 143 30 130 350 450 Down
400×500×200 15.75×19.69×7.87 BC-AGQ-405020 BC-ATQ-405020 BC-CGQ-405020 4050 SQ 4050 G 400 368.6 348 326 510.4 468.6 448 426 200 183 30 170 350 450 Down
