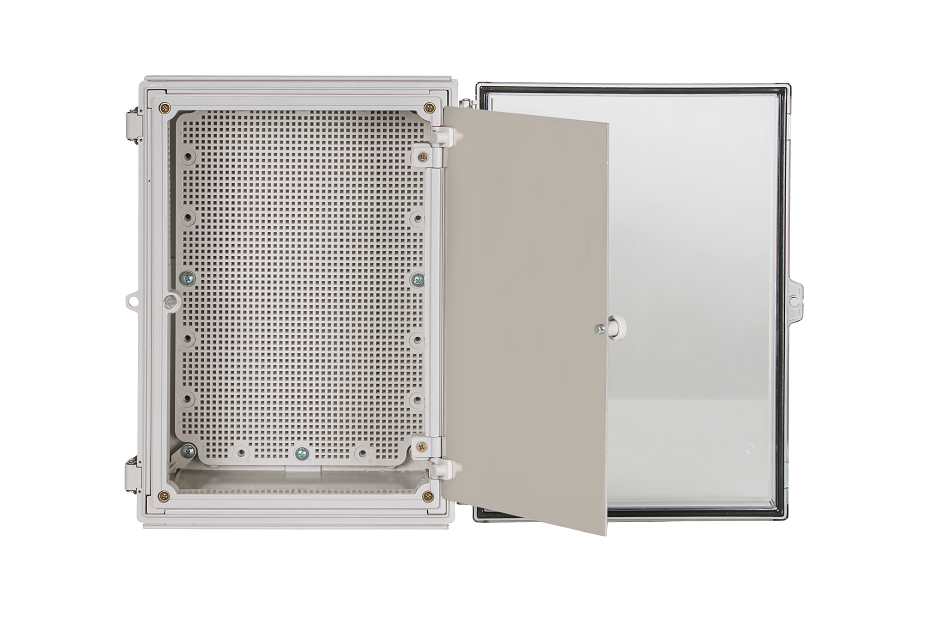

1. It is swing out panel type and panel is easy to open or close as it will be assembled with handle and hinge type.
2. This swing out panel is for our Nema 4X enclosure and very strong as it is fixed with 4 supports and has good external appearance.
3. It is for R and Q series.
4. BOXCO Hinged front panel is made of aluminum.
**Dimensions and specifications are subject to change without notice.
Model and Size
| Dual Door Applicable Model |
Product Model |
File |
| Size(mm) |
Size(inch) |
Model |
Dual Door |
Dual door mounting plate |
Dual Door Set |
DWG |
3D |
PDF |
| 250×350×160 |
9.84×13.78×6.30 |
BC-□□Q-253516 |
BC-RF253516 |
BC-RFA2535 |
BC-RFA253516 |
|
|
|
| 250×350×160 |
9.84×13.78×6.30 |
BC-□□R-253516 |
BC-RF253516 |
BC-RFA2535 |
BC-RFA253516 |
|
|
|
| 250×350×180 |
9.84×13.78×6.30 |
BC-□□R-253518 |
BC-RF253518 |
BC-RFA2535 |
BC-RFA253518 |
|
|
|
| 300×400×160 |
11.81×15.75×6.30 |
BC-□□R-304016 |
BC-RF304016 |
BC-RFA3040 |
BC-RFA304016 |
|
|
|
| 300×400×180 |
11.81×15.75×7.09 |
BC-□□R-304018 |
BC-RF304018 |
BC-RFA3040 |
BC-RFA304018 |
|
|
|
| 300×400×150 |
11.81×15.75×5.91 |
BC-□□Q-304015 |
BC-RF304015 |
BC-RFA3040 |
BC-RFA304015 |
|
|
|
| 300×400×160 |
11.81×15.75×6.30 |
BC-□□Q-304016 |
BC-RF304016 |
BC-RFA3040 |
BC-RFA304016 |
|
|
|
| 300×400×180 |
11.81×15.75×7.09 |
BC-□□Q-304018 |
BC-RF304018 |
BC-RFA3040 |
BC-RFA304018 |
|
|
|
