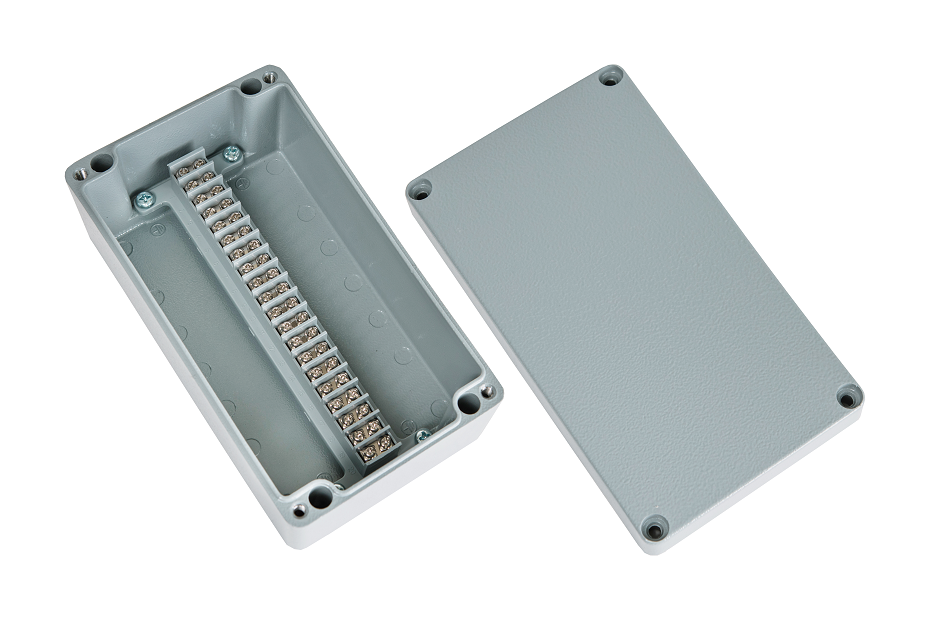

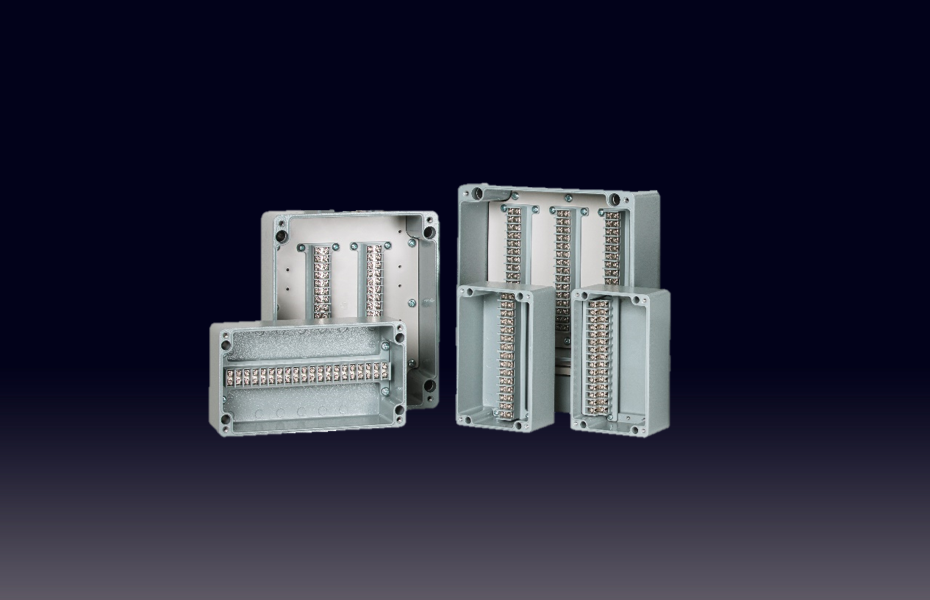

Terminal block box AL series

Model and Size

Size(included cover) Model File
W×L×H(mm) W×L×H(inch) Model DWG 3D PDF
80×75×57 3.15×2.95×2.24 BC-AL-6P
100×100×80 3.94×3.94×3.15 BC-AL-9P
100×160×81 3.94×7.87×3.15 BC-AL-15P
120×220×80 4.72×8.66×3.15 BC-AL-20P
160×160×90 6.30×6.30×3.54 BC-AL-20P2
230×200×110 9.06×7.87×4.33 BC-AL-30P2
160×260×90 6.30×10.24×3.54 BC-AL-40P2
230×200×110 9.06×7.87×4.34 BC-AL-45P3
