E Series

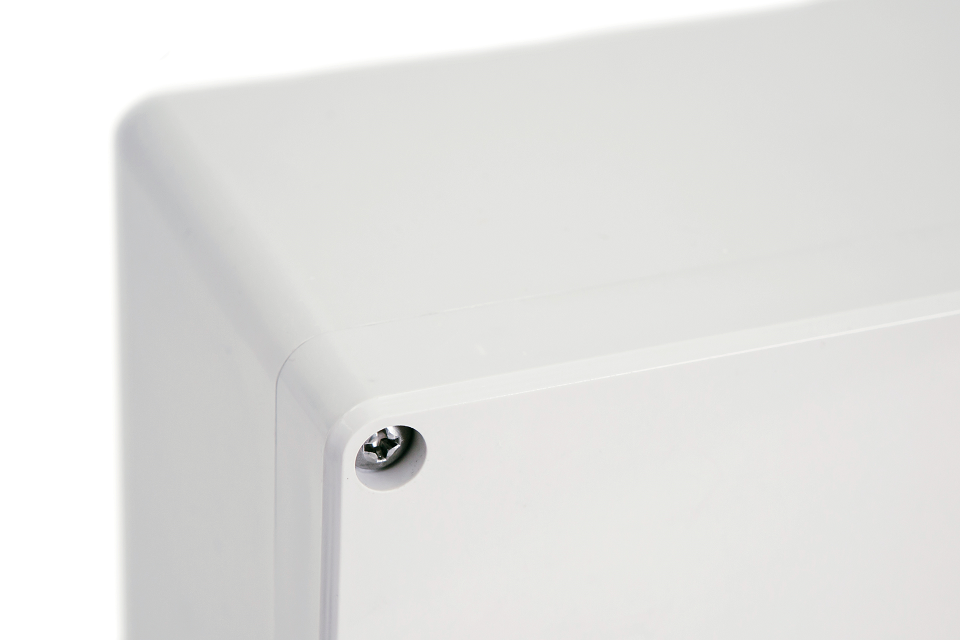

1. Screw type, SUS cover screw





**Dimensions and specifications are subject to change without notice.

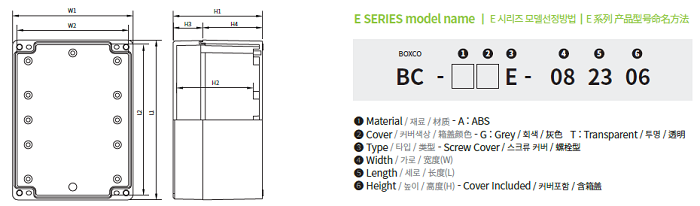

Model and Size

Size(included cover) Model Mounting Plate Plate
Dimension
File
W1×L1×H1
(mm)
W1×L1×H1
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Steel
Plastic
M1 M2 DWG 3D PDF
80×230×55 3.15×9.06×2.17 BC-AGE-082306 BC-ATE-082306 Down Down
120×160×90 4.80×6.38×3.54 BC-AGE-121609 BC-ATE-121609 Down Down
125×190×65 4.92×7.48×2.56 BC-AGE-121907 BC-ATE-121907 Down Down
160×260×90 6.30×10.24×3.54 BC-AGE-162609 BC-ATE-162609 Down Down
