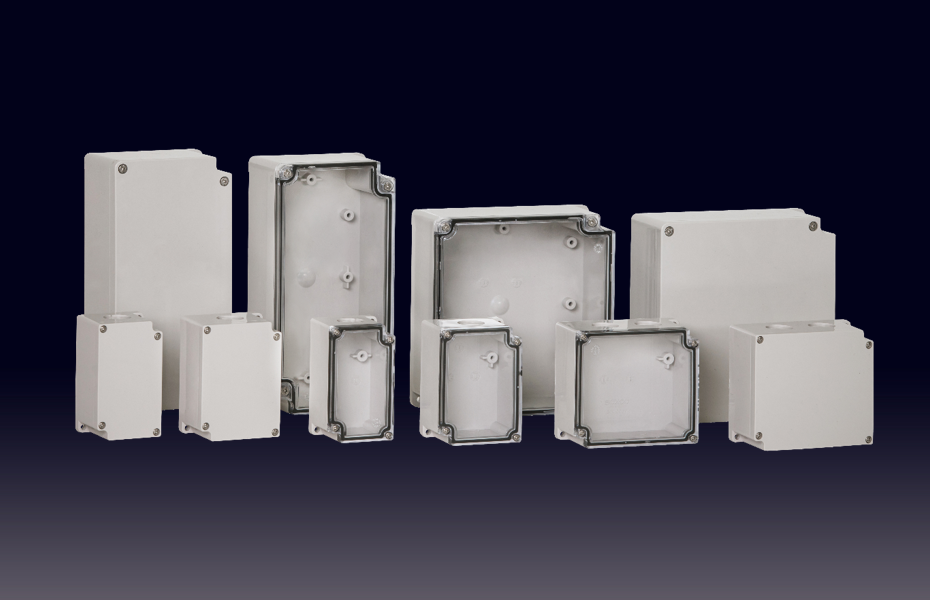

B Series

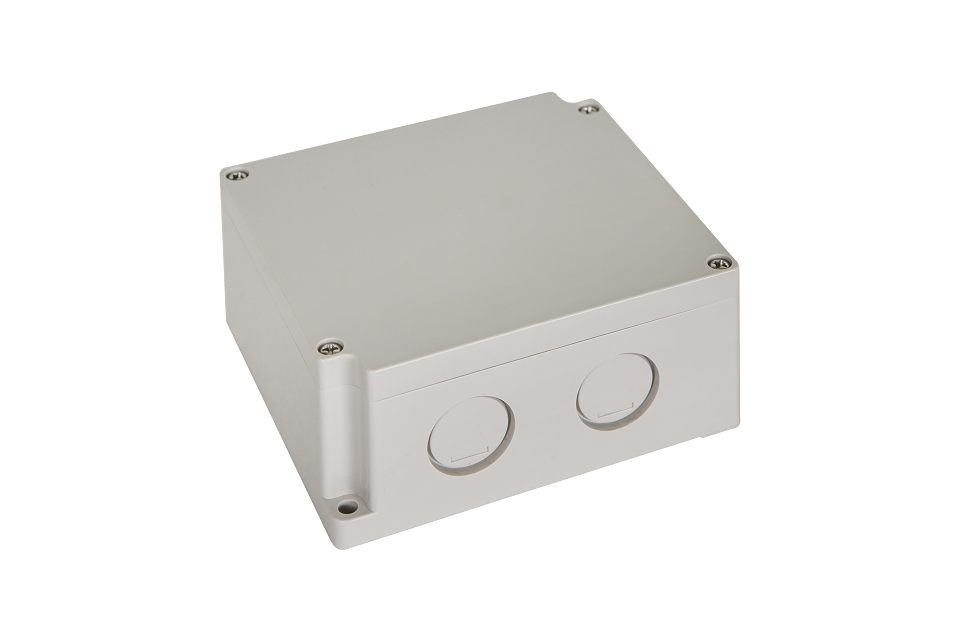

1. Screw type

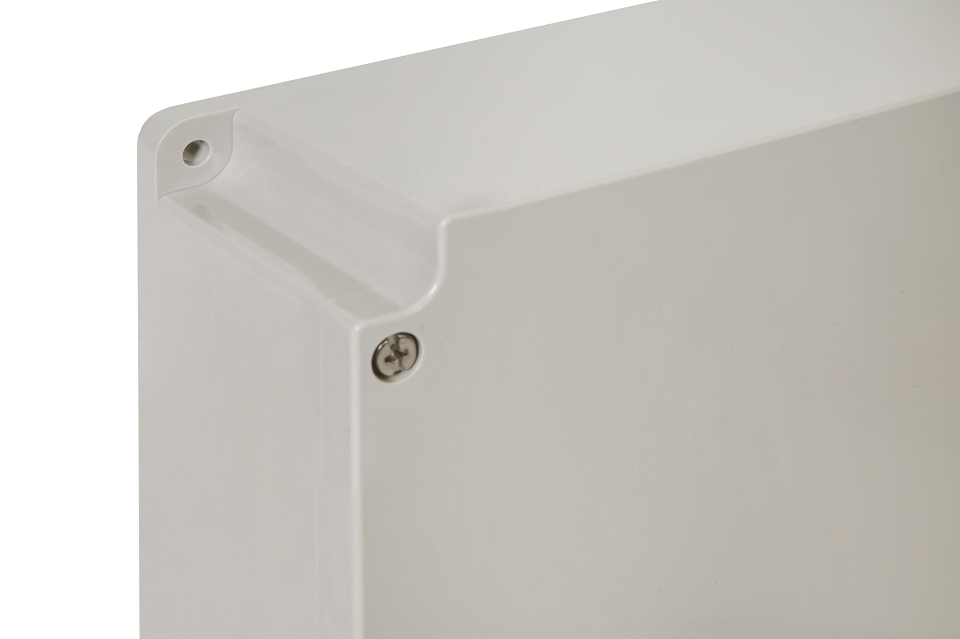

2. Bracket all-in-one product

**규격 및 사양은 사전 예고 없이 변경될 수 있습니다.

Specification

Temperature range
ABS : - 40 ~ + 70℃ | PC : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB, V-0 | PC : HB

Model and Size

Size(included cover) Model Mounting Plate Dimension File
W1×L1×H1
(mm)
W1×L1×H1
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Steel
Plastic M1
Plate
M2
Plate
DWG 3D PDF
52×90×45 1.97×3.54×1.77 BC-AGB-050904 BC-ATB-050904 Down Down
65×90×45 2.56×3.54×1.77 BC-AGB-060904 BC-ATB-060904 Down Down
90×100×45 3.54×3.94×1.77 BC-AGB-091004 BC-ATB-091004 Down Down
100×200×65 3.94×7.87×2.56 BC-AGB-102006 BC-ATB-102006 Down Down
150×160×65 5.91×6.3×2.56 BC-AGB-151606 BC-ATB-151606 Down Down
