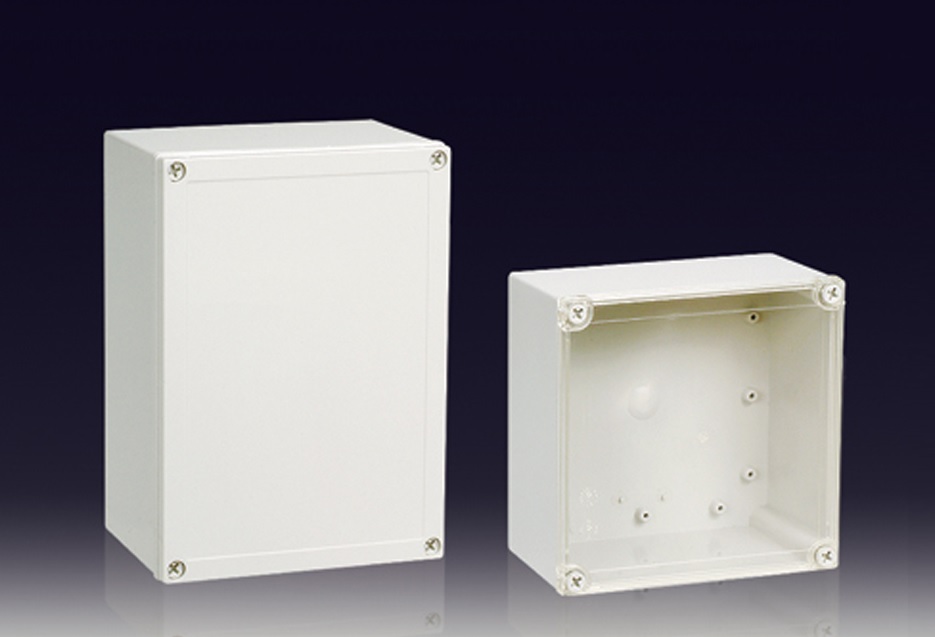

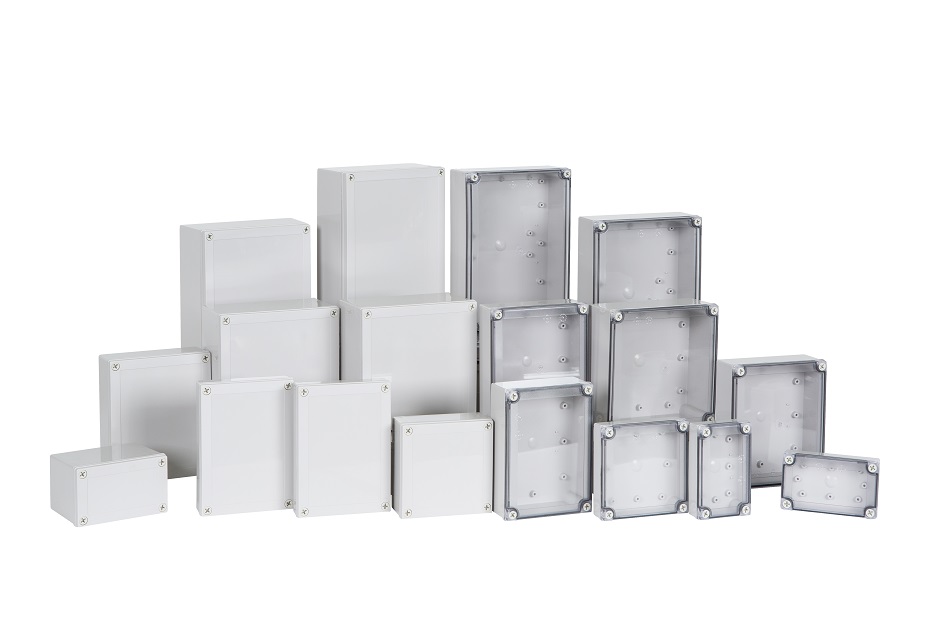

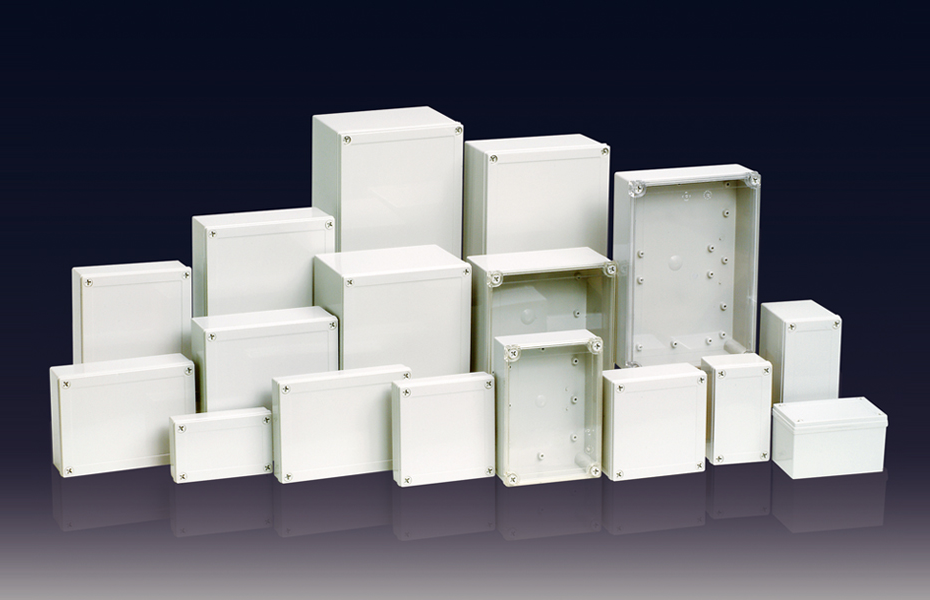

M Series

***For some M series, there will be a change in cover/body height (overall heights are the same) after the stock is exhausted, so please check in advance.

1. Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.

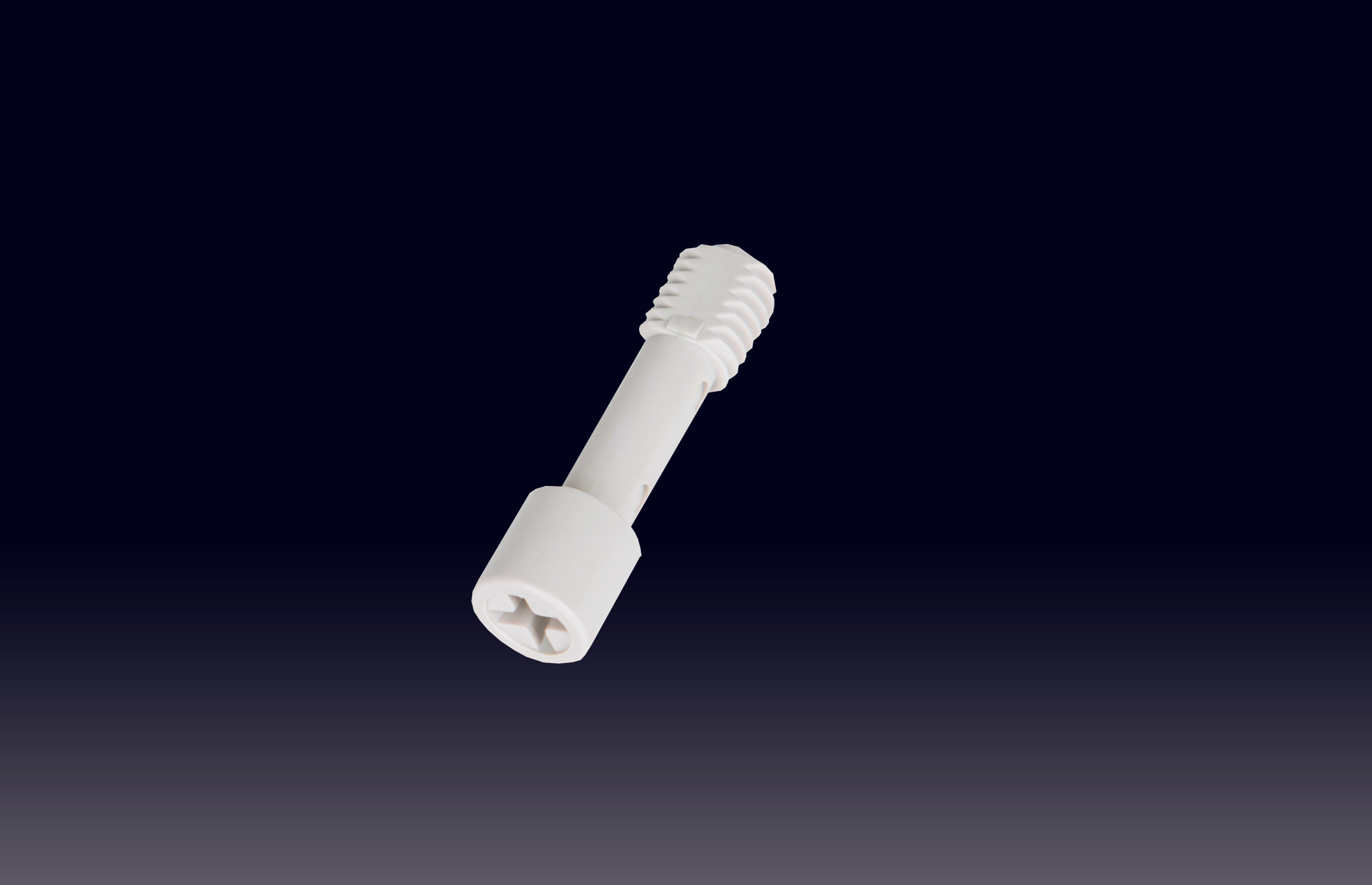

2. Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
3. Our M series have recessed cover and base is high so that it has beautiful appearance.

**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃ | Polycarbonate(PC) : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB

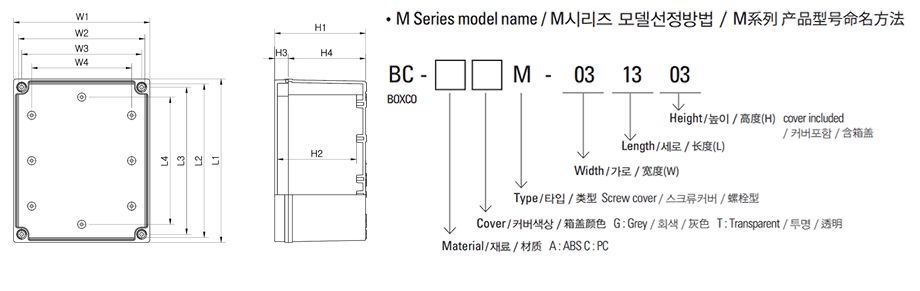

Model and Size

Size(included cover) Model Mounting Plate Plate
Dimension
File
W1×L1×H1
(mm)
W1×L1×H1
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Plastic
G type
Plastic
P type
Steel M1
Plate
M2
Plate
DWG 3D PDF
80×130×35 3.15×5.12×1.38 BC-AGM-081303 BC-ATM-081303 BC-CGM-081303 BC-CTM-081303 0813 P 0813 M 48 98 Down Down
80×130×40 3.15×5.12×1.58 BC-AGM-081304 BC-ATM-081304 BC-CGM-081304 BC-CTM-081304 0813 P 0813 M 48 98 Down Down
80×130×50 3.15×5.12×1.97 BC-AGM-081305 BC-ATM-081305 BC-CGM-081305 BC-CTM-081305 0813 P 0813 M 48 98 Down Down
80×130×60 3.15×5.12×2.36 BC-AGM-081306 BC-ATM-081306 BC-CGM-081306 BC-CTM-081306 0813 P 0813 M 48 98 Down Down
80×130×75 3.15×5.12×2.95 BC-AGM-081307 BC-ATM-081307 BC-CGM-081307 BC-CTM-081307 0813 P 0813 M 48 98 Down Down
80×130×85 3.15×5.12×3.35 BC-AGM-081308 BC-ATM-081308 BC-CGM-081308 BC-CTM-081308 0813 P 0813 M 48 98 Down Down
80×130×100 3.15×5.12×3.94 BC-AGM-081310 BC-ATM-081310 BC-CGM-081310 BC-CTM-081310 0813 P 0813 M 48 98 Down Down
80×130×110 3.15×5.12×4.33 BC-AGM-081311 BC-ATM-081311 BC-CGM-081311 BC-CTM-081311 0813 P 0813 M 48 98 Down Down
80×130×125 3.15×5.12×4.92 BC-AGM-081312 BC-ATM-081312 BC-CGM-081312 BC-CTM-081312 0813 P 0813 M 48 98 Down Down
100×100×35 3.94×3.94×1.38 BC-AGM-101003 BC-ATM-101003 BC-CGM-101003 BC-CTM-101003 1010 P Down Down
100×100×50 3.94×3.94×1.97 BC-AGM-101005 BC-ATM-101005 BC-CGM-101005 BC-CTM-101005 1010 P Down Down
100×100×60 3.94×3.94×2.36 BC-AGM-101006 BC-ATM-101006 BC-CGM-101006 BC-CTM-101006 1010 P Down Down
100×100×75 3.94×3.94×2.95 BC-AGM-101007 BC-ATM-101007 BC-CGM-101007 BC-CTM-101007 1010 P Down Down
130×130×35 5.12×5.12×1.38 BC-AGM-131303 BC-ATM-131303 BC-CGM-131303 BC-CTM-131303 1313 M 98 98 Down Down
130×130×50 5.12×5.12×1.97 BC-AGM-131305 BC-ATM-131305 BC-CGM-131305 BC-CTM-131305 1313 M 98 98 Down Down
130×130×60 5.12×5.12×2.36 BC-AGM-131306 BC-ATM-131306 BC-CGM-131306 BC-CTM-131306 1313 M 98 98 Down Down
130×130×75 5.12×5.12×2.95 BC-AGM-131307 BC-ATM-131307 BC-CGM-131307 BC-CTM-131307 1313 M 98 98 Down Down
130×130×85 5.12×5.12×3.35 BC-AGM-131308 BC-ATM-131308 BC-CGM-131308 BC-CTM-131308 1313 M 98 98 Down Down
130×130×100 5.12×5.12×3.94 BC-AGM-131310 BC-ATM-131310 BC-CGM-131310 BC-CTM-131310 1313 M 98 98 Down Down
130×130×110 5.12×5.12×4.33 BC-AGM-131311 BC-ATM-131311 BC-CGM-131311 BC-CTM-131311 1313 M 98 98 Down Down
130×130×125 5.12×5.12×4.92 BC-AGM-131312 BC-ATM-131312 BC-CGM-131312 BC-CTM-131312 1313 M 98 98 Down Down
130×180×35 5.12×7.09×1.38 BC-AGM-131803 BC-ATM-131803 BC-CGM-131803 BC-CTM-131803 1217 G 1217 P 1318 M 100 160 Down Down
130×180×50 5.12×7.09×1.97 BC-AGM-131805 BC-ATM-131805 BC-CGM-131805 BC-CTM-131805 1217 G 1217 P 1318 M 100 160 Down Down
130×180×60 5.12×7.09×2.36 BC-AGM-131806 BC-ATM-131806 BC-CGM-131806 BC-CTM-131806 1217 G 1217 P 1318 M 100 160 Down Down
130×180×75 5.12×7.09×2.95 BC-AGM-131807 BC-ATM-131807 BC-CGM-131807 BC-CTM-131807 1217 G 1217 P 1318 M 100 160 Down Down
130×180×85 5.12×7.09×3.35 BC-AGM-131808 BC-ATM-131808 BC-CGM-131808 BC-CTM-131808 1217 G 1217 P 1318 M 100 160 Down Down
130×180×100 5.12×7.09×3.94 BC-AGM-131810 BC-ATM-131810 BC-CGM-131810 BC-CTM-131810 1217 G 1217 P 1318 M 100 160 Down Down
130×180×110 5.12×7.09×4.33 BC-AGM-131811 BC-ATM-131811 BC-CGM-131811 BC-CTM-131811 1217 G 1217 P 1318 M 100 160 Down Down
130×180×125 5.12×7.09×4.92 BC-AGM-131812 BC-ATM-131812 BC-CGM-131812 BC-CTM-131812 1217 G 1217 P 1318 M 100 160 Down Down
130×180×135 5.12×7.09×5.32 BC-AGM-131813 BC-ATM-131813 BC-CGM-131813 BC-CTM-131813 1217 G 1217 P 1318 M 100 160 Down Down
130×180×150 5.12×7.09×5.91 BC-AGM-131815 BC-ATM-131815 BC-CGM-131815 BC-CTM-131815 1217 G 1217 P 1318 M 100 160 Down Down
150×180×60 5.91×7.09×2.36 BC-AGM-151806 BC-ATM-151806 BC-CGM-151806 BC-CTM-151806 1518 M 120 148 Down Down
150×180×75 5.91×7.09×2.95 BC-AGM-151807 BC-ATM-151807 BC-CGM-151807 BC-CTM-151807 1518 M 120 148 Down Down
180×180×40 7.09×7.09×1.58 BC-AGM-181804 BC-ATM-181804 BC-CGM-181804 BC-CTM-181804 1818 M 148 148 Down Down
180×180×55 7.09×7.09×2.17 BC-AGM-181805 BC-ATM-181805 BC-CGM-181805 BC-CTM-181805 1818 M 148 148 Down Down
180×180×60 7.09×7.09×2.36 BC-AGM-181806 BC-ATM-181806 BC-CGM-181806 BC-CTM-181806 1818 M 148 148 Down Down
180×180×75 7.09×7.09×2.95 BC-AGM-181807 BC-ATM-181807 BC-CGM-181807 BC-CTM-181807 1818 M 148 148 Down Down
180×180×85 7.09×7.09×3.35 BC-AGM-181808 BC-ATM-181808 BC-CGM-181808 BC-CTM-181808 1818 M 148 148 Down Down
180×180×100 7.09×7.09×3.94 BC-AGM-181810 BC-ATM-181810 BC-CGM-181810 BC-CTM-181810 1818 M 148 148 Down Down
180×180×110 7.09×7.09×4.33 BC-AGM-181811 BC-ATM-181811 BC-CGM-181811 BC-CTM-181811 1818 M 148 148 Down Down
180×180×125 7.09×7.09×4.92 BC-AGM-181812 BC-ATM-181812 BC-CGM-181812 BC-CTM-181812 1818 M 148 148 Down Down
180×180×135 7.09×7.09×5.32 BC-AGM-181813 BC-ATM-181813 BC-CGM-181813 BC-CTM-181813 1818 M 148 148 Down Down
180×180×150 7.09×7.09×5.91 BC-AGM-181815 BC-ATM-181815 BC-CGM-181815 BC-CTM-181815 1818 M 148 148 Down Down
180×180×160 7.09×7.09×6.30 BC-AGM-181816 BC-ATM-181816 BC-CGM-181816 BC-CTM-181816 1818 M 148 148 Down Down
180×180×175 7.09×7.09×6.89 BC-AGM-181817 BC-ATM-181817 BC-CGM-181817 BC-CTM-181817 1818 M 148 148 Down Down
180×255×50 7.09×10.04×1.97 BC-AGM-182505 BC-ATM-182505 BC-CGM-182505 BC-CTM-182505 1825 M 148 223 Down Down
180×255×65 7.09×10.04×2.56 BC-AGM-182506 BC-ATM-182506 BC-CGM-182506 BC-CTM-182506 1825 M 148 22 Down Down
180×255×75 7.09×10.04×2.95 BC-AGM-182507 BC-ATM-182507 BC-CGM-182507 BC-CTM-182507 1825 M 148 223 Down Down
180×255×90 7.09×10.04×3.54 BC-AGM-182509 BC-ATM-182509 BC-CGM-182509 BC-CTM-182509 1825 M 148 223 Down Down
180×255×100 7.09×10.04×3.94 BC-AGM-182510 BC-ATM-182510 BC-CGM-182510 BC-CTM-182510 1825 M 148 223 Down Down
180×255×115 7.09×10.04×4.53 BC-AGM-182511 BC-ATM-182511 BC-CGM-182511 BC-CTM-182511 1825 M 148 223 Down Down
180×255×125 7.09×10.04×4.92 BC-AGM-182512 BC-ATM-182512 BC-CGM-182512 BC-CTM-182512 1825 M 148 223 Down Down
180×255×140 7.09×10.04×5.51 BC-AGM-182514 BC-ATM-182514 BC-CGM-182514 BC-CTM-182514 1825 M 148 223 Down Down
180×255×150 7.09×10.04×5.91 BC-AGM-182515 BC-ATM-182515 BC-CGM-182515 BC-CTM-182515 1825 M 148 223 Down Down
