H Series

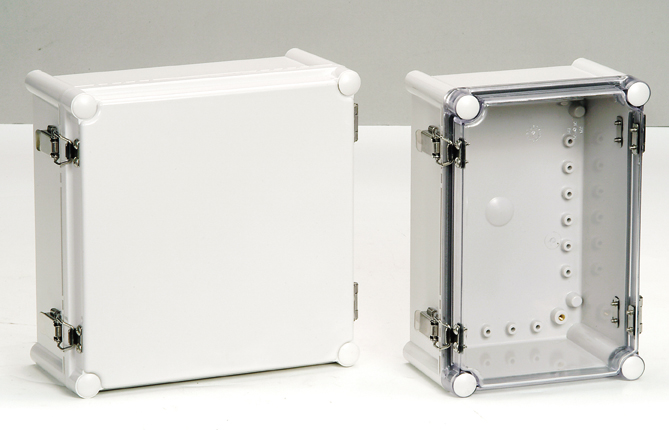

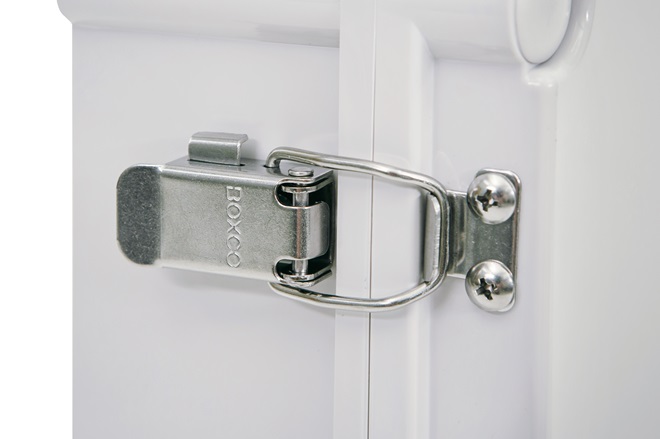

1. BOXCO's non-metallic waterproof enclosures are not easy to break even high frequency of opening and closing because of stainless steel hinge and draw latch.
2. It is wall mounting enclosure and makes perfect airtightness, preventing sink down when opening or closing by using suitable size of hinge and draw latch in accordance with increasing of enclosure size.
3. Our H series control boxes have designed to easily and simply assemble hinge and latch by customers.



**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃ │ Polycarbonate(PC) : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB │ Polycarbonate(PC) : 94-V-0, 5VA, HB

Model and Size

Size(included cover) Model Mounting Plate Dimension File
W×L×H
(mm)
W×L×H
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Steel
1.6mm
Plastic
3~4.5mm
W1 W2 W3 W4 L1 L2 L3 L4 H1 H2 H3 H4 M1
Plate
M2
Plate
DWG 3D PDF
190×190×130 7.48×7.48×5.12 BC-AGH-191913 BC-ATH-191913 BC-CGH-191913 BC-CTH-191913 1919 S 1919 P 190 165 90 120 190 165 150 120 130 114 30 100 159 159
190×280×100 7.48×11.02×3.94 BC-AGH-192810 BC-ATH-192810 BC-CGH-192810 BC-CTH-192810 1928 S 1928 P 190 165 150 120 280 255 184 210 100 84 30 70
190×280×130 7.48×11.02×5.12 BC-AGH-192813 BC-ATH-192813 BC-CGH-192813 BC-CTH-192813 1928 S 1928 P 190 165 150 120 280 256 182 210 130 114 30 100 159 248
190×280×180 7.48×11.02×7.09 BC-AGH-192818 BC-ATH-192818 BC-CGH-192818 BC-CTH-192818 1928 S 1928 P 190 165 150 120 280 259 182 210 180 164 30 150 159 248
190×380×130 7.48×14.96×5.12 BC-AGH-193813 BC-ATH-193813 BC-CGH-193813 BC-CTH-193813 1938 S 1938 P 190 165 150 120 380 355 282 310 130 114 30 100 159 348
190×380×180 7.48×14.96×7.09 BC-AGH-193818 BC-ATH-193818 BC-CGH-193818 BC-CTH-193818 1938 S 1938 P 190 165 150 120 380 355 282 310 180 164 30 150 159 348
280×190×100 11.02×7.48×3.94 BC-AGH-281910 BC-ATH-281910 BC-CGH-281910 BC-CTH-281910 1928 S 1928 P 280 255 184 210 190 165 150 120 100 84 30 70
280×190×130 11.02×7.48×5.12 BC-AGH-281913 BC-ATH-281913 BC-CGH-281913 BC-CTH-281913 1928 S 1928 P 280 255 182 210 190 165 150 120 130 114 30 100 159 248
280×190×180 11.02×7.48×7.09 BC-AGH-281918 BC-ATH-281918 BC-CGH-281918 BC-CTH-281918 1928 S 1928 P 280 255 182 210 190 165 150 120 180 164 30 150 159 248
280×280×130 11.02×11.02×5.12 BC-AGH-282813 BC-ATH-282813 BC-CGH-282813 BC-CTH-282813 2828 S 2828 P 280 255 182 210 280 255 240 210 130 114 30 100 248 248
280×340×130 11.02×13.39×5.12 BC-AGH-283413 BC-ATH-283413 BC-CGH-283413 BC-CTH-283413 2834 S 2834 P 280 255 240 210 340 313.8 244 270 130 112 30 100 248 308
280×380×130 11.02×14.96×5.12 BC-AGH-283813 BC-ATH-283813 BC-CGH-283813 BC-CTH-283813 2838 S 2838 P 280 255 240 210 380 355 284 311 130 112 30 100 248 348
280×380×180 11.02×14.96×7.09 BC-AGH-283818 BC-ATH-283818 BC-CGH-283818 BC-CTH-283818 2838 S 2838 P 280 255 240 210 380 355 284 311 180 162 30 150 248 348
280×560×130 11.02×22.05×5.12 BC-AGH-285613 BC-ATH-285613 BC-CGH-285613 BC-CTH-285613 2856 S 280 255 240 210 560 535 462 490 130 112 30 100 232 535
330×430×180 12.99×16.93×7.09 BC-AGH-334318 BC-ATH-334318 BC-CGH-334318 BC-CTH-334318 3343 S 3343 P 330 305 290 260 430 405 334 360 180 106 30 150 295 395
340×280×130 13.39×11.02×5.12 BC-AGH-342813 BC-ATH-342813 BC-CGH-342813 BC-CTH-342813 2834 S 2834 P 340 313.8 244 270 280 255.6 240 210 130 112 30 100 248 308
380×190×130 14.96×7.48×5.12 BC-AGH-381913 BC-ATH-381913 BC-CGH-381913 BC-CTH-381913 1938 S 1938 P 380 355 282 310 190 165 150 120 130 114 30 100 159 348
380×190×180 14.96×7.48×7.09 BC-AGH-381918 BC-ATH-381918 BC-CGH-381918 BC-CTH-381918 1938 S 1938 P 380 355 282 310 190 165 150 120 180 164 30 150 159 348
380×280×130 14.96×11.02×5.12 BC-AGH-382813 BC-ATH-382813 BC-CGH-382813 BC-CTH-382813 2838 S 2838 P 380 355 284 311 280 255 240 210 130 112 30 100 248 348
380×280×180 14.96×11.02×7.09 BC-AGH-382818 BC-ATH-382818 BC-CGH-382818 BC-CTH-382818 2838 S 2838 P 380 355 284 311 280 255 240 210 180 162 30 150 248 348
380×560×180 14.96×22.05×7.09 BC-AGH-385618 BC-ATH-385618 BC-CGH-385618 BC-CTH-385618 3856 S 380 355 340 310 560 535 460 490 180 160 30 150 345 535
430×330×180 16.93×12.99×7.09 BC-AGH-433318 BC-ATH-433318 BC-CGH-433318 BC-CTH-433318 3343 S 3343 P 430 405 334 360 330 305 290 260 180 160 30 150 295 395
560×280×130 22.05×11.02×5.12 BC-AGH-562813 BC-ATH-562813 BC-CGH-562813 BC-CTH-562813 2856 S 560 535 462 490 280 255 240 210 130 112 30 100 232 535
560×380×180 22.05×14.96×7.09 BC-AGH-563818 BC-ATH-563818 BC-CGH-563818 BC-CTH-563818 3856 S 560 535 460 490 380 355 340 310 180 160 30 150 345 535
