20 Pole

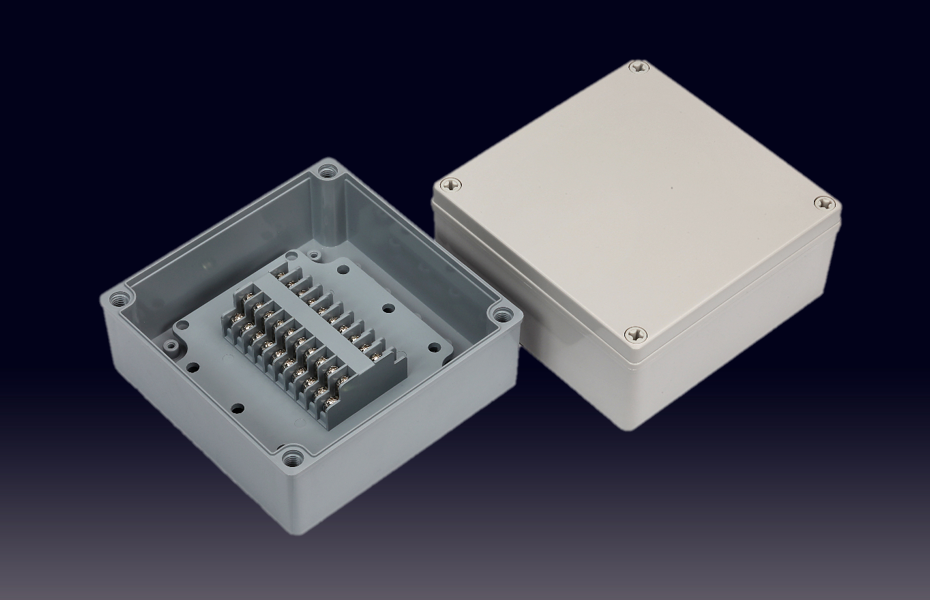

1. It is 20P product with A-type structure, which enables convenient wiring.
2. Terminal block can be separable so it is easy to work.





**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃
Flammability Rating
ABS : 94-V-0, HB
Rated Insulation Voltage
400V
Rated Impulse Voltage
4KV
Rated Current Capacity
0.75mm sq. - 1.5mm sq.

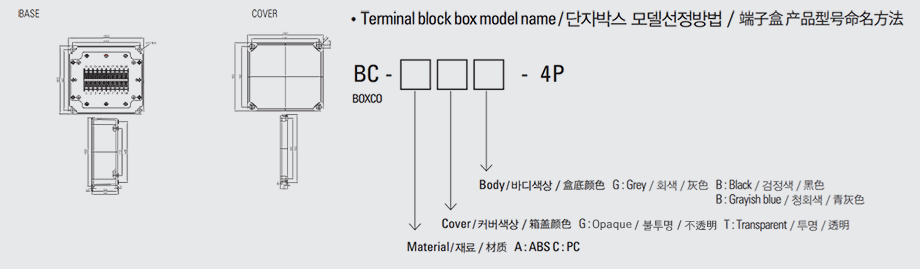

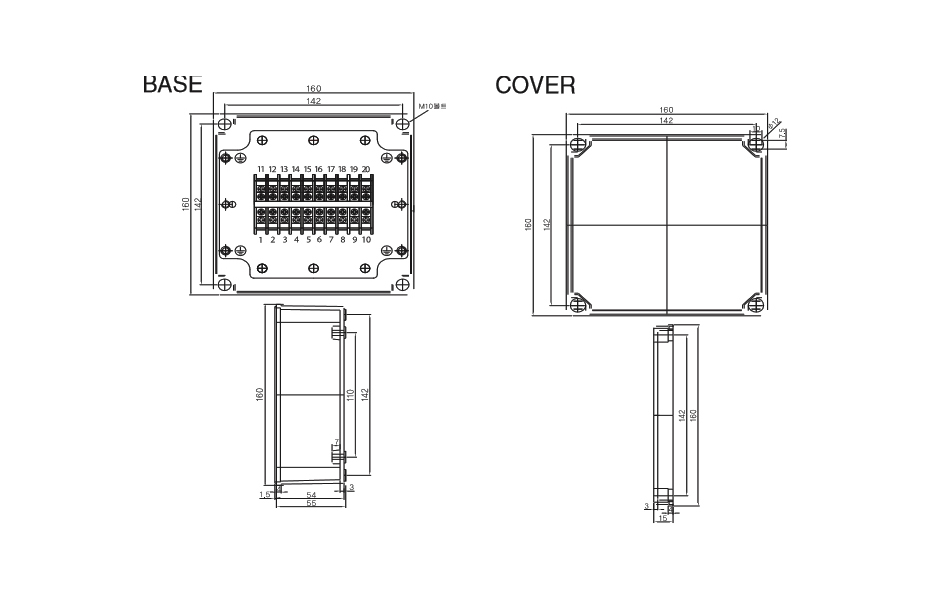

Model and Size

Size(included cover) Model File
W×L×H
(mm)
W×L×H
(inch)
ABS Grey
Opaque
ABS Grey
Transparent cover
ABS Grayish blue
Opaque cover
ABS Grayish blue
Transparent cover
PC/ABS Grey
Opaque cover
PC/ABS Grey
Transparent cover
DWG 3D PDF
160×160×70 6.30×6.30×2.76 BC-AGG-20PA BC-ATG-20PA BC-AGB-20PA BC-ATB-20PA BC-PGG-20PA BC-PTG-20PA
