6 Pole

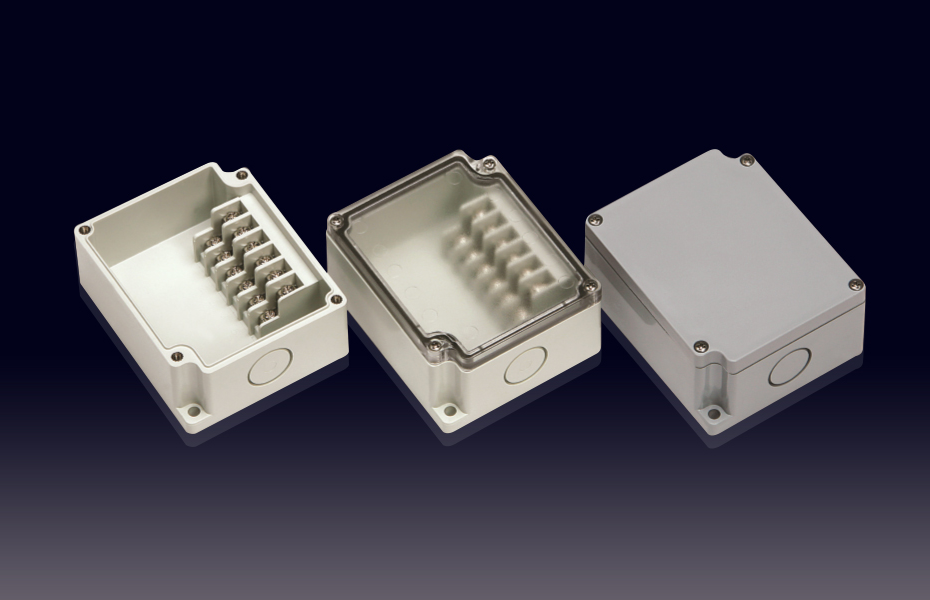

1. BOXCO's terminal block box is made from flame-retardant material.
2. It has an integrated 6P terminal block as T type(stair type) and there are 21mm knockouts on each end.







**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃
Flammability Rating
ABS : 94-V-0
Rated Insulation Voltage
400V
Rated Impulse Voltage
4KV
Rated Current Capacity
0.75mm sq. - 1.5mm sq.

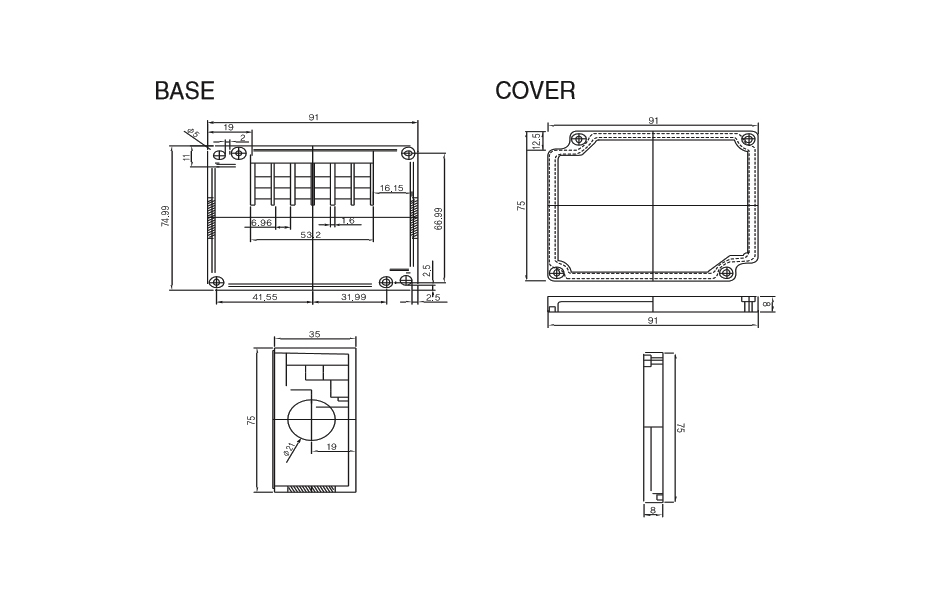

Model and Size

Size(included cover) Model File
W×L×H
(mm)
W×L×H
(inch)
ABS 회색
Opaque
ABS 회색
Transparent cover
ABS 청회색
Opaque
ABS 청회색
Transparent cover
PC/ABS 회색
Opaque
PC/ABS 회색
Transparent cover
DWG 3D PDF
75×91×43×21
(Knock out)

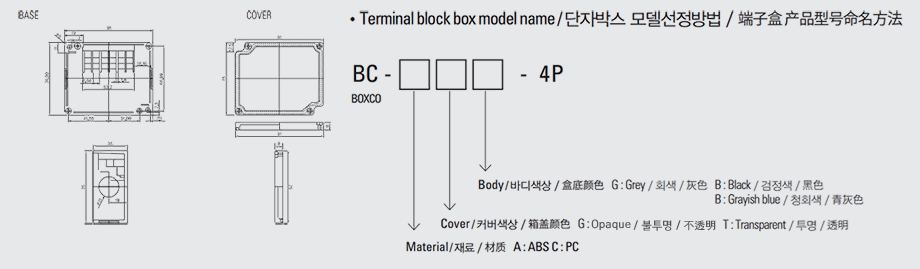

2.95×3.58×1.69 BC-AGG-6PT BC-ATG-6PT BC-AGB-6PT BC-ATB-6PT BC-PGG-6PT BC-PTG-6PT
