6 Pole

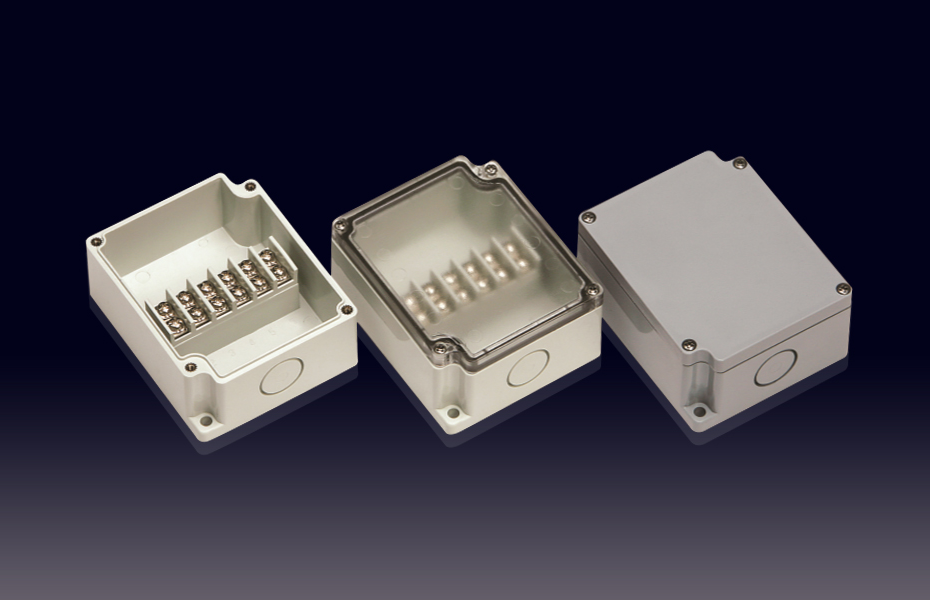

1. BOXCO's terminal block box is made from flame-retardant material.
2. It has an integrated 6P terminal block and there are 21mm molded knockouts on each end.

**Dimensions and specifications are subject to change without notice.

Online Inquiry LIST

Specification

IP rating: IP 66/67
IK Rating: IK 07/08
Temperature range: ABS : - 40 ~ + 70℃
Flammability Rating: ABS : 94-V-0
Rated Insulation Voltage: 400V
Rated Impulse Voltage: 4KV
Rated Current Capacity: 0.75mm sq. - 1.5mm sq.

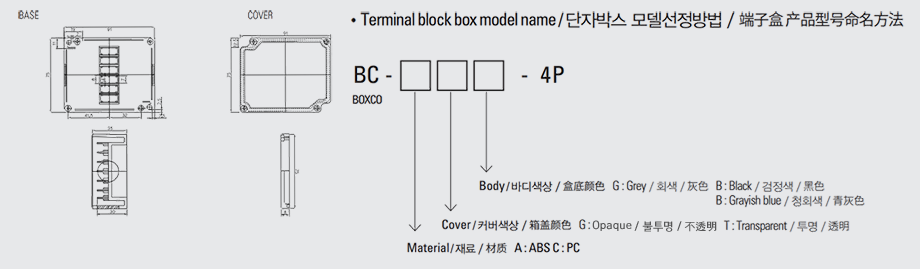

Model and Size

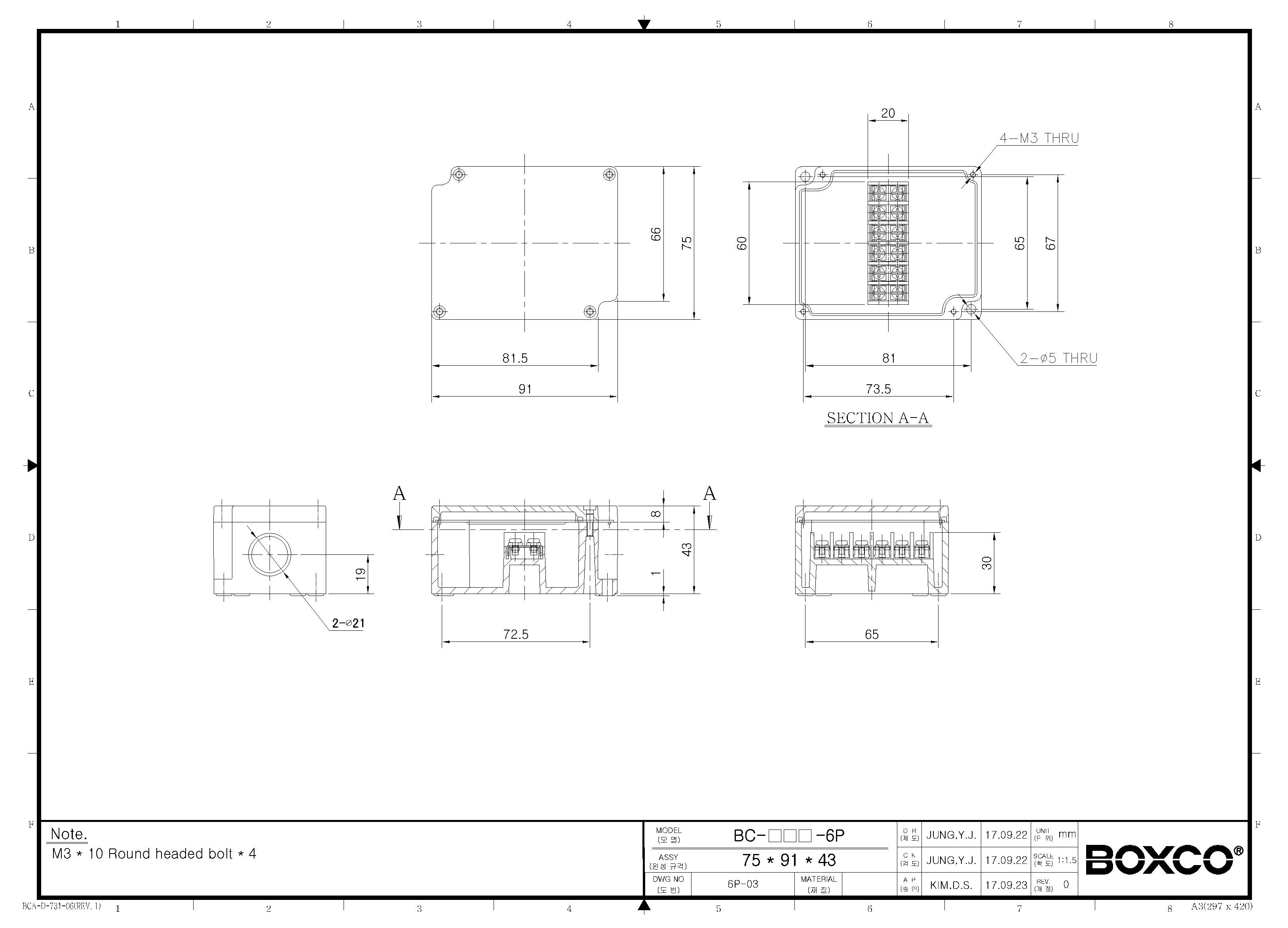

Size(included cover)		Model				File
W×L×H (mm)	W×L×H (inch)	ABS Grey Opaque cover	ABS Grey Transparent cover	ABS Grayish blue Opaque cover	ABS Grayish blue Transparent cover	DWG	3D	PDF
75×91×43×21 (Knock out)	2.95×3.58×1.69	BC-AGG-6P	BC-ATG-6P	BC-ABB-6P	BC-ATB-6P
