4 Pole

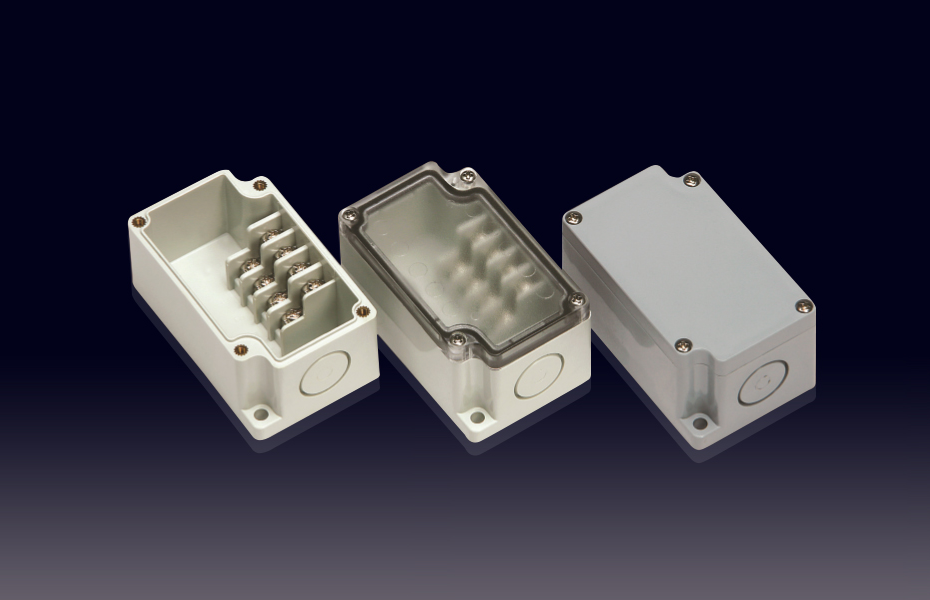

1. BOXCO's terminal block box is made from flame-retardant material.
2. It has an integrated 4P terminal block and there are 21mm molded knockouts on each end.



**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃
Flammability Rating
ABS : 94-V-0
Rated Insulation Voltage
400V
Rated Impulse Voltage
4KV
Rated Current Capacity
0.75mm sq. - 1.5mm sq.

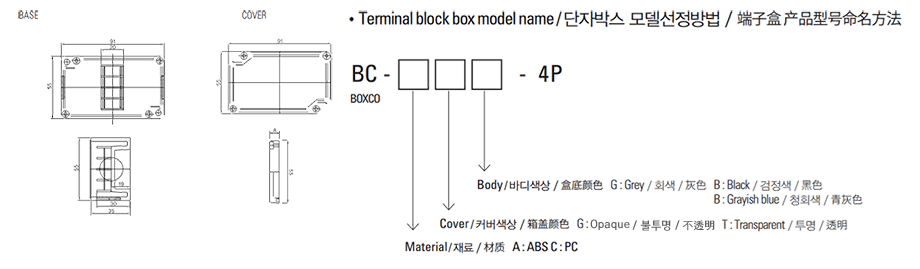

Model and Size

Size(included cover) Model File
W×L×H
(mm)
W×L×H
(inch)
ABS Grey
Opaque cover
ABS Grey
Transparent cover
ABS Grayish blue
Opaque cover
ABS Grayish blue
Transparent cover
PC/ABS Grey
Opaque cover
PC/ABS Grey
Transparent cover
DWG 3D PDF

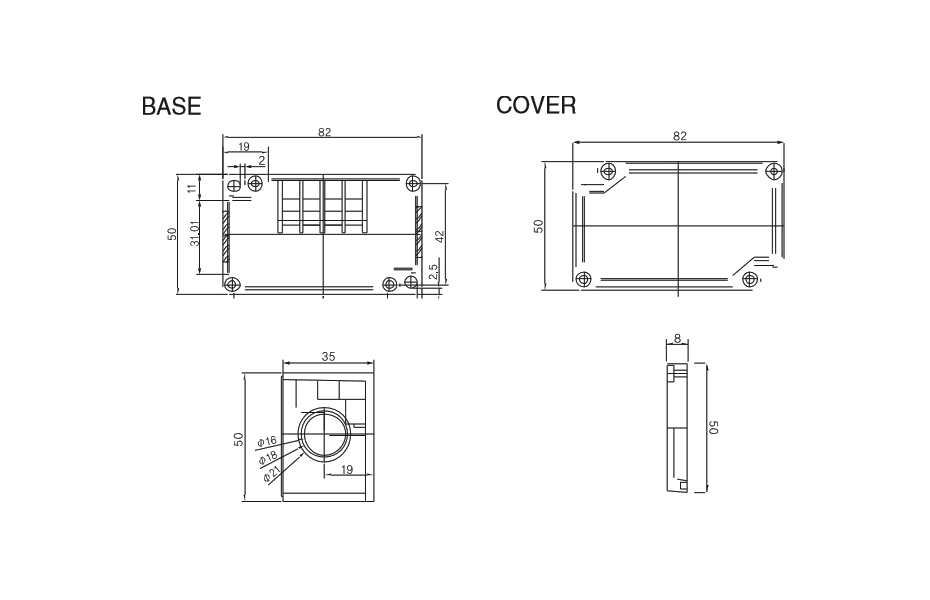

50×82×43×21
(Knock out)
1.97×3.23×1.69 BC-AGG-4PH BC-ATG-4PH BC-AGB-4PH BC-ATB-4PH BC-PGG-4PH BC-PTG-4PH
