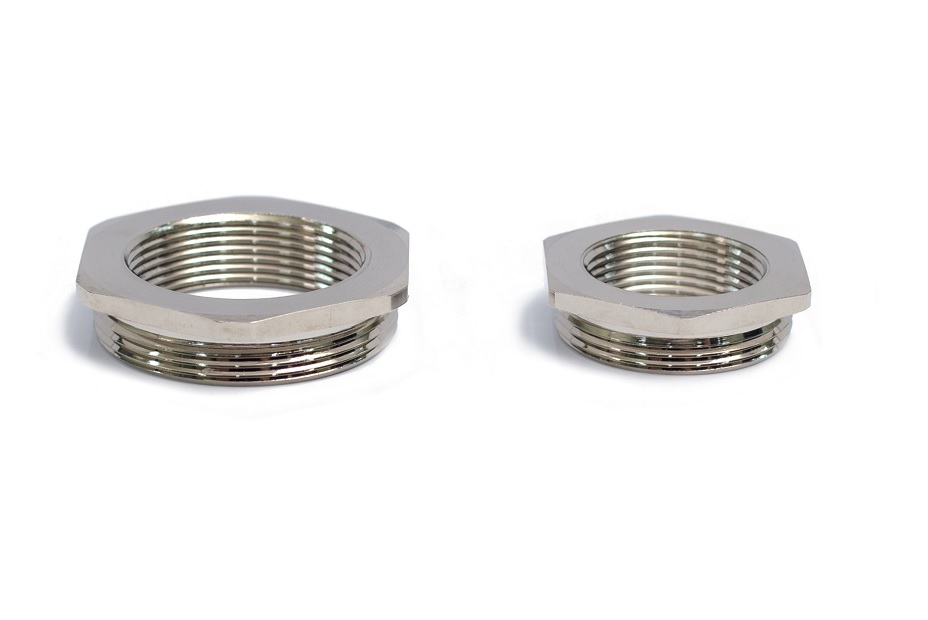

PG Series

Model and Size

Model Dimension File
Model Thread A Thread B GL(mm) H(mm) D1(mm) DWG 3D PDF
BC MRH-PG0907 PG9 PG7 6 9 15.2
BC MRH-PG1107 PG11 PG7 6 9 18.6
BC MRH-PG1109 PG11 PG9 6 9 18.6
BC MRH-PG1309 PG13.5 PG9 6.5 9.5 20.4
BC MRH-PG1609 PG16 PG9 6.5 9.5 22.5
BC MRH-PG1611 PG16 PG11 6.5 9.5 22.5
BC MRH-PG1613 PG16 PG13.5 6.5 9.5 22.5
BC MRH-PG2111 PG21 PG11 7 10.3 28.3
BC MRH-PG2113 PG21 PG13.5 7 10.3 28.3
BC MRH-PG2116 PG21 PG16 7 10.3 28.3
BC MRH-PG2916 PG29 PG16 8 11.5 37
BC MRH-PG2921 PG29 PG21 8 11.5 37
BC MRH-PG3621 PG36 PG21 9 12.5 47
BC MRH-PG3629 PG36 PG29 9 12.5 47
BC MRH-PG4229 PG42 PG29 10 13.5 54
BC MRH-PG4236 PG42 PG36 10 13.5 54
BC MRH-PG4836 PG48 PG36 10 14 59.3
BC MRH-PG4842 PG48 PG42 10 14 59.3
