1. Material : Nickel-plated brass
2. Nut is optional.
**Dimensions and specifications are subject to change without notice.

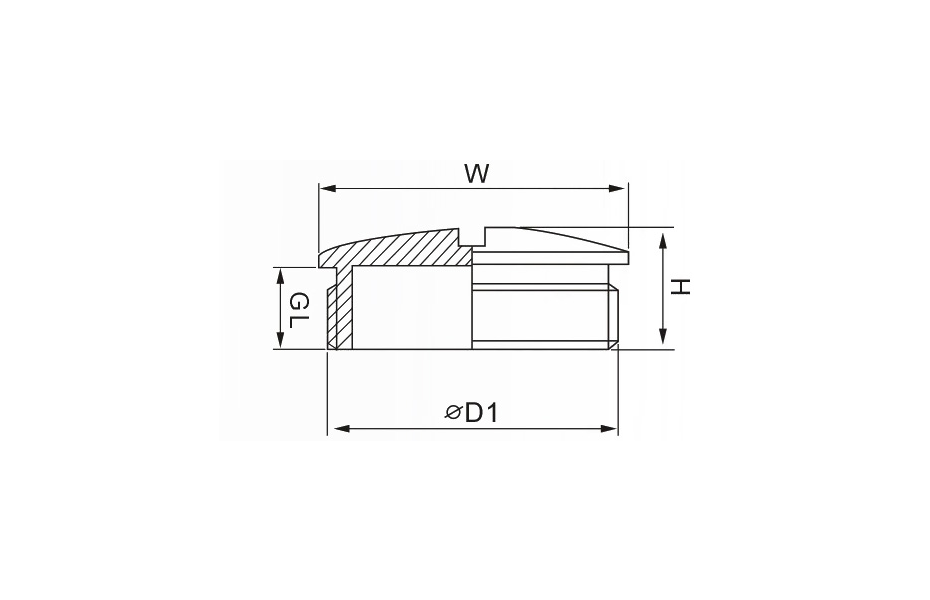

Model and Size
| Model |
Dimension |
File |
| Model |
Thread |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-MSP-M12 |
M12x1.5 |
8 |
5 |
14 |
12 |
|
|
|
| BC-MSP-M16 |
M16x1.5 |
9 |
6 |
18 |
16 |
|
|
|
| BC-MSP-M18 |
M18x1.5 |
10 |
6.5 |
20 |
17.4 |
|
|
|
| BC-MSP-M20 |
M20x1.5 |
10 |
7 |
23 |
20 |
|
|
|
| BC-MSP-M22 |
M22x1.5 |
10 |
7 |
25 |
22 |
|
|
|
| BC-MSP-M24 |
M24x1.5 |
10 |
7 |
27 |
24 |
|
|
|
| BC-MSP-M25 |
M25x1.5 |
10 |
7 |
28 |
25 |
|
|
|
| BC-MSP-M27 |
M27x1.5 |
11 |
7 |
29.5 |
27 |
|
|
|
| BC-MSP-M30 |
M30x1.5 |
12 |
8 |
32.5 |
30 |
|
|
|
| BC-MSP-M32 |
M32x1.5 |
12 |
8 |
35 |
32 |
|
|
|
| BC-MSP-M36 |
M36x1.5 |
12 |
8 |
38.5 |
36 |
|
|
|
| BC-MSP-M40 |
M40x1.5 |
15 |
9 |
44 |
40 |
|
|
|
| BC-MSP-M50 |
M50x1.5 |
16 |
10 |
54 |
50 |
|
|
|
| BC-MSP-M63 |
M60x1.5 |
16 |
10 |
67 |
63 |
|
|
|
