1. Material : Nickel-plated brass
2. Seal : NBR
3. O-ring : NBR
4. IP rating : IP66/67
**Dimensions and specifications are subject to change without notice.

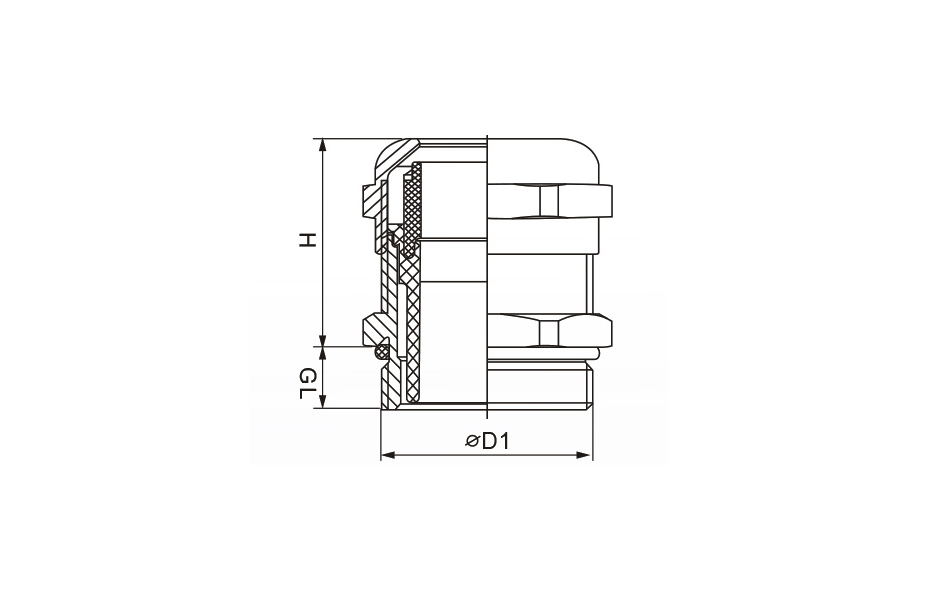

Model and Size
| Model |
Dimension |
File |
| Model |
Thread |
Cable ø(mm) |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-MPG7L |
PG7 |
4~7 |
15 |
10 |
14 |
12.5 |
|
|
|
| BC-MPG9L |
PG9 |
5~8 |
19 |
10 |
18 |
15.2 |
|
|
|
| BC-MPG11L |
PG11 |
6~10 |
20 |
10 |
20 |
18.6 |
|
|
|
| BC-MPG13.5L |
PG13.5 |
6~12 |
22 |
10 |
22 |
20.4 |
|
|
|
| BC-MPG16L |
PG16 |
7~14 |
21 |
10 |
24 |
22.5 |
|
|
|
| BC-MPG19L |
PG19 |
9~16 |
23.5 |
9 |
27 |
24 |
|
|
|
| BC-MPG21L |
PG21 |
13~18 |
24 |
12 |
30 |
28.3 |
|
|
|
| BC-MPG25L |
PG25 |
16~22 |
24 |
12 |
33 |
32 |
|
|
|
| BC-MPG29L |
PG29 |
18~25 |
29 |
12 |
40 |
36.7 |
|
|
|
| BC-MPG36L |
PG36 |
25~32 |
35 |
12 |
50 |
47 |
|
|
|
| BC-MPG42L |
PG42 |
32~38 |
36 |
15 |
58 |
54 |
|
|
|
| BC-MPG48L |
PG48 |
34~44 |
39 |
15 |
64 |
59.3 |
|
|
|
