1. Material : Polyamide(PA)
2. Seal : NBR
3. O-ring : EPDM
4. Color : Grey
**Dimensions and specifications are subject to change without notice.

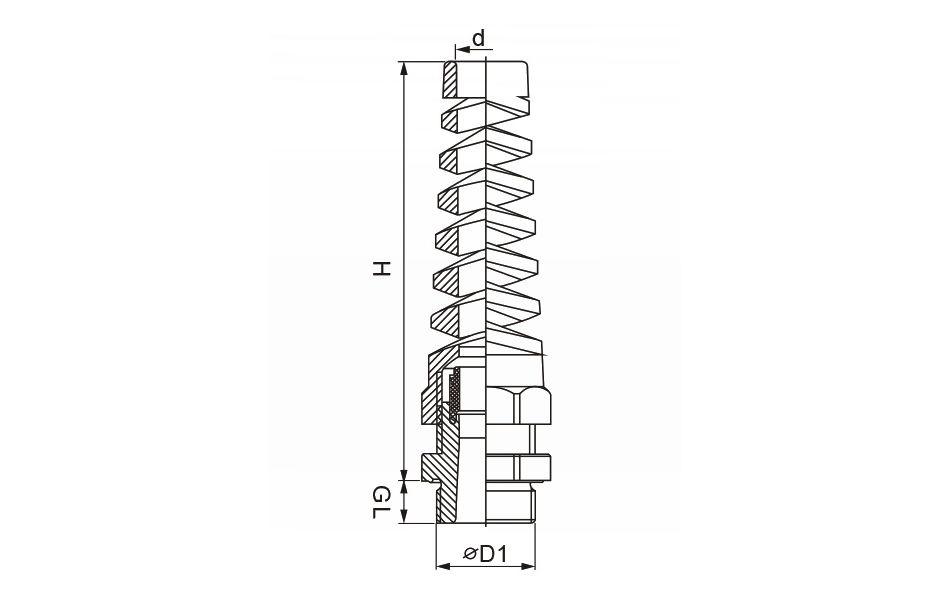

Model and Size
| Model |
Dimension |
File |
| Gray |
Thread |
Cable ø(mm) |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-BP-PG7L-G |
PG7 |
4~6.5 |
59 |
15 |
16 |
12.5 |
|
|
|
| BC-BP-PG9L-G |
PG9 |
4.5~8.5 |
68 |
15 |
19 |
152 |
|
|
|
| BC-BP-PG11L-G |
PG11 |
5~10 |
74 |
15 |
23 |
18.6 |
|
|
|
| BC-BP-PG713.5-G |
PG13.5 |
6~11 |
78 |
15 |
24 |
20.4 |
|
|
|
| BC-BP-PG16L-G |
PG16 |
8~13 |
82 |
15 |
27 |
22.5 |
|
|
|
| BC-BP-PG21L-G |
PG21 |
13~18 |
104 |
15 |
33 |
28.3 |
|
|
|
