1. BOXCO's diecast aluminum enclosures have excellent resistance against chemicals.
2. Aluminum pushbutton enclosures are no need additional machining when you install 22, 25 or 30mm push button and switches.
3. Our aluminum boxes have 1,2 or 3 push button entries.
**Dimensions and specifications are subject to change without notice.
Model and Size
| Size(included cover) |
Model |
Dimension |
File |
W×L×H
(mm) |
W×L×H
(inch) |
Model |
∮ |

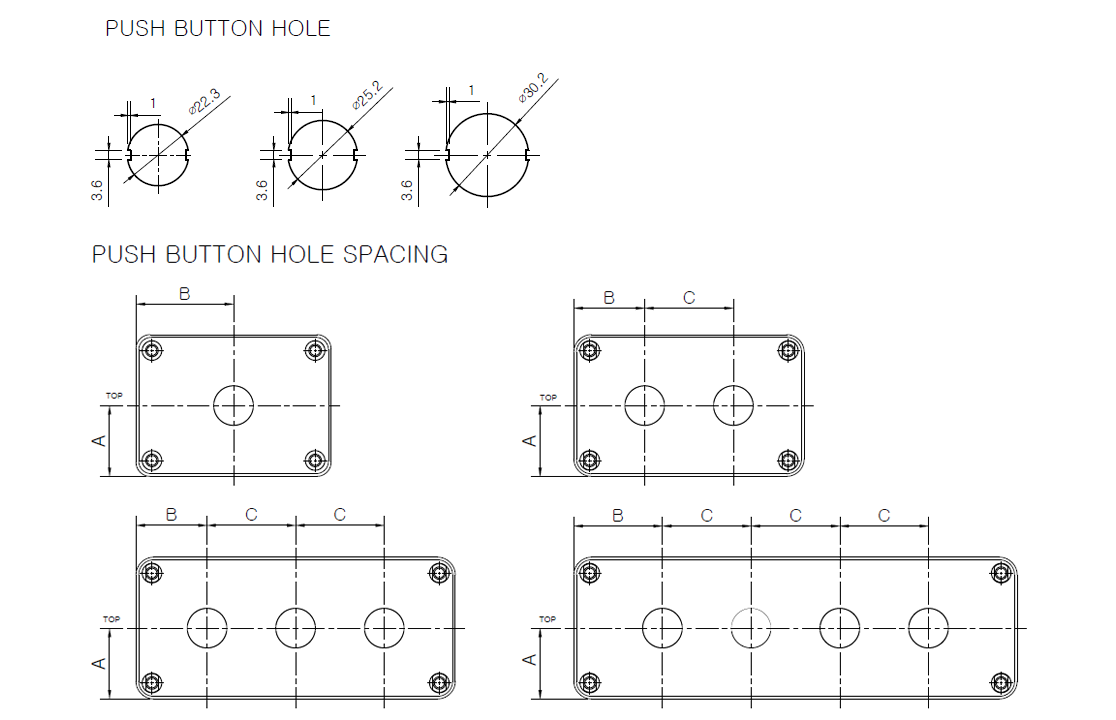

No of Holes |
A |
B |
C |
DWG |
3D |
PDF |
| 80×75×57 |
3.14×2.95×2.24 |
BC-AL-080806-2201 |
22 |
1 HOLE |
40 |
37.5 |
|
Down
|
|
Down
|
| 80×75×70 |
3.14×2.95×2.75 |
BC-AL-080807-2201 |
22 |
1 HOLE |
40 |
37.5 |
|
Down
|
|
Down
|
| 80×125×58 |
3.14×4.92×2.28 |
BC-AL-081306-2202 |
22 |
2 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×125×70 |
3.14×4.92×2.75 |
BC-AL-081307-2202 |
22 |
2 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×175×60 |
3.14×6.88×2.36 |
BC-AL-081806-2203 |
22 |
3 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×175×70 |
3.14×6.88×2.75 |
BC-AL-081807-2203 |
22 |
3 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×250×57 |
3.14×9.84×2.24 |
BC-AL-082506-2204 |
22 |
4 HOLE |
40 |
50 |
50 |
Down
|
|
Down
|
| 80×250×70 |
3.14×9.84×2.75 |
BC-AL-082507-2204 |
22 |
4 HOLE |
40 |
50 |
50 |
Down
|
|
Down
|
| 80×75×57 |
3.14×2.95×2.24 |
BC-AL-080806-2501 |
25 |
1 HOLE |
40 |
37.5 |
|
Down
|
|
Down
|
| 80×75×70 |
3.14×2.95×2.75 |
BC-AL-080807-2501 |
25 |
1 HOLE |
40 |
37.5 |
|
Down
|
|
Down
|
| 80×125×58 |
3.14×4.92×2.28 |
BC-AL-081306-2502 |
25 |
2 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×125×70 |
3.14×4.92×2.75 |
BC-AL-081307-2502 |
25 |
2 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×175×60 |
3.14×6.88×2.36 |
BC-AL-081806-2503 |
25 |
3 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×175×70 |
3.14×6.88×2.75 |
BC-AL-081807-2503 |
25 |
3 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×250×57 |
3.14×9.84×2.24 |
BC-AL-082506-2504 |
25 |
4 HOLE |
40 |
50 |
50 |
Down
|
|
Down
|
| 80×250×70 |
3.14×9.84×2.75 |
BC-AL-082507-2504 |
30 |
4 HOLE |
40 |
50 |
50 |
Down
|
|
Down
|
| 80×75×57 |
3.14×2.95×2.24 |
BC-AL-080806-3001 |
30 |
1 HOLE |
40 |
37.5 |
|
Down
|
|
Down
|
| 80×75×70 |
3.14×2.95×2.75 |
BC-AL-080807-3001 |
30 |
1 HOLE |
40 |
37.5 |
|
Down
|
|
Down
|
| 80×125×58 |
3.14×4.92×2.28 |
BC-AL-081306-3002 |
30 |
2 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×125×70 |
3.14×4.92×2.75 |
BC-AL-081307-3002 |
30 |
2 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×175×60 |
3.14×6.88×2.36 |
BC-AL-081806-3003 |
30 |
3 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×175×70 |
3.14×6.88×2.75 |
BC-AL-081807-3003 |
30 |
3 HOLE |
40 |
37.5 |
50 |
Down
|
|
Down
|
| 80×250×57 |
3.14×9.84×2.24 |
BC-AL-082506-3004 |
30 |
4 HOLE |
40 |
50 |
50 |
Down
|
|
Down
|
| 80×250×70 |
3.14×9.84×2.75 |
BC-AL-082507-3004 |
30 |
4 HOLE |
40 |
50 |
50 |
Down
|
|
Down
|
