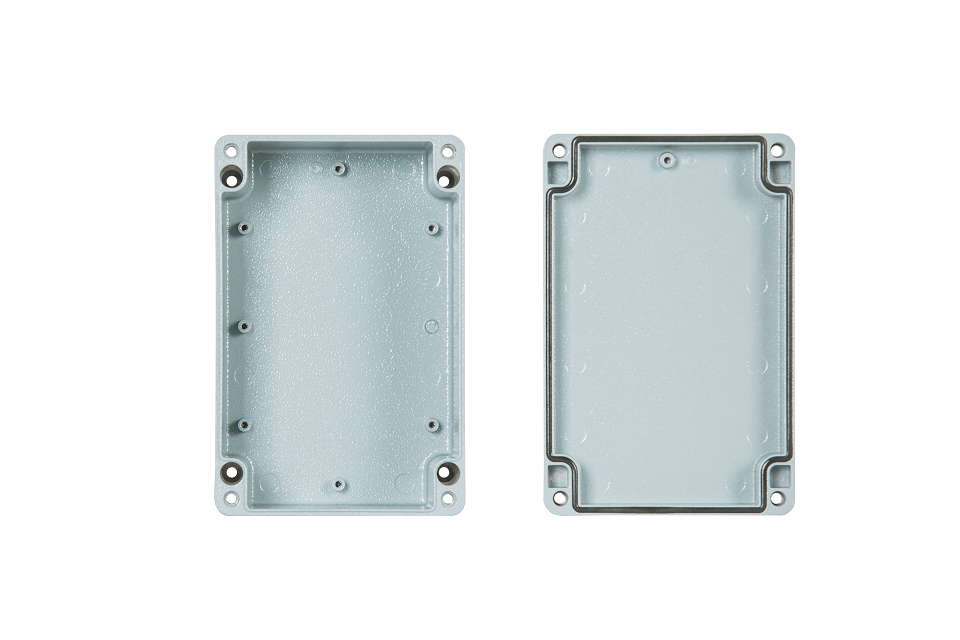

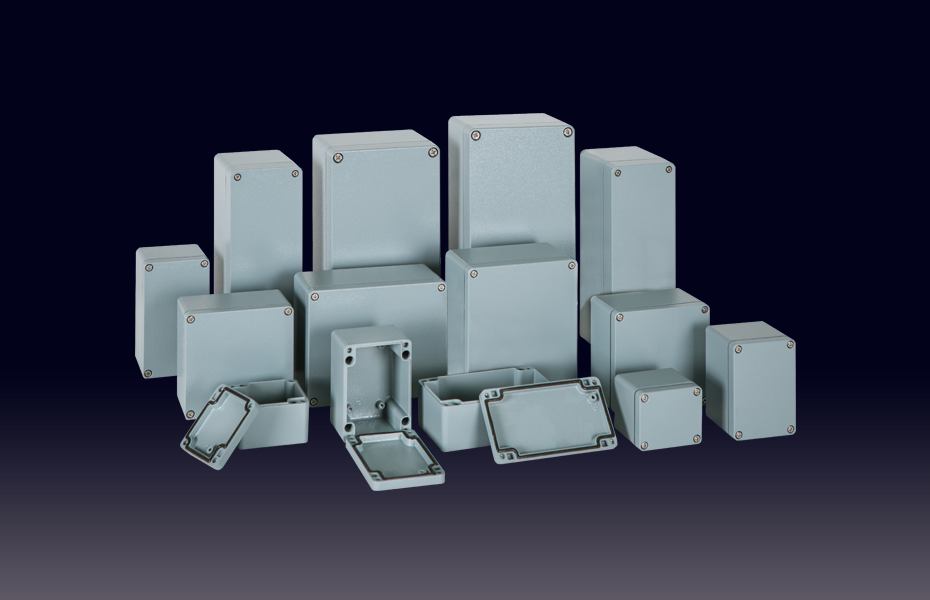

Aluminum S enclosure

1. Screw type, RAL7001

**Dimensions and specifications are subject to change without notice.

Online Inquiry LIST

Size(included cover)		Model	Mounting Plate	Plate Dimension		File
W1×L1×H1 (mm)	W1×L1×H1 (inch)	Aluminum box	Steel Mounting Plate	M1	M2	DWG	3D	PDF
60×70×50	2.36×2.76×1.97	BC-ALS-060705	0607 SA			Down		Down
70×100×55	2.76×3.94×2.17	BC-ALS-071006	0710 SA			Down		Down
70×128×55	2.76×5.04×2.17	BC-ALS-071306	0713 SA			Down		Down
70×171×55	2.76×6.73×2.17	BC-ALS-071706	0717 SA			Down		Down
80×230×80	3.15×9.06×3.15	BC-ALS-082308	0823 SA			Down		Down
110×110×55	4.33×4.33×2.17	BC-ALS-111106	1111 SA			Down		Down
125×150×65	4.92×5.91×2.56	BC-ALS-131507	1315 SA			Down		Down
125×190×80	4.92×7.48×3.15	BC-ALS-131908	1319 SA			Down		Down
