Aluminum enclosure

Aluminum enclosure

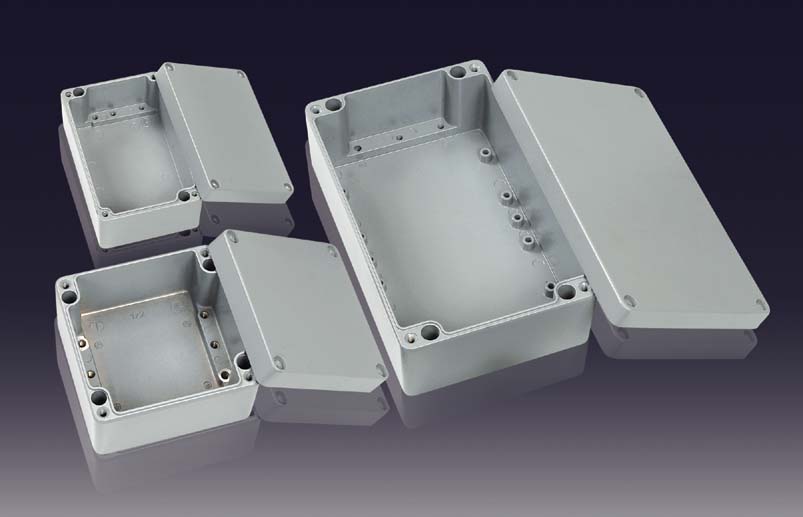

1. BOXCO's diecast aluminum enclosures have excellent resistance against chemicals.
2. It is sealed enclosure with Type 4X rating and can be used in wide temperature range.
3. BOXCO IP67 rated waterproof enclosures are proper to be used for indoor, outdoor or coastal area in harmful environment where expected to be contact with sea water.

**Dimensions and specifications are subject to change without notice.

Online Inquiry LIST

Specification

IP rating: IP 66/67
IK Rating: IK 08

Model and Size

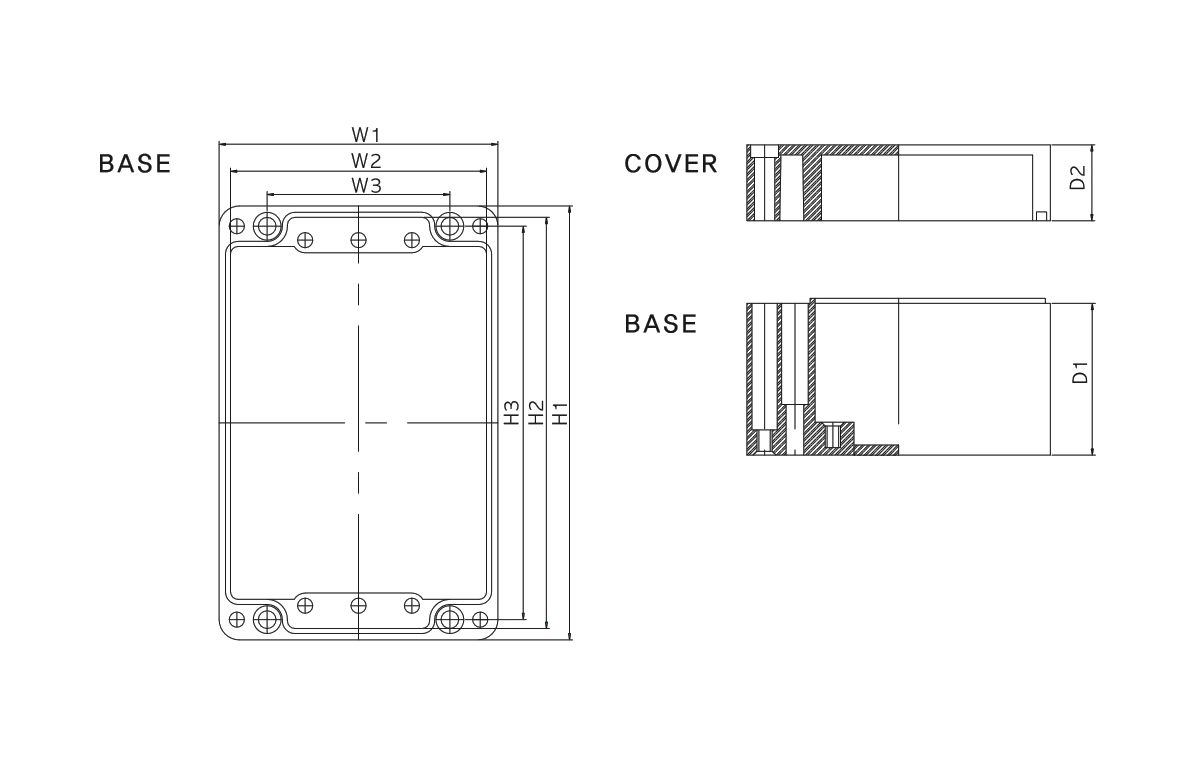

Size(included cover)		Model	Mounting Plate	Plate Dimension		File
W1×L1×H1 (mm)	W1×L1×H1 (inch)	Aluminum box	Steel Mounting Plate	M1	M2	DWG	3D	PDF
46×51×32	1.81×2.00×1.25	BC-AL-050503				Down		Down
64×58×34	2.51×2.28×1.33	BC-AL-060603				Down		Down
64×58×46	2.51×2.28×1.81	BC-AL-060605				Down		Down
64×98×34	2.51×3.85×1.33	BC-AL-061003				Down		Down
64×98×46	2.51×3.85×1.81	BC-AL-061005				Down		Down
64×150×34	2.51×5.90×1.33	BC-AL-061503				Down		Down
64×150×46	2.51×5.90×1.81	BC-AL-061505				Down		Down
80×75×57	3.14×2.95×2.24	BC-AL-080806	0808A			Down		Down
80×75×70	3.14×2.95×2.75	BC-AL-080807	0808A			Down		Down
80×125×58	3.14×4.92×2.28	BC-AL-081306	0813A			Down		Down
80×125×70	3.14×4.92×2.75	BC-AL-081307	0813A			Down		Down
80×175×60	3.14×6.88×2.36	BC-AL-081806	0818A			Down		Down
80×175×70	3.14×6.88×2.75	BC-AL-081807	0818A			Down		Down
80×250×57	3.14×9.84×2.24	BC-AL-082506	0825A			Down		Down
80×250×70	3.14×9.84×2.75	BC-AL-082507	0825A			Down		Down
100×100×81	3.93×3.93×3.18	BC-AL-101008	1010A			Down		Down
100×160×80	3.93×6.29×3.15	BC-AL-101608	1016A			Down		Down
120×122×81	4.72×4.80×3.18	BC-AL-121208	1212A			Down		Down
120×220×81	4.72×8.66×3.18	BC-AL-122208	1222A			Down		Down
120×220×91	4.72×8.66×3.58	BC-AL-122209	1222A			Down		Down
120×360×81	4.72×14.17×3.18	BC-AL-123608	1236A			Down		Down
140×220×80	5.51×8.66×3.15	BC-AL-142208	1422A			Down		Down
150×132×90	5.90×5.19×3.54	BC-AL-151309	1513A			Down		Down
160×160×91	6.29×6.29×3.58	BC-AL-161609	1616A			Down		Down
160×210×100	6.29×8.26×3.93	BC-AL-162110	1621A			Down		Down
160×260×90	6.29×10.23×3.54	BC-AL-162609	1626A			Down		Down
160×360×91	6.29×14.17×3.58	BC-AL-163609	1636A			Down		Down
180×180×101	7.08×7.08×3.97	BC-AL-181810	1818A			Down		Down
230×200×110	9.05×7.87×4.37	BC-AL-232011	2320A			Down		Down
230×200×180	9.05×7.87×7.08	BC-AL-232018	2320A			Down		Down
230×280×110	9.05×11.02×4.37	BC-AL-232811	2328A			Down		Down
230×330×110	9.05×12.99×4.37	BC-AL-233311	2333A			Down		Down
230×400×111	9.05×15.75×4.37	BC-AL-234011	2340A			Down		Down
313×403×110	12.32×15.90×4.37	BC-AL-314011	3140A			Down		Down
313×403×180	12.32×15.90×7.12	BC-AL-314018	3140A			Down		Down
