K Series

S Series K Type

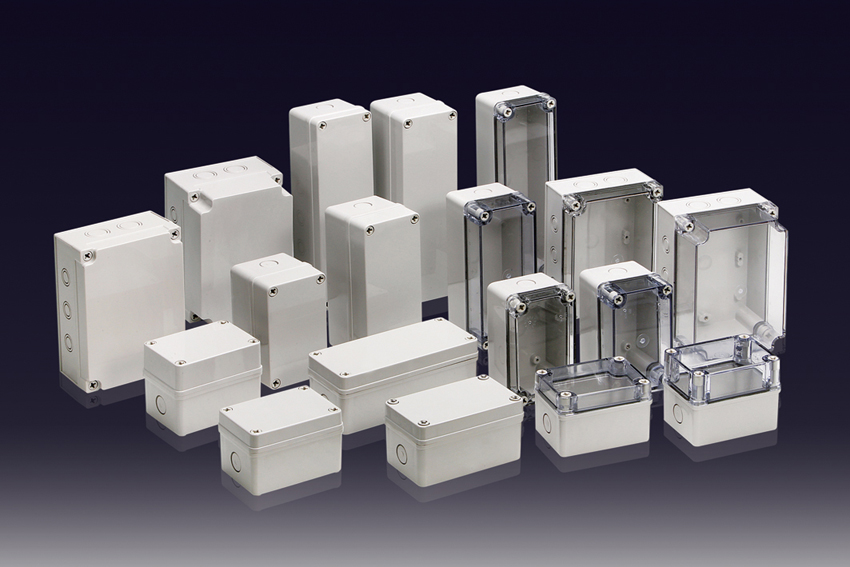

1. BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

**Dimensions and specifications are subject to change without notice.

Online Inquiry LIST

Specification

IP rating: IP 66/67
IK Rating: IK 08
Temperature range: ABS : - 40 ~ + 70℃ | Polycarbonate(PC) : - 40 ~ + 110℃
Flammability Rating: ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB

Model and Size

Size(included cover)		Model				Mounting Plate			Plate Dimension		File
W1×L1×H1 (mm)	W1×L1×H1 (inch)	ABS Grey cover	ABS Transparent cover	PC Grey cover	PC Transparent cover	Plastic G type	Plastic P type	Steel S type	M1	M2	DWG	3D	PDF
80×110×70	3.15×4.33×2.76	BC-AGS-081107-K	BC-ATS-081107-K	BC-CGS-081107-K	BC-CTS-081107-K						Down		Down
80×110×85	3.15×4.33×3.35	BC-AGS-081108-K	BC-ATS-081108-K	BC-CGS-081108-K	BC-CTS-081108-K						Down		Down
80×130×70	3.15×5.12×2.76	BC-AGS-081307-K	BC-ATS-081307-K	BC-CGS-081307-K	BC-CTS-081307-K						Down		Down
80×130×85	3.15×5.12×3.35	BC-AGS-081308-K	BC-ATS-081308-K	BC-CGS-081308-K	BC-CTS-081308-K						Down		Down
80×180×70	3.15×7.09×2.76	BC-AGS-081807-K	BC-ATS-081807-K	BC-CGS-081807-K	BC-CTS-081807-K						Down		Down
80×180×85	3.15×7.09×3.35	BC-AGS-081808-K	BC-ATS-081808-K	BC-CGS-081808-K	BC-CTS-081808-K						Down		Down
80×250×70	3.15×9.84×2.76	BC-AGS-082507-K	BC-ATS-082507-K	BC-CGS-082507-K	BC-CTS-082507-K						Down		Down
80×250×85	3.15×9.84×3.35	BC-AGS-082508-K	BC-ATS-082508-K	BC-CGS-082508-K	BC-CTS-082508-K						Down		Down
125×175×75	4.92×6.89×2.95	BC-AGS-121707-K	BC-ATS-121707-K	BC-CGS-121707-K	BC-CTS-121707-K	1217 G	1217 P	1217 S	110	159	Down		Down
125×175×100	4.92×6.89×3.94	BC-AGS-121710-K	BC-ATS-121710-K	BC-CGS-121710-K	BC-CTS-121710-K	1217 G	1217 P	1217 S	110	159	Down		Down
