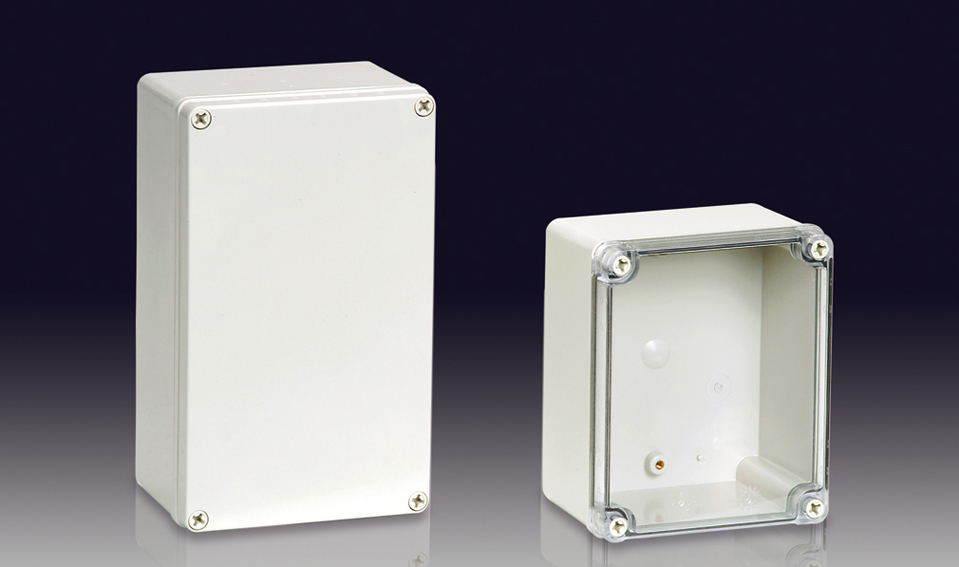

S Series

1. S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
when tightening screw.
2. Our electrical junction box is designed as 4 side sliding type to be strong against impact.

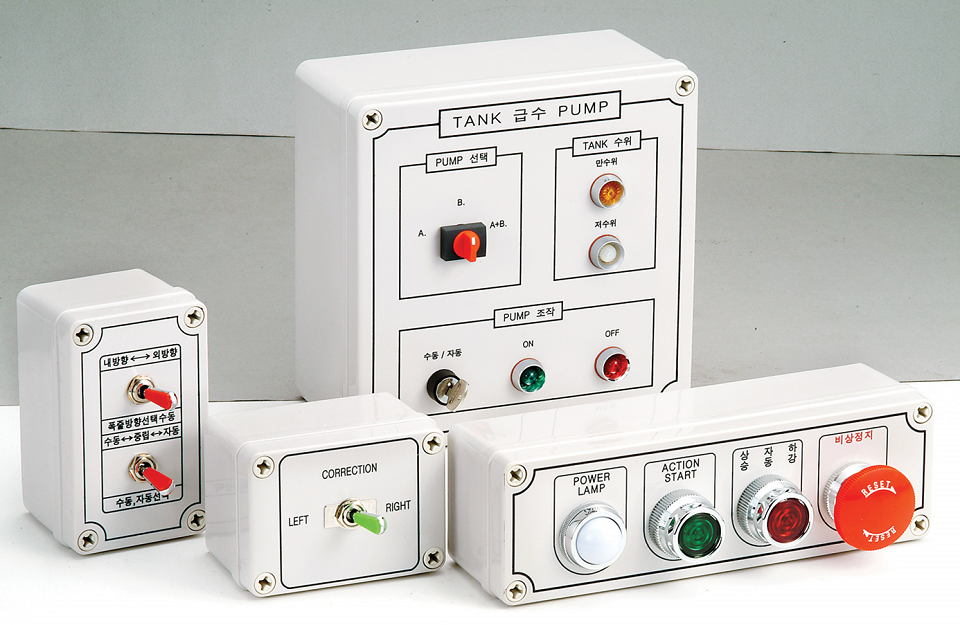

3. BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.




**Dimensions and specifications are subject to change without notice.

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃ | PC : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB | PC : 94-V-0, 5VA, HB

Model and Size

Size(included cover) Model Mounting Plate Dimension File
W×L×H
(mm)
W×L×H
(inch)
ABS
Grey cover
ABS
Transparent cover
PC
Grey cover
PC
Transparent cover
Steel
1.6mm
Plastic
3~4.5mm
W1 W2 W3 W4 L1 L2 L3 L4 H1 H2 H3 H4 M1
Plate
M2
Plate
DWG 3D PDF
50×65×45 1.97×2.56×1.77 BC-AGS-050604 BC-ATS-050604 BC-CGS-050604 BC-CTS-050604 0506 S 50 42 37 0 65 57 52 40 45 33 15 30 (40) (55) Down
50×65×55 1.97×2.56×2.17 BC-AGS-050605 BC-ATS-050605 BC-CGS-050605 BC-CTS-050605 0506 S 50 42 37 0 65 57 52 40 55 43 15 40 (40) (55) Down
65×95×55 2.56×3.74×2.17 BC-AGS-060905 BC-ATS-060905 BC-CGS-060905 BC-CTS-060905 0609 S 65 55 47 0 95 85 77 65 55 41 15 40 (54) (84) Down
75×105×55 2.95×4.13×2.17 BC-AGS-071005 BC-ATS-071005 BC-CGS-071005 BC-CTS-071005 0710 S 75 65 57 35 105 95 87 75 55 42 15 40 (65) (93) Down
80×80×60 3.15×3.15×2.36 BC-AGS-080806 BC-ATS-080806 BC-CGS-080806 BC-CTS-080806 0808 S 80 70 62 0 80 70 62 50 60 46.8 15 45 (67.5) (67.5) Down
80×110×45 3.15×4.33×1.77 BC-AGS-081104 BC-ATS-081104 BC-CGS-081104 BC-CTS-081104 0811 S 0811 P 80 70 62 40 110 100 92 80 45 31.8 20 25 65 95 Down
80×110×70 3.15×4.33×2.76 BC-AGS-081107 BC-ATS-081107 BC-CGS-081107 BC-CTS-081107 0811 S 0811 P 80 70 62 40 110 100 92 80 70 57 20 50 65 95 Down
80×110×85 3.15×4.33×3.35 BC-AGS-081108 BC-ATS-081108 BC-CGS-081108 BC-CTS-081108 0811 S 0811 P 80 70 62 40 110 100 92 80 85 72 20 65 65 95 Down Down
80×110×100 3.15×4.33×3.94 BC-AGS-081110 BC-ATS-081110 BC-CGS-081110 BC-CTS-081110 0811 S 0811 P 80 70 62 40 110 100 92 80 100 87 35 65 65 95
80×130×70 3.15×5.12×2.76 BC-AGS-081307 BC-ATS-081307 BC-CGS-081307 BC-CTS-081307 0813 S 0813 P 80 70 62 40 130 123 112 100 70 57 20 50 65 115 Down
80×130×85 3.15×5.12×3.35 BC-AGS-081308 BC-ATS-081308 BC-CGS-081308 BC-CTS-0 81308 0813 S 0813 P 80 70 62 40 130 123 112 100 85 72 35 50 65 115 Down
80×160×55 3.15×6.30×2.17 BC-AGS-081605 BC-ATS-081605 BC-CGS-081605 BC-CTS-081605 0816 S 0816 P 80 75 68 58 160 155 148 137 55 42 15 40 68 148 Down
80×160×85 3.15×6.30×3.35 BC-AGS-081608 BC-ATS-081608 BC-CGS-081608 BC-CTS-081608 0816 S 0816 P 80 74 58 58 160 155 148 137 85 72 15 70 68 148 Down
80×180×70 3.15×7.09×2.76 BC-AGS-081807 BC-ATS-081807 BC-CGS-081807 BC-CTS-081807 0818 S 0818 P 80 69 62 40 180 169 62 150 70 57 20 50 65 165 Down
80×180×85 3.15×7.09×3.35 BC-AGS-081808 BC-ATS-081808 BC-CGS-081808 BC-CTS-081808 0818 S 0818 P 80 69 62 40 180 169 162 150 85 72 35 50 65 165 Down
80×250×70 3.15×9.84×2.76 BC-AGS-082507 BC-ATS-082507 BC-CGS-082507 BC-CTS-082507 0825 S 0825 P 80 67 62 40 250 235 232 220 70 56 20 50 65 235 Down
80×250×85 3.15×9.84×3.35 BC-AGS-082508 BC-ATS-082508 BC-CGS-082508 BC-CTS-082508 0825 S 0825 P 80 67 62 40 250 235 232 220 85 72 35 50 65 235 Down
100×100×75 3.94×3.94×2.95 BC-AGS-101007 BC-ATS-101007 BC-CGS-101007 BC-CTS-101007 1010 S 1010 P 100 88 82 70 100 88 82 60 75 62 20 55 82 82 Down
100×100×100 3.94×3.94×3.94 BC-AGS-101010 BC-ATS-101010 BC-CGS-101010 BC-CTS-101010 1010 S 1010 P 100 88 82 70 100 88 82 60 100 87 20 80 82 82 Down
100×185×70 3.94×7.28×2.76 BC-AGS-101807 BC-ATS-101807 BC-CGS-101807 BC-CTS-101807 1018 S 100 92 82 60 185 177 167 139 70 55.6 15 55 (80) (164.5) Down
100×200×70 3.94×7.87×2.76 BC-AGS-102007 BC-ATS-102007 BC-CGS-102007 BC-CTS-102007 1020 S 1020 P 100 89 82 60 200 189 182 158 70 55.6 15 55 76.5 176 Down
100×230×70 3.94×9.06×2.76 BC-AGS-102307 BC-ATS-102307 BC-CGS-102307 BC-CTS-102307 1023 S 1020 P 100 89 82 60 230 219 212 184 70 55.6 15 55 (80) (210) Down
125×125×75 4.92×4.92×2.95 BC-AGS-121207 BC-ATS-121207 BC-CGS-121207 BC-CTS-121207 1212 S 1212 P 125 114 105 90 125 114 105 70 75 60.8 20 55 107 107 Down
125×125×100 4.92×4.92×3.94 BC-AGS-121210 BC-ATS-121210 BC-CGS-121210 BC-CTS-121210 1212 S 1212 P 125 114 105 90 125 114 105 70 100 85.8 20 80 107 107 Down
125×175×75 4.92×6.89×2.95 BC-AGS-121707 BC-ATS-121707 BC-CGS-121707 BC-CTS-121707 1217 S 1217 P 125 118 109 90 175 165 157 140 75 61 25 50 110 160 Down
125×175×100 4.92×6.89×3.94 BC-AGS-121710 BC-ATS-121710 BC-CGS-121710 BC-CTS-121710 1217 S 1217 P 125 118 109 90 175 165 157 140 100 85.8 50 50 110 160 Down
140×170×95 5.51×6.69×3.74 BC-AGS-141709 BC-ATS-141709 BC-CGS-141709 BC-CTS-141709 1417 S 1417 P 140 135 122 102 170 165 152 130 95 81.8 20 75 126 156 Down
140×230×95 5.51×9.06×3.74 BC-AGS-142309 BC-ATS-142309 BC-CGS-142309 BC-CTS-142309 1423 S 1423 P 140 132 122 100 230 222 212 190 95 81.8 20 75 122.5 212 Down
150×150×75 5.91×5.91×2.95 BC-AGS-151507 BC-ATS-151507 BC-CGS-151507 BC-CTS-151507 1515 S 1515 P 150 144 132 110 150 144 132 110 75 61.6 20 55 123 123 Down
150×150×100 5.91×5.91×3.94 BC-AGS-151510 BC-ATS-151510 BC-CGS-151510 BC-CTS-151510 1515 S 1515 P 150 144 132 110 150 144 132 110 100 87 20 80 123 123 Down
150×200×45 5.91×7.87×1.77 BC-AGS-152004 BC-ATS-152004 BC-CGS-152004 BC-CTS-152004 1520 S 1520 P 150 140 132 110 200 190 182 160 45 32.3 20 25 129 179 Down
150×200×75 5.91×7.87×2.95 BC-AGS-152007 BC-ATS-152007 BC-CGS-152007 BC-CTS-152007 1520 S 1520 P 150 140 132 110 200 190 182 160 75 61.6 20 55 129 179 Down
150×200×100 5.91×7.87×3.94 BC-AGS-152010 BC-ATS-152010 BC-CGS-152010 BC-CTS-152010 1520 S 1520 P 150 140 132 110 200 190 182 160 100 86 20 80 129 179 Down
150×200×130 5.91×7.87×5.12 BC-AGS-152013 BC-ATS-152013 BC-CGS-152013 BC-CTS-152013 1520 S 1520 P 150 140 132 110 200 190 182 160 130 116 20 110 129 179 Down
150×200×160 5.91×7.87×6.30 BC-AGS-152016 BC-ATS-152016 BC-CGS-152016 BC-CTS-152016 1520 S 1520 P 150 140 132 110 200 190 182 160 160 146 50 110 129 179 Down
150×250×100 5.91×9.84×3.94 BC-AGS-152510 BC-ATS-152510 BC-CGS-152510 BC-CTS-152510 1525 S 1525 P 150 138 132 110 250 238 232 210 100 86.6 20 80 129 229 Down
150×250×130 5.91×9.84×5.12 BC-AGS-152513 BC-ATS-152513 BC-CGS-152513 BC-CTS-152513 1525 S 1525 P 150 138 132 110 250 238 232 210 130 117 50 80 129 229 Down
160×160×70 6.30×6.30×2.76 BC-AGS-161607 BC-ATS-161607 BC-CGS-161607 BC-CTS-161607 1616 S 1616 P 160 151 142 120 160 151 142 120 70 55.8 15 55 144.3 144.3 Down
200×200×100 7.87×7.87×3.94 BC-AGS-202010 BC-ATS-202010 BC-CGS-202010 BC-CTS-202010 2020 S 2020 P 200 188 182 150 200 188 182 120 100 86.8 20 80 179 179 Down
200×200×130 7.87×7.87×5.12 BC-AGS-202013 BC-ATS-202013 BC-CGS-202013 BC-CTS-202013 2020 S 2020 P 200 188 182 150 200 188 182 120 130 116.8 20 110 179 179 Down
200×200×160 7.87×7.87×6.30 BC-AGS-202016 BC-ATS-202016 BC-CGS-202016 BC-CTS-202016 2020 S 2020 P 200 188 182 150 200 188 182 120 160 147 20 140 179 179 Down
200×200×190 7.87×7.87×7.48 BC-AGS-202019 BC-ATS-202019 BC-CGS-202019 BC-CTS-202019 2020 S 2020 P 200 188 182 150 200 188 182 120 190 177 50 140 179 179 Down
210×230×100 8.27×9.06×3.94 BC-AGS-212310 BC-ATS-212310 BC-CGS-212310 BC-CTS-212310 2123 S 210 197 192 160 230 217 212 180 100 87 20 80 (196) (216) Down
