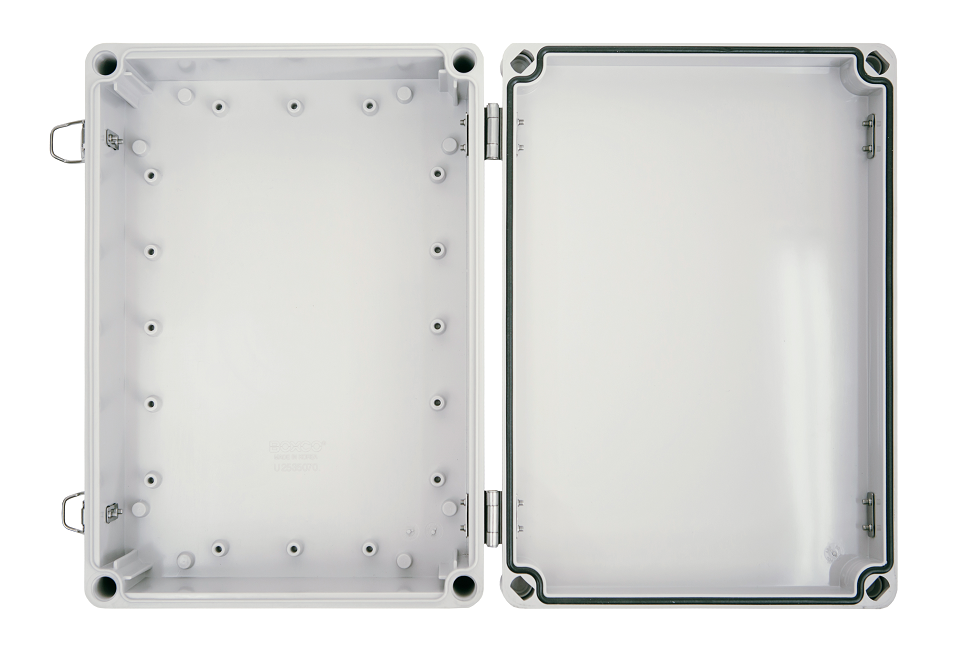

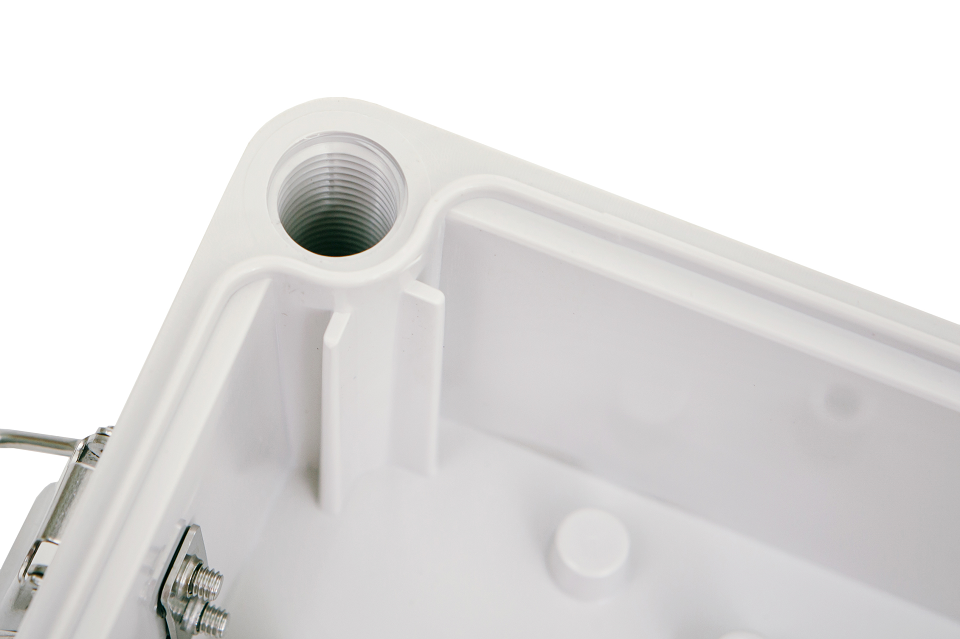

1. SUS hinge, SUS latch type control box. Waterproof enclosure without insert.
2. Waterproof box for control panel
**Dimensions and specifications are subject to change without notice.
Specification
- IP rating
- IP 66/67
- IK Rating
- IK 08
- Temperature range
- ABS : - 40 ~ + 70℃ | PC : - 40 ~ + 110℃
- Flammability Rating
- ABS : 94-HB | PC : 94-V-0, 5VA, HB
Model and Size
| Size(included cover) |
Model |
Mounting Plate |
Plate
Dimension |
File |
W1×L1×H1
(mm) |
W1×L1×H1
(inch) |
ABS
Grey cover |
ABS
Transparent cover |
PC
Grey cover |
PC
Transparent cover |
Plastic
G type |
Plastic
C type |
Plastic
P type |
Steel |
M1 |
M2 |
DWG |
3D |
PDF |
| 80x110x85 |
3.15x4.33x3.35 |
BC-AGUH-081108 |
|
|
|
0811 G |
|
0811 P |
0811 S |
|
|
Down
|
|
Down
|
| 110x80x85 |
4.33x3.15x3.35 |
BC-AGUH-110808 |
|
|
|
0811 G |
|
0811 P |
0811 S |
|
|
Down
|
|
Down
|
| 80X110X100 |
3.15x4.33x3.94 |
BC-AGUH-081110 |
|
|
|
0811 G |
|
0811 P |
0811 S |
|
|
Down
|
|
Down
|
| 110X80X100 |
4.33x3.15x3.94 |
BC-AGUH-110810 |
|
|
|
0811 G |
|
0811 P |
0811 S |
|
|
Down
|
|
Down
|
| 80x140x85 |
3.15x5.51x3.35 |
BC-AGUH-081408 |
|
|
|
0814 G |
|
|
|
|
|
|
|
|
| 140x80x85 |
5.51x3.15x3.35 |
BC-AGUH-140808 |
|
|
|
0814 G |
|
|
|
|
|
|
|
|
| 80x170x85 |
3.15x6.69x3.35 |
BC-AGUH-081708 |
|
|
|
0817 G |
|
|
|
|
|
|
|
|
| 170x80x85 |
6.69x3.15x3.35 |
BC-AGUH-170808 |
|
|
|
0817 G |
|
|
|
|
|
|
|
|
| 80x180x70 |
3.15x7.09x2.76 |
BC-AGUH-081807 |
|
|
|
0818 G |
|
0818 P |
0818 S |
|
|
|
|
|
| 180x80x70 |
7.09x3.15x2.76 |
BC-AGUH-180807 |
|
|
|
0818 G |
|
0818 P |
0818 S |
|
|
|
|
|
| 80x180x85 |
3.15x7.09x3.35 |
BC-AGUH-081808 |
|
|
|
0818 G |
|
0818 P |
0818 S |
|
|
|
|
|
| 180x80x85 |
7.09x3.15x3.35 |
BC-AGUH-180808 |
|
|
|
0818 G |
|
0818 P |
0818 S |
|
|
|
|
|
| 80x230x85 |
3.15x9.06x3.35 |
BC-AGUH-082308 |
|
|
|
0823 G |
|
|
|
|
|
|
|
|
| 230x80x85 |
9.06x3.15x3.35 |
BC-AGUH-230808 |
|
|
|
0823 G |
|
|
|
|
|
|
|
|
| 100×270×80 |
3.94x10.63x3.15 |
BC-AGUH-102708 |
BC-ATUH-102708 |
BC-CGUH-102708 |
BC-CTUH-102708 |
1027 G |
|
|
1027 S |
|
|
|
|
|
| 270x100x80 |
10.63x3.94x3.15 |
BC-AGUH-271008 |
BC-ATUH-271008 |
BC-CGUH-271008 |
BC-CTUH-271008 |
1027 G |
|
|
1027 S |
|
|
|
|
|
| 140x170x95 |
5.51x6.69x3.74 |
BC-AGUH-141709 |
|
|
|
1417 G |
|
1417 P |
1417 S |
|
|
|
|
|
| 170x140x95 |
6.69x5.51x3.74 |
BC-AGUH-171409 |
|
|
|
1417 G |
|
1417 P |
1417 S |
|
|
|
|
|
| 140x230x75 |
5.51x9.06x2.95 |
BC-AGUH-142307 |
|
|
|
1423 G |
|
1423 P |
1423 S |
|
|
|
|
|
| 230x140x75 |
9.06x5.51x2.95 |
BC-AGUH-231407 |
|
|
|
1423 G |
|
1423 P |
1423 S |
|
|
|
|
|
| 140x230x95 |
5.51x9.06x3.74 |
BC-AGUH-142309 |
|
|
|
1423 G |
|
1423 P |
1423 S |
|
|
|
|
|
| 230x140x95 |
9.06x5.51x3.74 |
BC-AGUH-231409 |
|
|
|
1423 G |
|
1423 P |
1423 S |
|
|
|
|
|
| 140x230x125 |
5.51x9.06x4.92 |
BC-AGUH-142312 |
|
|
|
1423 G |
|
1423 P |
1423 S |
|
|
|
|
|
| 230x140x125 |
9.06x5.51x4.92 |
BC-AGUH-231412 |
|
|
|
1423 G |
|
1423 P |
1423 S |
|
|
|
|
|
| 110×310×80 |
4.33x12.21x3.15 |
BC-AGUH-113108 |
BC-ATUH-113108 |
BC-CGUH-113108 |
BC-CTUH-113108 |
1131 G |
|
|
1131 S |
|
|
|
|
|
| 210x210x110 |
8.27x8.27x4.33 |
BC-AGUH-212111 |
|
|
|
2020 G |
|
|
|
|
|
|
|
|
| 240x320x130 |
9.45x12.60x5.12 |
BC-AGUH-243213 |
|
|
|
2432 G |
|
|
|
|
|
|
|
|
| 320x240x130 |
12.60x9.45x5.12 |
BC-AGUH-322413 |
|
|
|
2432 G |
|
|
|
|
|
|
|
|
| 250×350×100 |
9.84x13.78x3.94 |
BC-AGUH-253510 |
BC-ATUH-253510 |
BC-CGUH-253510 |
BC-CTUH-253510 |
2535 G |
2535 C |
|
2535 SQ |
210 |
310 |
|
|
|
| 350×250×100 |
13.78x9.84x3.94 |
BC-AGUH-352510 |
BC-ATUH-352510 |
BC-CGUH-352510 |
BC-CTUH-352510 |
2535 G |
2535 C |
|
2535 SQ |
210 |
310 |
|
|
|
