P Series

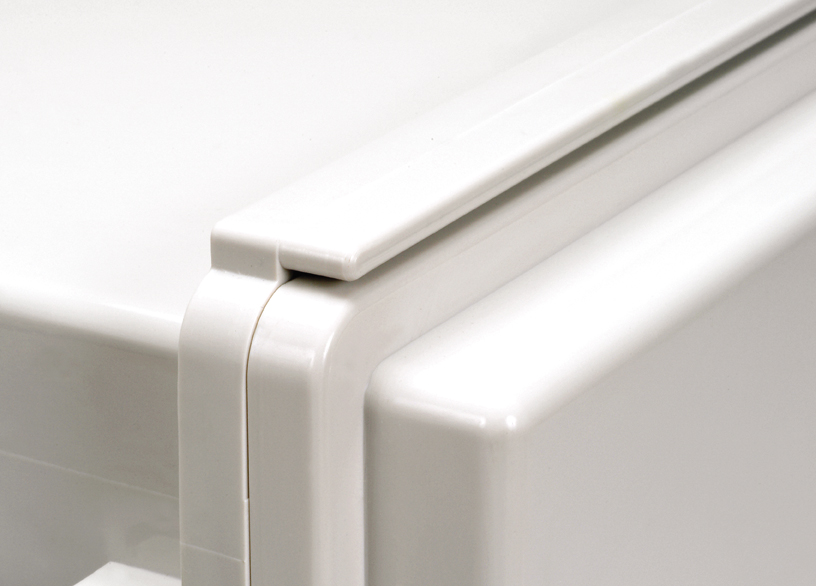

1. BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
2. Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.

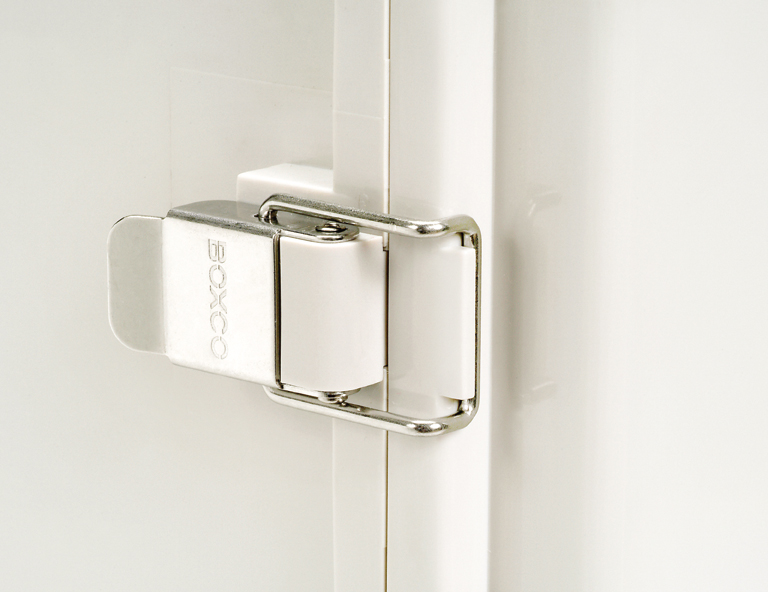

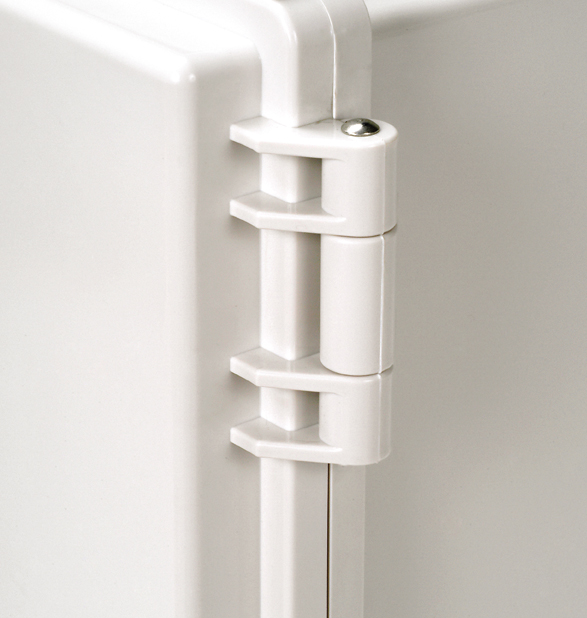

3. Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
4. Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.


**Dimensions and specifications are subject to change without notice.
Online Inquiry LIST

Specification

IP rating
IP 66/67
IK Rating
IK 08
Temperature range
ABS : - 40 ~ + 70℃ | Polycarbonate(PC) : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB

Model and Size

Size(included cover) Model Mounting Plate Mounting
Dimension		 File
W1×L1×H1
(mm)		 W1×L1×H1
(mm)		 ABS
Grey cover		 ABS
Transparent cover		 PC
Grey cover		 PC
Transparent cover		 Steel
S type		 Plastic
G type		 Plastic
PG type		 Plastic
P type		 M1 M2 DWG 3D PDF
90×120×70 3.54×4.72×2.76 BC-AGP-091207 BC-ATP-091207 BC-CGP-091207 BC-CTP-091207 0912 S 0811 P 65 95 Down Down
90×120×85 3.54×4.72×3.35 BC-AGP-091208 BC-ATP-091208 BC-CGP-091208 BC-CTP-091208 0912 S 0811 P 65 95 Down Down
100×150×70 3.94×5.91×2.76 BC-AGP-101507 BC-ATP-101507 BC-CGP-101507 BC-CTP-101507 0813 S 0813 P 65 115 Down Down
100×150×85 3.94×5.91×3.35 BC-AGP-101508 BC-ATP-101508 BC-CGP-101508 BC-CTP-101508 0813 S 0813 P 65 115 Down Down
110×210×75 4.33×8.27×2.95 BC-AGP-112107 BC-ATP-112107 BC-CGP-112107 BC-CTP-112107 1020 S 1121 P 77 176 Down Down
110×210×100 4.33×8.27×3.94 BC-AGP-112110 BC-ATP-112110 BC-CGP-112110 BC-CTP-112110 1020 S 1121 P 77 176 Down Down
110×260×75 4.33×10.24×2.95 BC-AGP-112607 BC-ATP-112607 BC-CGP-112607 BC-CTP-112607 1126 S 1126 P 76 225 Down Down
110×260×100 4.33×10.24×3.94 BC-AGP-112610 BC-ATP-112610 BC-CGP-112610 BC-CTP-112610 1126 S 1126 P 76 225 Down Down
135×155×85 5.31×6.10×3.35 BC-AGP-131508 BC-ATP-131508 BC-CGP-131508 BC-CTP-131508 1315 S 1315 P 102 122 Down Down
135×185×85 5.31×7.28×3.35 BC-AGP-131808 BC-ATP-131808 BC-CGP-131808 BC-CTP-131808 1217 S 1217 G 1217 P 110 159 Down Down
135×185×100 5.31×7.28×3.94 BC-AGP-131810 BC-ATP-131810 BC-CGP-131810 BC-CTP-131810 1217 S 1217 G 1217 P 110 159 Down Down
150×150×90 5.91×5.91×3.54 BC-AGP-151509 BC-ATP-151509 BC-CGP-151509 BC-CTP-151509 1515 S 1515 G 1515 P 123 123 Down Down
150×150×120 5.91×5.91×4.72 BC-AGP-151512 BC-ATP-151512 BC-CGP-151512 BC-CTP-151512 1515 S 1515 G 1515 P 123 123 Down Down
160×210×100 6.30×8.27×3.94 BC-AGP-162110 BC-ATP-162110 BC-CGP-162110 BC-CTP-162110 1520 S 1520 G 1520 P 129 179 Down Down
160×210×130 6.30×8.27×5.12 BC-AGP-162113 BC-ATP-162113 BC-CGP-162113 BC-CTP-162113 1520 S 1520 G 1520 P 129 179 Down Down
160×260×100 6.30×10.24×3.94 BC-AGP-162610 BC-ATP-162610 BC-CGP-162610 BC-CTP-162610 1525 S 1525 G 1525 P 129 229 Down Down
160×260×130 6.30×10.24×5.12 BC-AGP-162613 BC-ATP-162613 BC-CGP-162613 BC-CTP-162613 1525 S 1525 G 1525 P 129 229 Down Down
170×220×100 6.69×8.66×3.94 BC-AGP-172210 BC-ATP-172210 BC-CGP-172210 BC-CTP-172210 1520 S 1520 G 1520 P 129 179 Down Down
170×220×110 6.69×8.66×4.33 BC-AGP-172211 1520 S 1520 G 1520 P 129 179 Down Down
170×270×110 6.69×10.63×4.33 BC-AGP-172711 BC-ATP-172711 BC-CGP-172711 BC-CTP-172711 1525 S 1525 G 1525 P 129 229 Down Down
190×280×100 7.48×11.02×3.94 BC-AGP-192810 BC-ATP-192810 BC-CGP-192810 BC-CTP-192810 1928 S 1928 PG 1928 P 159 249 Down Down
190×280×140 7.48×11.02×5.51 BC-AGP-192814 BC-ATP-192814 BC-CGP-192814 BC-CTP-192814 1928 S 1928 PG 1928 P 159 249 Down Down
200×300×130 7.87×11.81×5.12 BC-AGP-203013 BC-ATP-203013 BC-CGP-203013 BC-CTP-203013 2030 S 2030 P 167 267 Down Down
200×300×150 7.87×11.81×5.91 BC-AGP-203015 BC-ATP-203015 BC-CGP-203015 BC-CTP-203015 2030 S 2030 P 167 267 Down Down
200×300×180 7.87×11.81×7.09 BC-AGP-203018 BC-ATP-203018 BC-CGP-203018 BC-CTP-203018 2030 S 2030 P 167 267 Down Down
210×210×100 8.27×8.27×3.94 BC-AGP-212110 BC-ATP-212110 BC-CGP-212110 BC-CTP-212110 2020 S 2020 G 2020 P 179 179 Down Down
210×210×130 8.27×8.27×5.12 BC-AGP-212113 BC-ATP-212113 BC-CGP-212113 BC-CTP-212113 2020 S 2020 G 2020 P 179 179 Down Down
250×350×150 9.84×13.78×5.91 BC-AGP-253515 BC-ATP-253515 BC-CGP-253515 BC-CTP-253515 2535 S 2535 P 216 316 Down Down
250×350×180 9.84×13.78×7.09 BC-AGP-253518 BC-ATP-253518 BC-CGP-253518 BC-CTP-253518 2535 S 2535 P 216 316 Down Down
280×280×130 11.02×11.02×5.12 BC-AGP-282813 BC-ATP-282813 BC-CGP-282813 BC-CTP-282813 2828 S 2828 P 248 248 Down Down
280×380×130 11.02×14.96×5.12 BC-AGP-283813 BC-ATP-283813 BC-CGP-283813 BC-CTP-283813 2838 S 2838 PG 2838 P 249 348 Down Down
300×300×150 11.81×11.81×5.91 BC-AGP-303015 BC-ATP-303015 BC-CGP-303015 BC-CTP-303015 3030 S 3030 P 262 262 Down Down
300×300×180 11.81×11.81×7.09 BC-AGP-303018 BC-ATP-303018 BC-CGP-303018 BC-CTP-303018 3030 S 3030 P 262 262 Down Down
300×400×120 11.81×15.75×4.72 BC-AGP-304012 BC-ATP-304012 BC-CGP-304012 BC-CTP-304012 3040 S 3040 P 264 364 Down Down
300×400×150 11.81×15.75×5.91 BC-AGP-304015 BC-ATP-304015 BC-CGP-304015 BC-CTP-304015 3040 S 3040 P 264 364 Down Down
300×400×180 11.81×15.75×7.09 BC-AGP-304018 BC-ATP-304018 BC-CGP-304018 BC-CTP-304018 3040 S 3040 P 264 364 Down Down
350×350×150 13.78×13.78×5.91 BC-AGP-353515 BC-ATP-353515 BC-CGP-353515 BC-CTP-353515 3535 S 3535 P 314 314 Down Down
350×350×180 13.78×13.78×7.09 BC-AGP-353518 BC-ATP-353518 BC-CGP-353518 BC-CTP-353518 3535 S 3535 P 314 314 Down Down
350×450×120 13.78×17.72×4.72 BC-AGP-354512 BC-ATP-354512 BC-CGP-354512 BC-CTP-354512 3545 S 3545 P 305 405 Down Down
350×450×160 13.78×17.72×6.30 BC-AGP-354516 BC-ATP-354516 BC-CGP-354516 BC-CTP-354516 3545 S 3545 P 305 405 Down Down
350×450×200 13.78×17.72×7.87 BC-AGP-354520 BC-ATP-354520 BC-CGP-354520 BC-CTP-354520 3545 S 3545 P 305 405 Down Down
400×500×160 15.75×19.69×6.30 BC-AGP-405016 BC-ATP-405016 BC-CGP-405016 BC-CTP-405016 4050 S 4050 P 358 457 Down Down
400×500×200 15.75×19.69×7.87 BC-AGP-405020 BC-ATP-405020 BC-CGP-405020 BC-CTP-405020 4050 S 4050 P 358 457 Down Down
400×600×180 15.75×23.62×7.09 BC-AGP-406018 BC-ATP-406018 BC-CGP-406018 BC-CTP-406018 4060 S 4060 P 357 556 Down Down
400×600×230 15.75×23.62×9.06 BC-AGP-406023 BC-ATP-406023 BC-CGP-406023 BC-CTP-406023 4060 S 4060 P 357 556 Down Down
530×630×185 20.87×24.80×7.28 BC-AGP-506018 BC-ATP-506018 BC-CGP-506018 BC-CTP-506018 5060 S 5060 P 460 560 Down Down
530×630×255 20.87×24.80×10.04 BC-AGP-506025 BC-ATP-506025 BC-CGP-506025 BC-CTP-506025 5060 S 5060 P 460 560 Down Down
530×730×185 20.87×28.74×7.28 BC-AGP-507018 BC-ATP-507018 BC-CGP-507018 BC-CTP-507018 5070 S 5070 P 460 660 Down Down
530×730×255 20.87×28.74×10.04 BC-AGP-507025 BC-ATP-507025 BC-CGP-507025 BC-CTP-507025 5070 S 5070 P 460 660 Down Down
630×830×185 24.80×32.68×7.28 BC-AGP-608018 BC-ATP-608018 BC-CGP-608018 BC-CTP-608018 6080 S 560 752 Down Down
630×830×285 24.80×32.68×11.22 BC-AGP-608028 BC-ATP-608028 BC-CGP-608028 BC-CTP-608028 6080 S 560 752 Down Down
810×1010×350 31.89×39.76×13.78 BC-CGP-8010035 80100 S Down Down
1010×1210×350 39.76×47.64×13.78 BC-CGP-10012035 100120 S Down Down
