1. Material : Nickel-plated brass
2. Seal : NBR
**Dimensions and specifications are subject to change without notice.

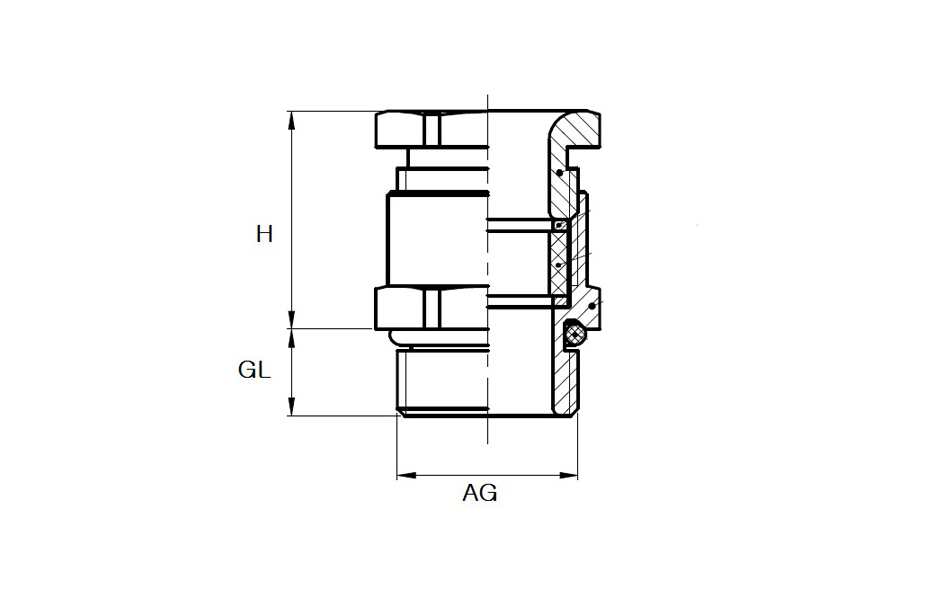

Model and Size
| Model |
Dimension |
File |
| Model |
Thread |
Cable ø(mm) |
GL(mm) |
H(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-PKM-P7 |
PG7 |
6~8 |
6 |
16.1 |
15 |
12.5 |
|
|
|
| BC-PKM-P9 |
PG9 |
8~10 |
7 |
17 |
17 |
15.2 |
|
|
|
| BC-PKM-P11 |
PG11 |
10~12 |
7 |
18 |
20 |
18.6 |
|
|
|
| BC-PKM-P13.5 |
PG13.5 |
12~14 |
7 |
19.5 |
24 |
20.4 |
|
|
|
