1. Material : Polyamide(PA)
2. Seal : NBR
3. O-ring : NBR
4. IP rating : IP66/67
5. Color : Grey, Dark Grey, Black
**Dimensions and specifications are subject to change without notice.

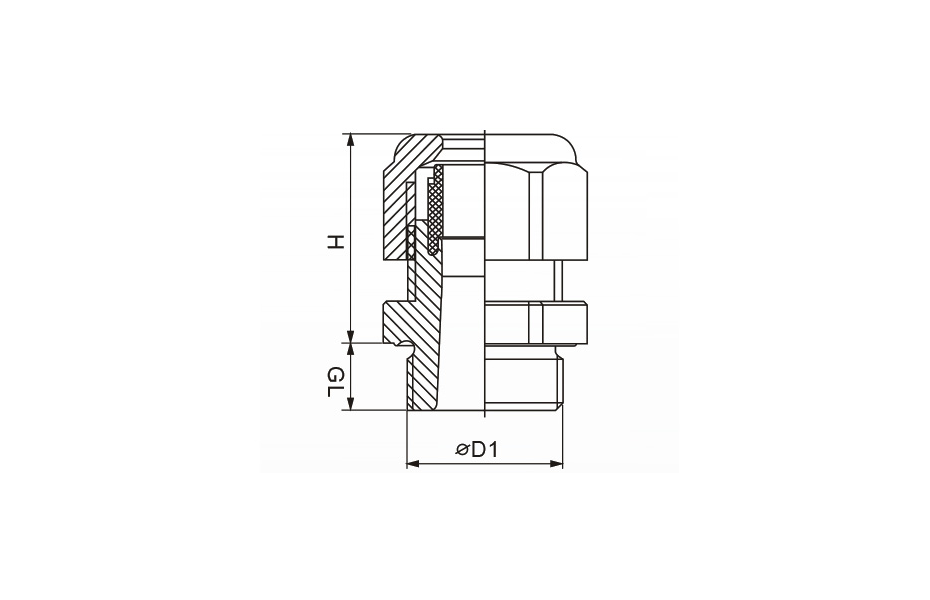

Model and Size
| Model |
Dimension |
File |
| Gray |
Dark Gray |
Black |
Thread |
Cable ø(mm) |
H(mm) |
GL(mm) |
W(mm) |
D1(mm) |
DWG |
3D |
PDF |
| BC-M12-G |
BC-M12-D |
BC-M12-B |
M12x1.5 |
4~6.5 |
20 |
9 |
16 |
12 |
|
|
|
| BC-M16-G |
BC-M16-D |
BC-M16-B |
M16x1.5 |
4.5~8.5 |
24 |
9 |
19 |
16 |
|
|
|
| BC-M18-G |
BC-M18-D |
BC-M18-B |
M18x1.5 |
5~10 |
25 |
9 |
22 |
18 |
|
|
|
| BC-M20-G |
BC-M20-D |
BC-M20-B |
M20x1.5 |
6~11 |
29 |
10 |
24 |
20 |
|
|
|
| BC-M22-G |
BC-M22-D |
BC-M22-B |
M22x1.5 |
8~13 |
29 |
10 |
27 |
22 |
|
|
|
| BC-M24-G |
BC-M24-D |
BC-M24-B |
M24x1.5 |
12~15 |
30 |
10 |
27 |
24 |
|
|
|
| BC-M25-G |
BC-M25-D |
BC-M25-B |
M25x1.5 |
13~18 |
33 |
12 |
33 |
25 |
|
|
|
| BC-M27-G |
BC-M27-D |
BC-M27-B |
M27x1.5 |
13~18 |
35 |
12 |
32 |
27 |
|
|
|
| BC-M30-G |
BC-M30-D |
BC-M30-B |
M30x1.5 |
16~21 |
39 |
12 |
35 |
30 |
|
|
|
| BC-M32-G |
BC-M32-D |
BC-M32-B |
M32x1.5 |
16~21 |
40 |
12 |
36 |
32 |
|
|
|
| BC-M36-G |
BC-M36-D |
BC-M36-B |
M36x1.5 |
18~25 |
41 |
12 |
42 |
36 |
|
|
|
| BC-M40-G |
BC-M40-D |
BC-M40-B |
M40x1.5 |
20~27 |
41 |
15 |
46 |
40 |
|
|
|
| BC-M50-G |
BC-M50-D |
BC-M50-B |
M50x1.5 |
30~38 |
51 |
18 |
60 |
50 |
|
|
|
| BC-M63-G |
BC-M63-D |
BC-M63-B |
M63x1.5 |
37~44 |
54 |
18 |
68 |
63 |
|
|
|
