Push button box

1. BOXCO's pushbutton enclosure is no need additional machining when you install 22, 25 or 30mm push button and switches.
2. Our pushbutton switch box is made from ABS.
3. Switch boxes have 1,2 or 3 push button entries and it has 22mm molded knockouts in base for easy installation.


**Dimensions and specifications are subject to change without notice.

Specification

Temperature range
ABS : - 40 ~ + 70℃ | Polycarbonate(PC) : - 40 ~ + 110℃
Flammability Rating
ABS : 94-HB | Polycarbonate(PC) : 94-V-0, 5VA, HB

Model and Size

Size(included cover) Model Dimension File
W×L×H
(mm)
W×L×H
(inch)
Yellow Cover Red Cover Inner
Height

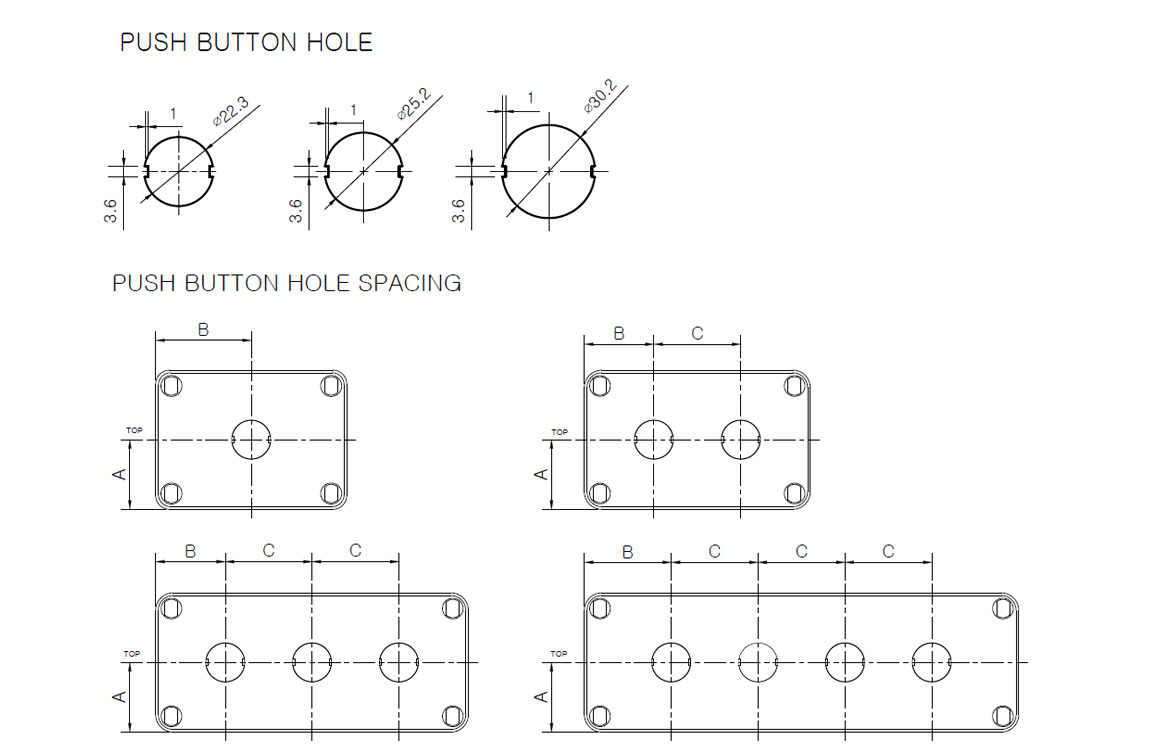

No of Holes A B C DWG 3D PDF
80×110×70 3.15×4.33×2.76 BC-AYS-081107-2201 BC-ARS-081107-2201 57 22 1 40 55
80×110×85 3.15×4.33×3.35 BC-AYS-081108-2201 BC-ARS-081108-2201 72 22 1 40 55
80×130×70 3.15×5.12×2.76 BC-AYS-081307-2202 BC-ARS-081307-2202 57 22 2 40 40 50
80×130×85 3.15×5.12×3.35 BC-AYS-081308-2202 BC-ARS-081308-2202 72 22 2 40 40 50
80×180×70 3.15×7.09×2.76 BC-AYS-081807-2203 BC-ARS-081807-2203 57 22 3 40 40 50
80×180×85 3.15×7.09×3.35 BC-AYS-081808-2203 BC-ARS-081808-2203 72 22 3 40 40 50
80×250×70 3.15×9.84×2.76 BC-AYS-082507-2204 BC-ARS-082507-2204 57 22 4 40 50 50
80×250×85 3.15×9.84×3.35 BC-AYS-082508-2204 BC-ARS-082508-2204 72 22 4 40 50 50
80×110×70 3.15×4.33×2.76 BC-AYS-081107-2501 BC-ARS-081107-2501 57 25 1 40 55
80×110×85 3.15×4.33×3.35 BC-AYS-081108-2501 BC-ARS-081108-2501 72 25 1 40 55
80×130×70 3.15×5.12×2.76 BC-AYS-081307-2502 BC-ARS-081307-2502 57 25 2 40 40 50
80×130×85 3.15×5.12×3.35 BC-AYS-081308-2502 BC-ARS-081308-2502 72 25 2 40 40 50
80×180×70 3.15×7.09×2.76 BC-AYS-081807-2503 BC-ARS-081807-2503 57 25 3 40 40 50
80×180×85 3.15×7.09×3.35 BC-AYS-081808-2503 BC-ARS-081808-2503 72 25 3 40 40 50
80×250×70 3.15×9.84×2.76 BC-AYS-082507-2504 BC-ARS-082507-2504 57 25 4 40 50 50
80×250×85 3.15×9.84×3.35 BC-AYS-082508-2504 BC-ARS-082508-2504 72 25 4 40 50 50
80×110×70 3.15×4.33×2.76 BC-AYS-081107-3001 BC-ARS-081107-3001 57 30 1 40 50
80×110×85 3.15×4.33×3.35 BC-AYS-081108-3001 BC-ARS-081108-3001 72 30 1 40 55
80×130×70 3.15×5.12×2.76 BC-AYS-081307-3002 BC-ARS-081307-3002 57 30 2 40 40 50
80×130×85 3.15×5.12×3.35 BC-AYS-081308-3002 BC-ARS-081308-3002 72 30 2 40 40 50
80×180×70 3.15×7.09×2.76 BC-AYS-081807-3003 BC-ARS-081807-3003 57 30 3 40 40 50
80×180×85 3.15×7.09×3.35 BC-AYS-081808-3003 BC-ARS-081808-3003 72 30 3 40 40 50
80×250×70 3.15×9.84×2.76 BC-AYS-082507-3004 BC-ARS-082507-3004 57 30 4 40 55 50
80×250×85 3.15×9.84×3.35 BC-AYS-082508-3004 BC-ARS-082508-3004 72 30 4 40 55 50
